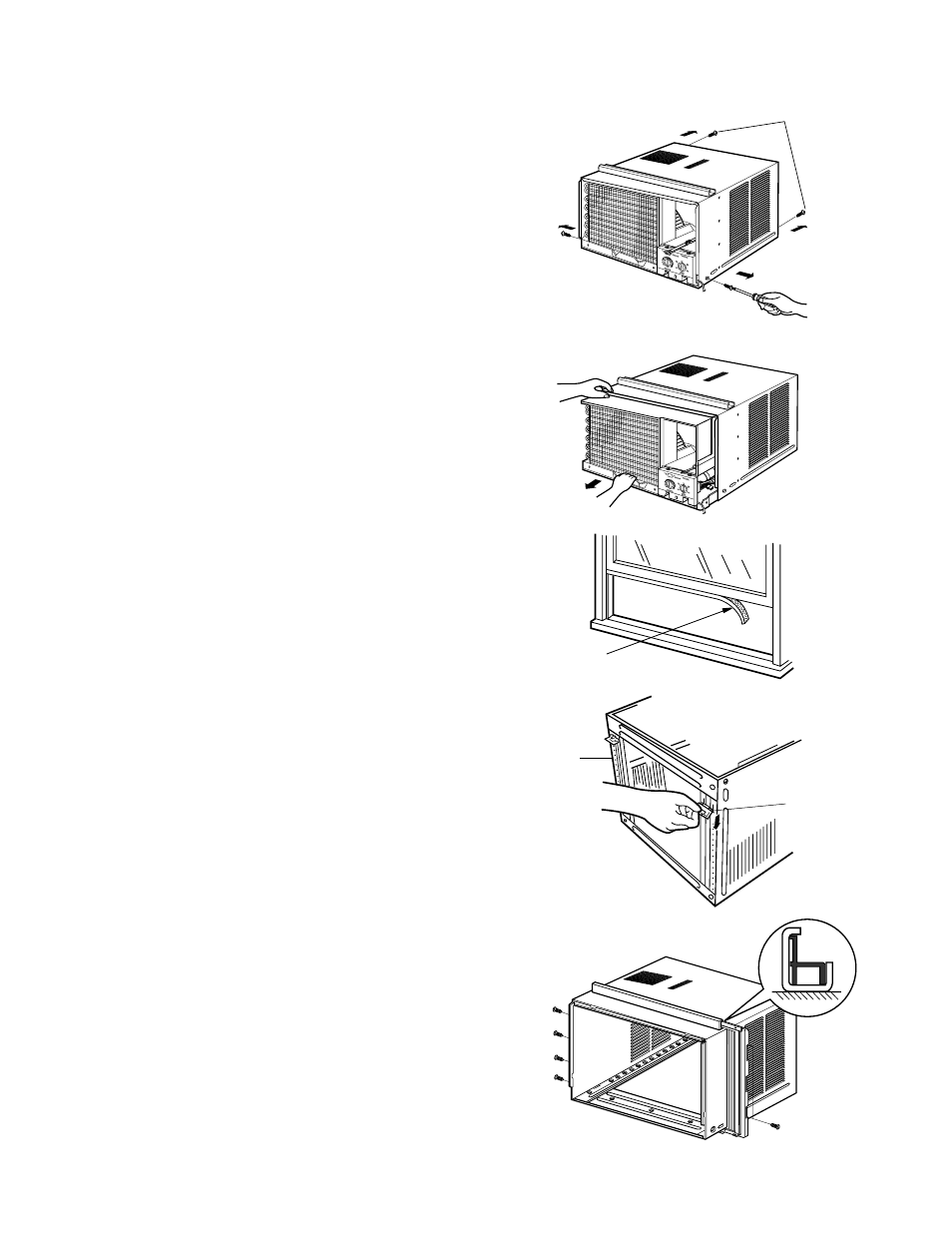

✓ Remove the 2 shipping screws from the back of the
case.
✓ Remove the 2 screws on each side of the case.
Keep these for later use.
✓ Slide the air conditioner from the case by gripping
the base pan handle and pulling forward while
bracing the case.
3.6 BEFORE INSTALLATION...
✓ Cut the window sash seal to the proper length. Peel
off the backing and attach the seal to the underside
of the window sash.
✓ Carefully insert the plastic frame guides into the
bottom of the case on each side.
When the frame guides are set, the arrows should be
pointing toward the back end of the unit.
✓ Insert the frames for the frame curtains into the top
mounting rail and the frame guides. Attach the
frame curtains to the side of the case using 4 type A
screws
—14—
Shipping screws
Window sash seal
Frame
guide
Bottom of
case
(Type A)
(Type A)
3.5 PREPARING THE UNIT FOR INSTALLATION
