3.3 WINDOW REQUIREMENTS
Step 1. These instructions are for a standard double hung
window. You will need to modify them for other
types of windows.
Step 2. The air conditioner can be installed without the
frame curtain if needed to fit in a narrow window.
See the window opening dimensions to the right.
Step 3. All supporting parts must be secured to firm wood,
masonry, or metal.
Step 4. The electric outlet must be within reach of the power
cord.

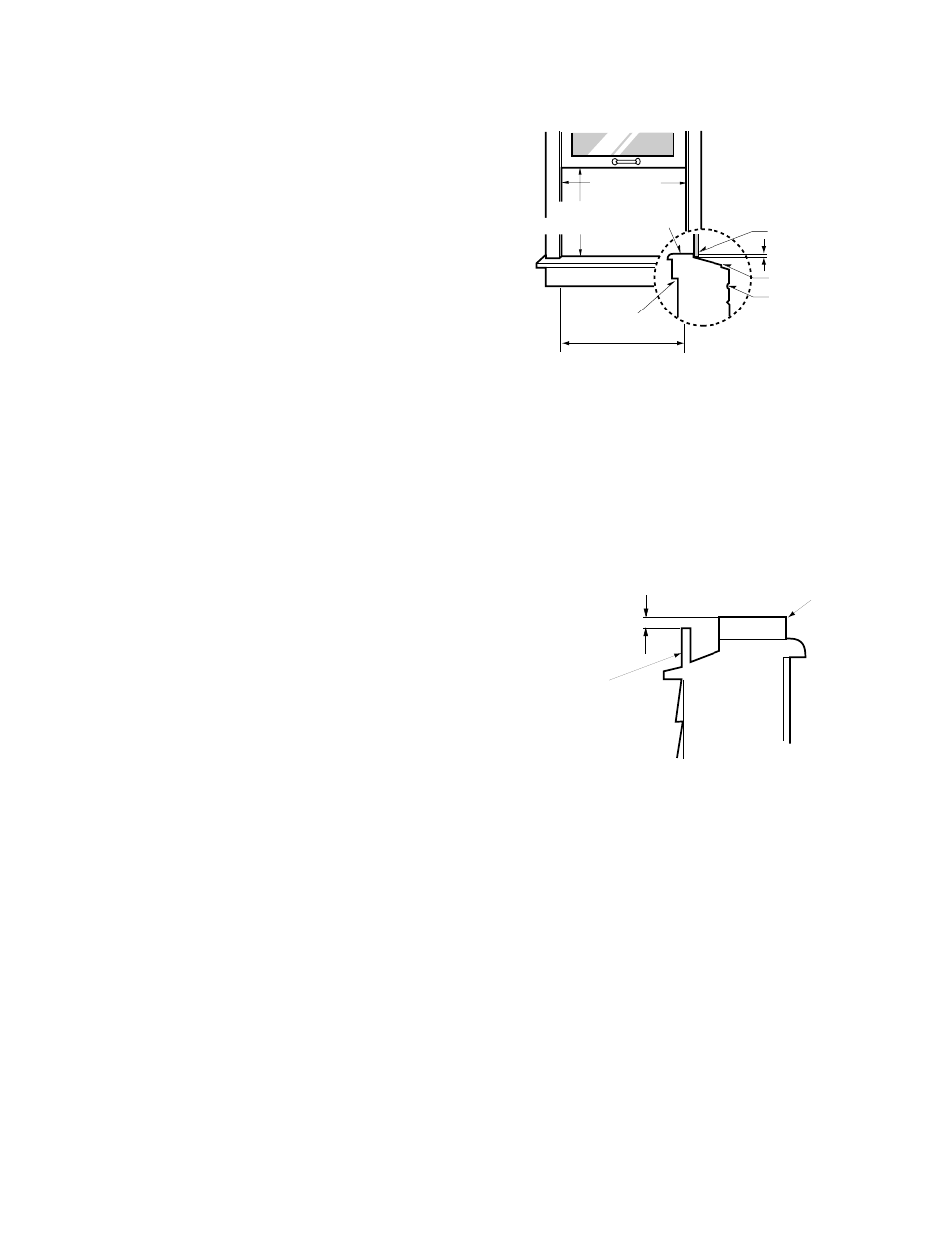

3.4 STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air conditioner to tilt
toward the outside and will keep it from draining properly.
To adjust for this, attach a piece of wood to the stool.
WOOD PIECES–
Width: Minimum 1 1/2"(38mm)
Length: Long enough to fit inside the window frame.
Thickness: To determine the thickness, place a piece of
wood on the stool to make it 1/2" higher than the top of the
storm window frame.
Attach securely with nails or screws provided.
25" to 36"
Stool
Offset
1 /
2
" to 1 1 /
4
"
Sill
Exterior
Interior wall
(Without frame curtain)
(With accordion panels)
Storm window
frame
Wood
Stool
;;
1 / 2 " higher
than frame
18 1 /
2
" min
15" min
(With frame curtain)
