MG2000 Tachometer
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4

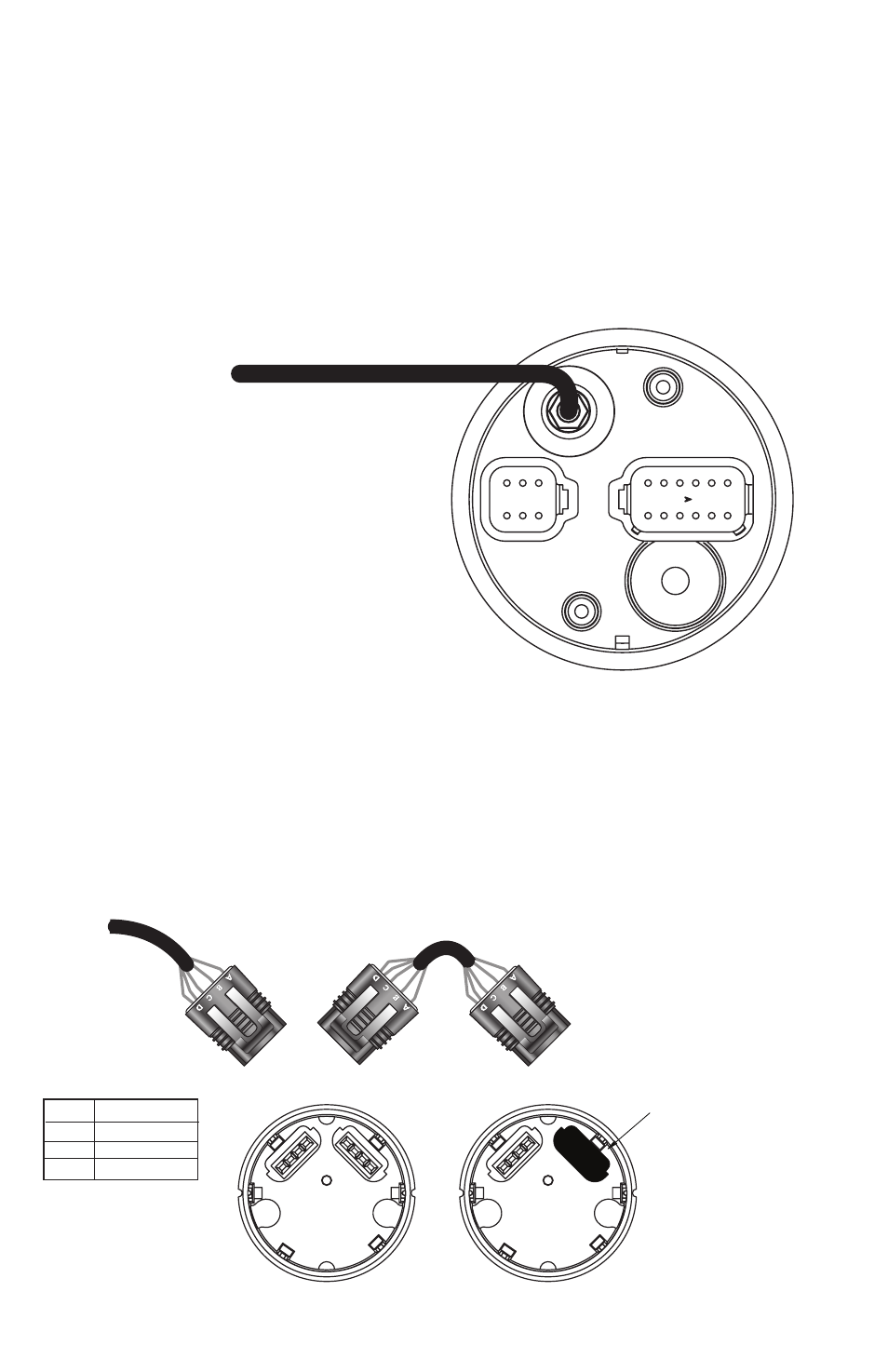

NMEA 2000
Water Pressure
Connection
NMEA2000
Tachometer
Tachometer to 2”
Gauge Connection
NMEA2000
Tachometer
From
Engine
TP1003 Tubing
(or equivalent)
PJ0018
Note: To help reduce
moisture
in the gauges, be sure to
install
plug PJ0018 in all open
connectors
2" Gauges
HN0503
From
HN0389
4- pin connector
Pin A Red
Pin B White
Pin C Green
Pin D Black & Sheild
