Nmea 2000, Pin connector 12- pin connector, Micro-c cable – Faria Instruments NMEA2000 User Manual
Page 38
MG2000 Tachometer
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4

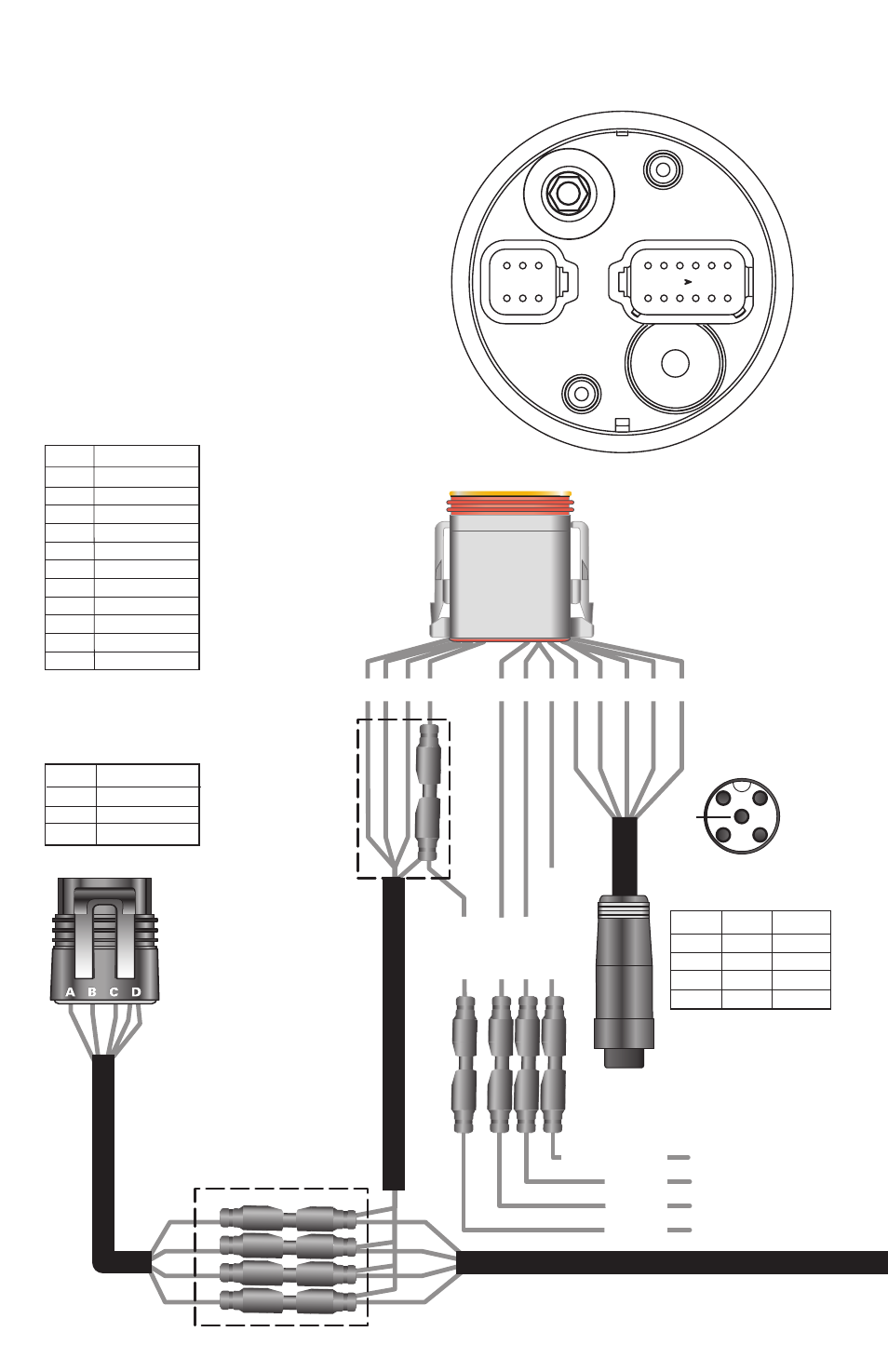

NMEA 2000
Harness HN0389
NMEA2000
Tachometer Cable
4- pin connector
12- pin connector
Pin A Red
Pin B White
Pin C Green
Pin D Black & Sheild
Pin 1 Red
Pin 2 White
Pin 3 Green
Pin 4 Black
Pin 5 Violet
Pin 6 Pink
Pin 7 Blue/ White
Pin 8 Black
Pin 9 Red
Pin 10 Shield
Pin 11 White
Pin 12 Blue
Micro-C Cable
Pin 1 Shield Drain
Pin 2 Red
+V
Pin 3 Black -V
Pin 4 White CAN-H
Pin 5 Blue
CAN-L
1 2 3 4 5 6 7 8 9 10 11 12
2
3
5
4
1
Wire Jacket
Heat
Shrink
Tubing
Heat
Shrink
Tubing
V
iolet
Violet
Pink
Pink
Blue/White
Blue/White
Black
Black
Trim Sender
Fuel Sender
Ignition +14 Vdc
Ground
HN0389 r.C ecr 5629 8/2005
