Furuno GP-1650W User Manual
Page 28
4. INCORPORATION OF DGPS BEACON RECEIVER KIT (for GP-1650W)
20

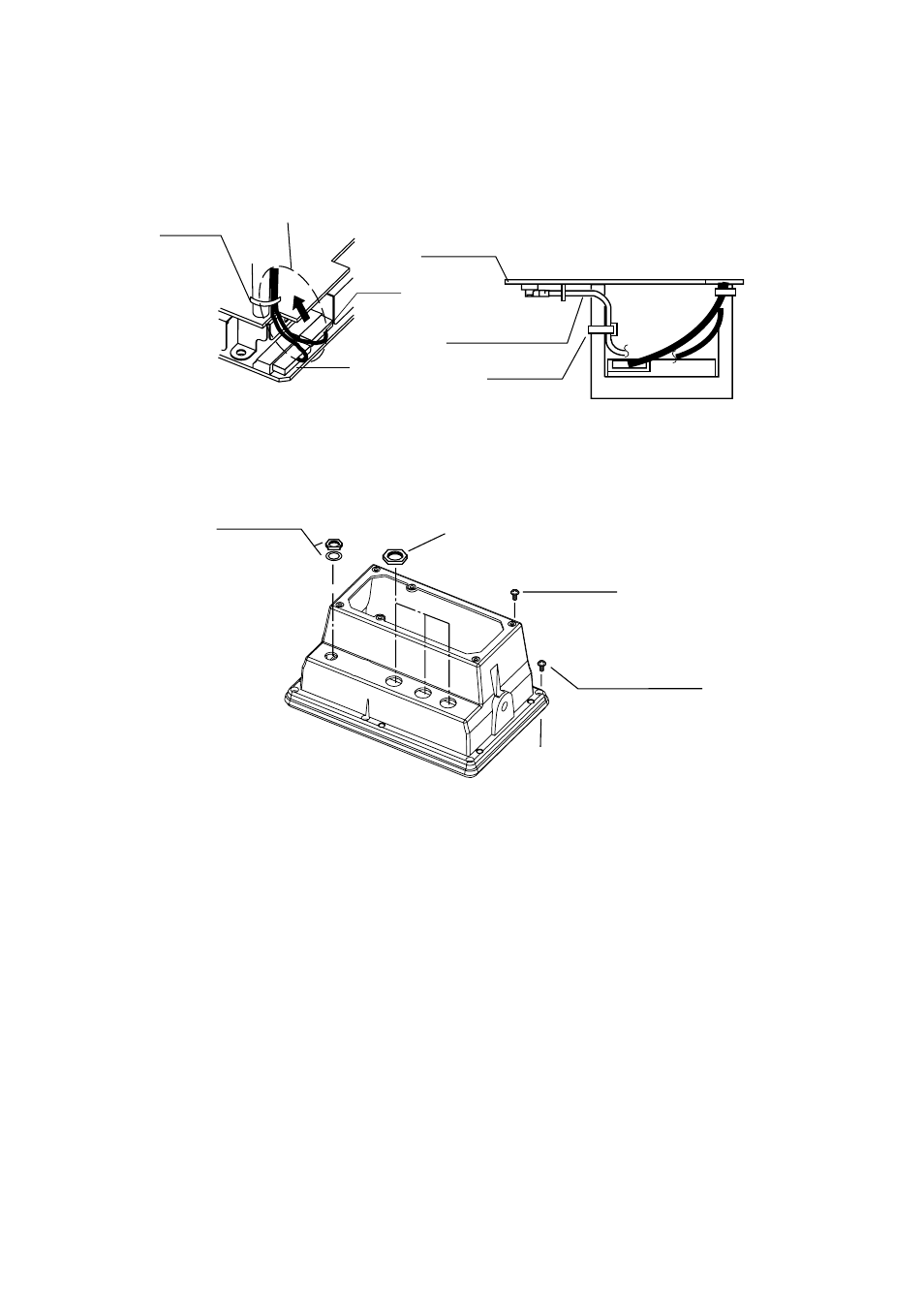

16. Fasten 8P connector cable and 6P connector cable by cable tie as shown in the figure
below. Fasten mini pin coaxial cable by cable tie (CV-100, supplied) as shown in the
figure below.
ANLG board
Cable tie
J8
Mini pin coax. cable
Note: After connecting, pull up cable to remove slack so
as not to pinch the cable between cover panel assembly.
PH8P
J106
PH6P
J107
MAIN board
Cable tie
Attaching cable tie
17. Reassemble the display unit.
Use new screws size 3X12 (supplied).
New screws X 6
Screws X 6
Nut
Nut, washer
Cover assembly
Torque:
1.37~1.57 N·m
Torque:
0.74~0.78 N·m
Torque:
0.74~0.78 N·m
Torque: 0.74~0.78 N·m
Remounting the cover
Note: When reattaching the cover, confirm the following parts are attached.
Shield gasket, cover gasket (See the next page.)
Connector gasket (See the page 15.)
