2.6 Error Display
An error display is generated whenever display data or measured data is abnormal. When
this occurs the corresponding data will be unreliable.
Speed and course (fore-aft, port-starboard, drift angle)
12.3 333
SPD/CSE kt
(1) No data input from
transceiver unit
(2) Ship’s speed error
12.3 333
SPD/CSE
(1) No data input from
transceiver unit
(2) Ship’s speed error
kt
Tide vector, speed, graph and
course plot displays Text and echo level displays
(2) Ship’s speed
error
2.7
12.0
SPEED FORE-AFT
DRIFT ANGLE
SPEED PORT-STBD
13
GT SPEED kt
12.0
2.7
DRIFT kt
DIR °
13
(2) Ship’s speed error
Ship’s speed display Text display

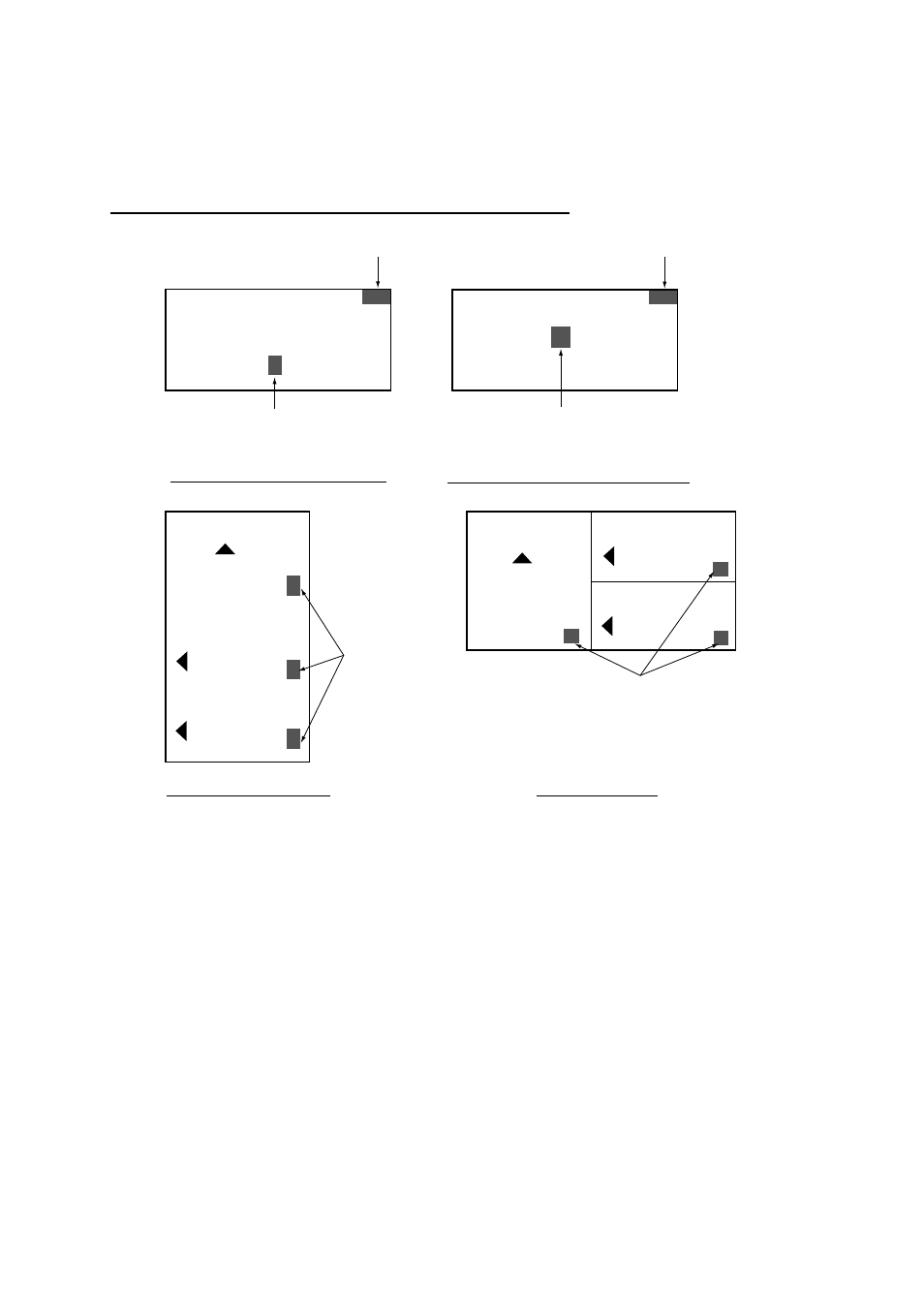

Speed and course error displays
(1) No data is being input from the transceiver unit to the display unit. If this occurs, contact
a FURUNO agent or dealer.
(2) This display appears when the ground tracking echo for ground tracking, reference layer
for water tracking or GPS data from the GPS navigator is abnormal. In this case data is
not reliable.
