Clearing Paper
Jams
6-5 Troubleshooting
Duplex Unit Paper Jams
A paper jam can occur in the duplex unit at any one of the following
locations:
„
Duplex unit
„
Duplex unit return path
„
Under the manual feed plate
If the message:
PAPER JAM DUPLEXER
displays, there is probably a paper jam in one of these three areas.
If your printer has a sorter, use the following procedure to check for
any paper jammed in the duplex unit.
2 &DXWLRQ'RQRWRSHQWKHGXSOH[XQLWFRYHURUWKHVRUWHUIODSZKLOHWKHSULQWHU
LVSURFHVVLQJRUSULQWLQJDSDJH
1 Grasp the handle on the duplex unit cover, and pull down the
cover.
• 1RWH7KHGXSOH[XQLWFRYHUVGLIIHURQWKHELQDQGELQVRUWHUV
0 :$51,1*:KHQUHPRYLQJMDPPHGSDSHUIURPWKHGXSOH[XQLWEHFDUHIXO
7KHPHWDOVHFWLRQLVKRW

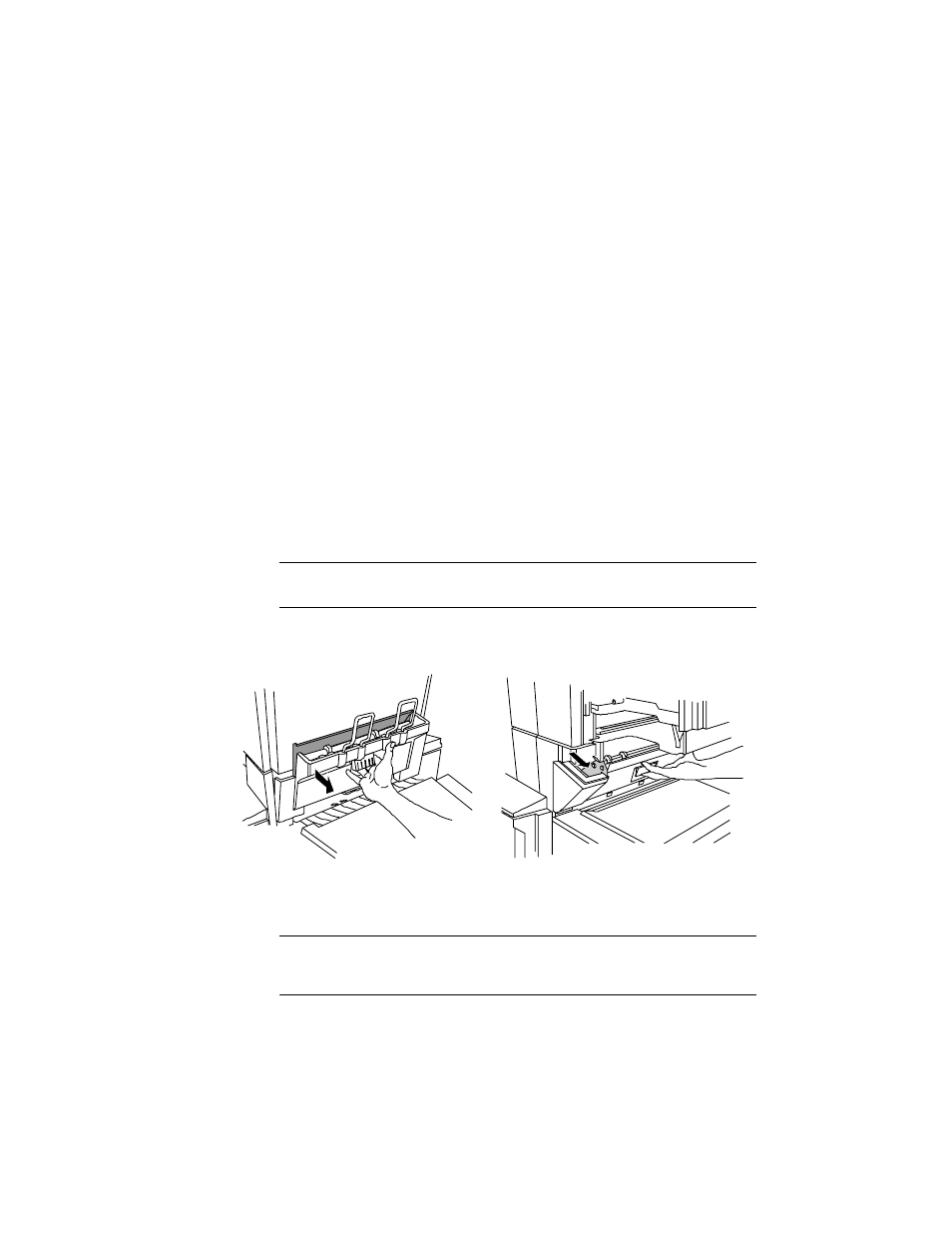

2SHQ'XSOH[&RYHURQD%LQ6RUWHU 2SHQ'XSOH[&RYHURQD%LQ6RUWHU
