4-12
Note: When two memory card interface units are connected via a network, change ID code for the
second unit.
1. Remove the cover and set the IP0 bit of the DIP switch S1 on the CARDCPU board (03P9333)
to ON.
2. Set INIT bit of S1 to ON and turn on the radar. Wait until CR2 starts blinking. DO NOT turn off
the power until CR2 starts blinking.
3. Turn off the power and set INIT bit to OFF.

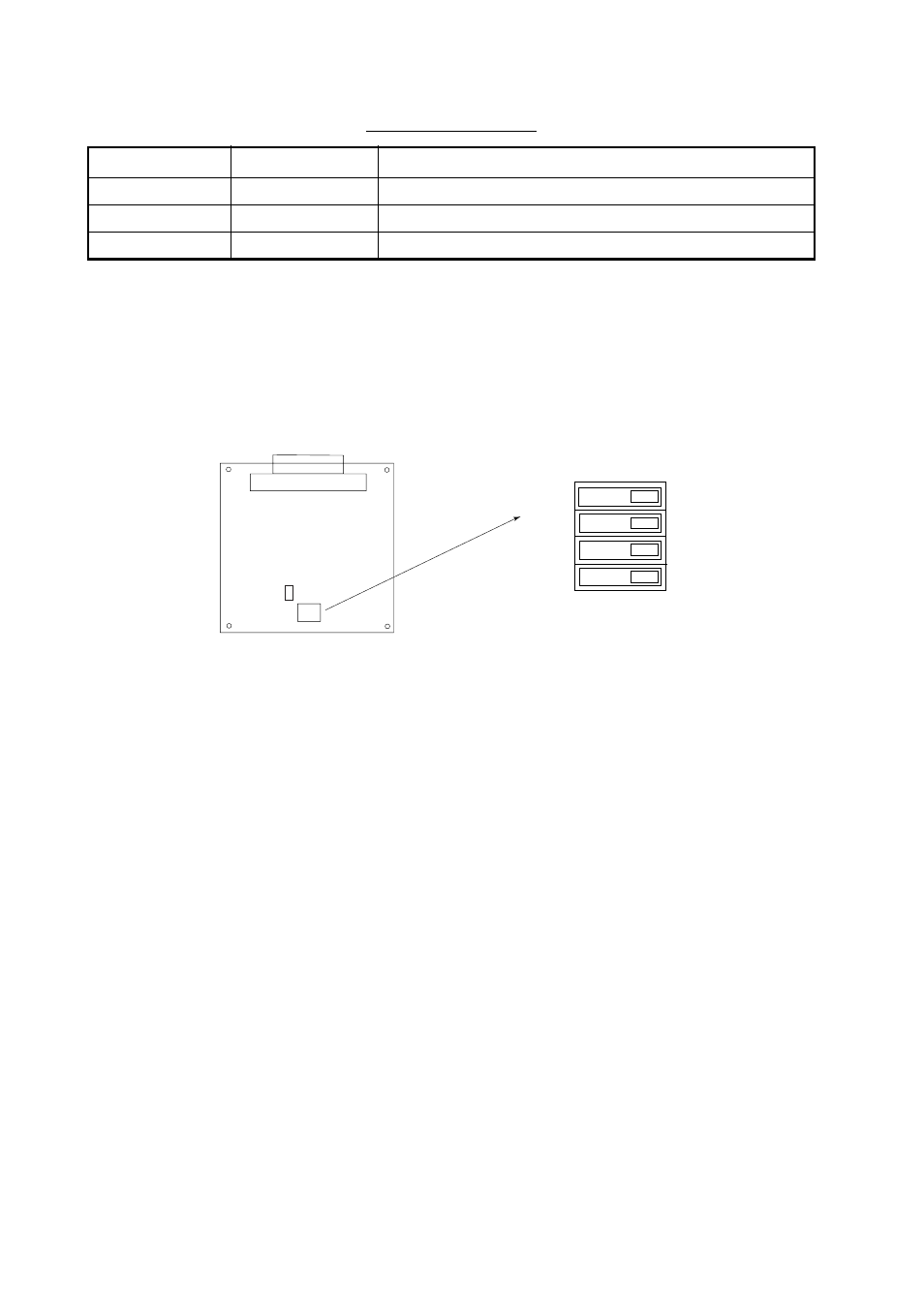

Memory card interface unit, showing location of DIP switch S1
Armored LAN cable kit
Type Code No. Contents
OP03-28900 000-082-658 Cable FR-FTPC-CY (10 m), Modular connector (2 pcs.)
OP03-28910 000-082-689 Cable FR-FTPC-CY (20 m), Modular connector. (2 pcs.)
OP03-28920 000-082-660 Cable FR-FTPC-CY (30 m), Modular connector (2 pcs.)
OFF ON
(Default: all OFF)
IP0
IP1
IP2
INIT
J314
S1
CARDCPU board 03P9333
CR2
