Furuno FAR2167DS-BB - Manual (Page 37)

2-14

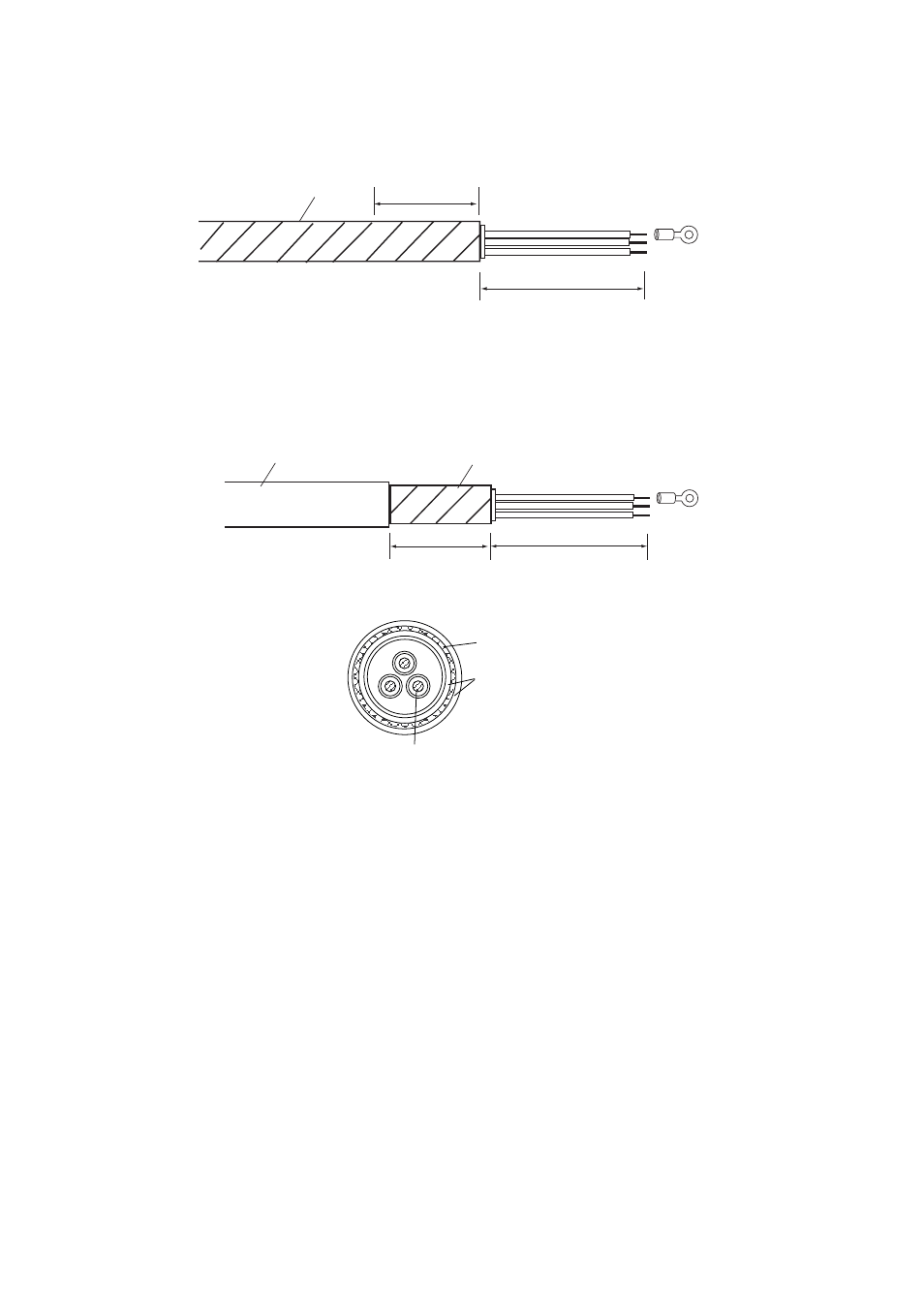

Terminal TB2: cable TPYC-2.5 (for antenna motor)
Terminal TB3: #11-#13, cable TYPC-1.5 (between power control section and processor)
See page 2-5 for sectional views of these cables if using equivalent cables.
Terminal TB3: #1-#3 TPYCY-2.5 (between power control section and antenna)
Terminal TB3: #6, #8, #9 TPYCY-1.5 (between power control section and antenna)
Armor
L: 100 (For TPYC-2.5)
150 (For TPYC-1.5)
L
FV2-4
30: Peel paint
Armor Vinyl sheath
L: 80 (For TPYCY-2.5)
120 (For TPYCY-1.5)
Conductor
S= TPYCY-1.5: 1.5 2 mm, TPYCY-2.5: 2.5 2 mm
φ
= TPYCY-1.5: 1.56 mm, TPYCY-2.5: 2.01 mm
Armor
Sheath
φ
= TYPCY-1.5: 14.5 mm
TPYCY-2.5: 1 5.5 mm
30 L
FV2-4
