Furuno 1935 User Manual
Page 22
1-16

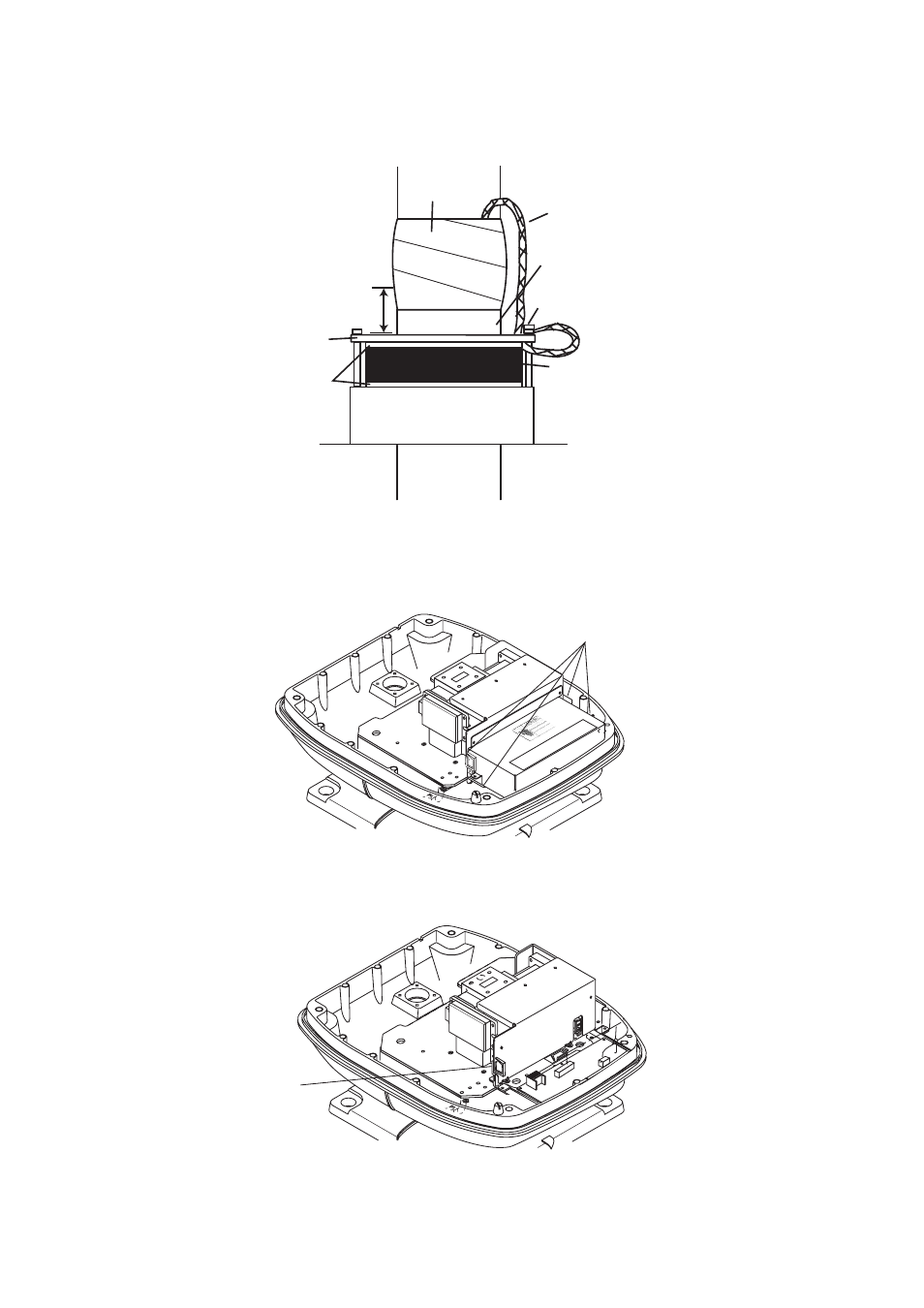

5. Put the signal cable so that no more than 4 cm of the sheath is visible, as shown in the figure
below. Tighten the fixing bolts.
How to fasten signal cable in cable gland
6. Loosen four screws in the figure shown below and open the cover.
Antenna unit chassis, cover opened
7. Put the signal cable through the cable protector.
Antenna unit chassis, cover opened
Sheath
CABLE GLAND
Plate
Gasket
Flat
washer
Bolt
Within 4 cm
Taping
Shield wire
Four screws
Cable
protector
