Page 17
1-11

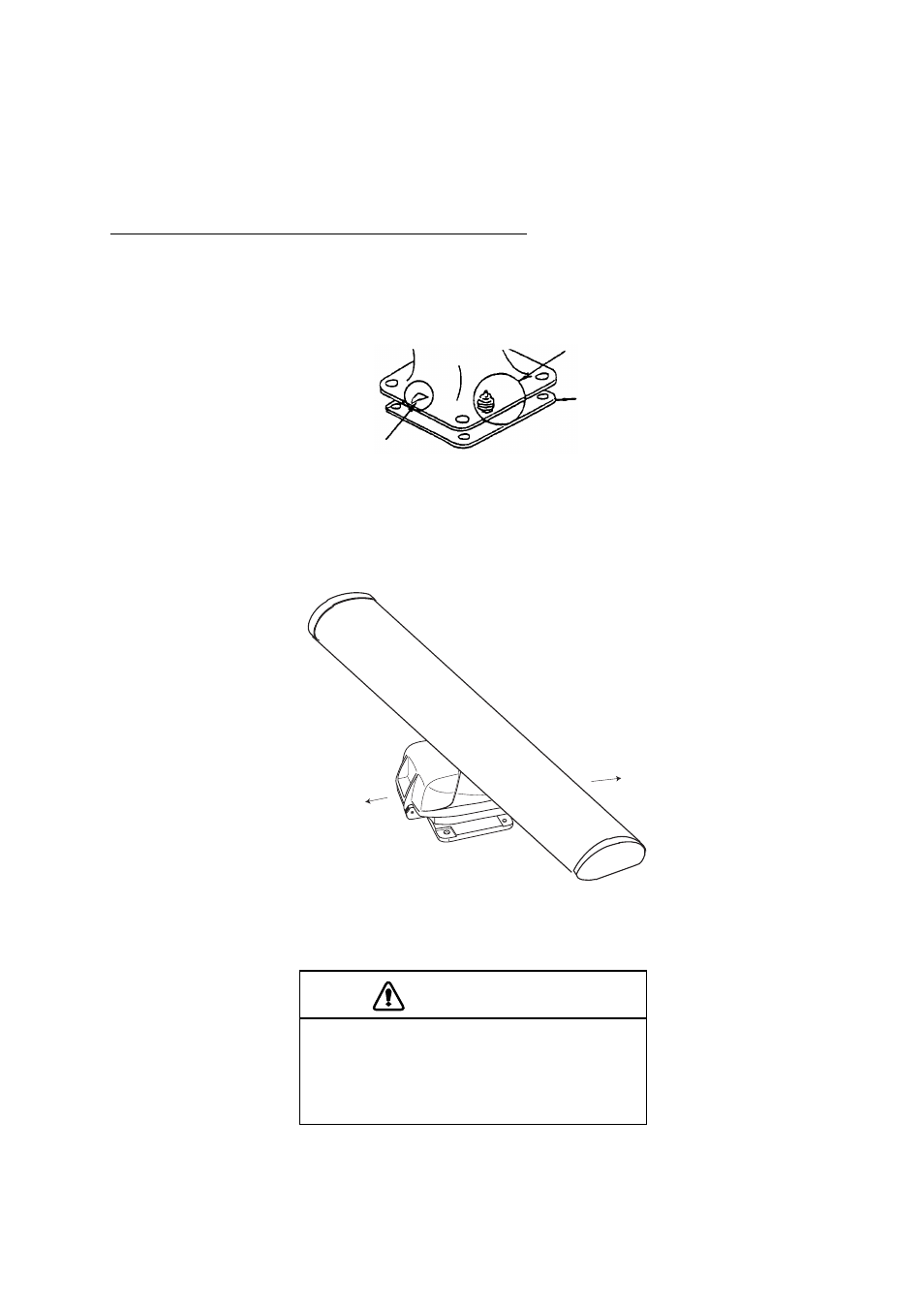

How to install the antenna unit
You can install the antenna unit by one of the two methods shown below.
• Use the outside holes
• Use the inside holes
How to use outside holes of the antenna housing
Use the hex head bolts (supplied) to install the antenna unit as shown in the illustration below.
1. Put the rubber mat (supplied) on the platform.
Location of rubber mat
2. Put the antenna unit on the rubber mat. Align the position of the antenna unit as shown in the
illustratrion below.
Antenna unit
Ground
terminal
Rubber
mat
Bow mark
Stern
Bow
CAUTION
Do not lift the Antenna unit by the
radiator; lift it by the housing.
The radiator may be damaged.
