Furuno 1935 User Manual
Page 13
1-7

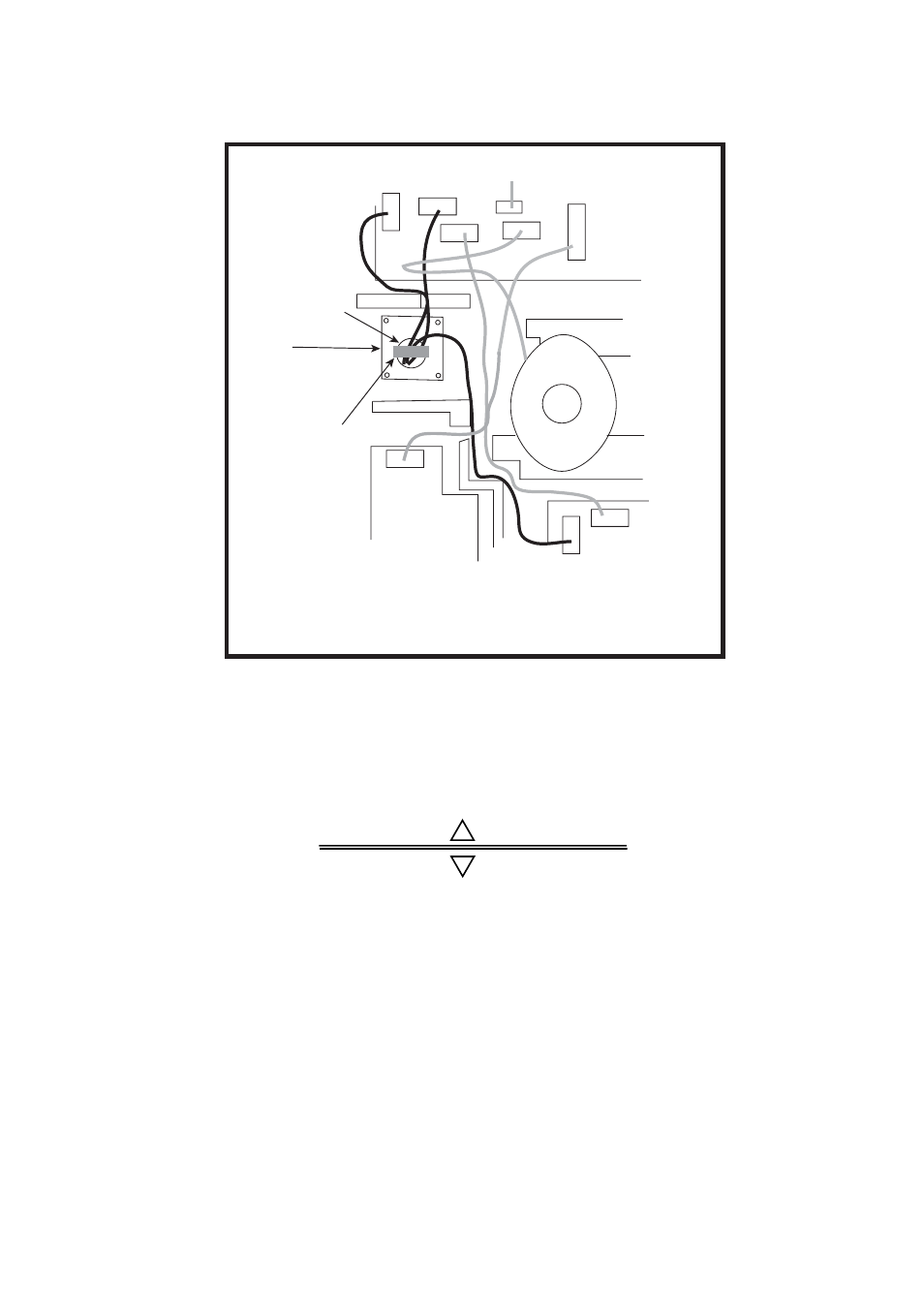

10. Attach the EMC core supplied as shown below.
How to attach EMC core
11.Attach the shield covers. Make sure the cable is not caught by the cover.
12.Attach the radome cover. Align the triangle mark on radome cover with that on radome base.
How to attach the radome cover
13.Fasten the radome bolts.
J806
J805
J803
J804
J802
J801
Motor
J613
J611
J1
EMC core
E04SS251512
(Above cable
clamping
plate)
Cable
entrance
IF9214
IF9214
PTU-9335
MD9208
Cable
clamping plate
Radome cover
Radome base
