FUJITSU MHT2060BH User Manual
Page 58
Theory of Device Operation
4-4 C141-E203-01EN
(4) Controller circuit
Major functions are listed below.
•
Serial-ATA interface control and data transfer control
•
Data buffer management
•
Sector format control
•
Defect management
•
ECC control
•
Error recovery and self-diagnosis

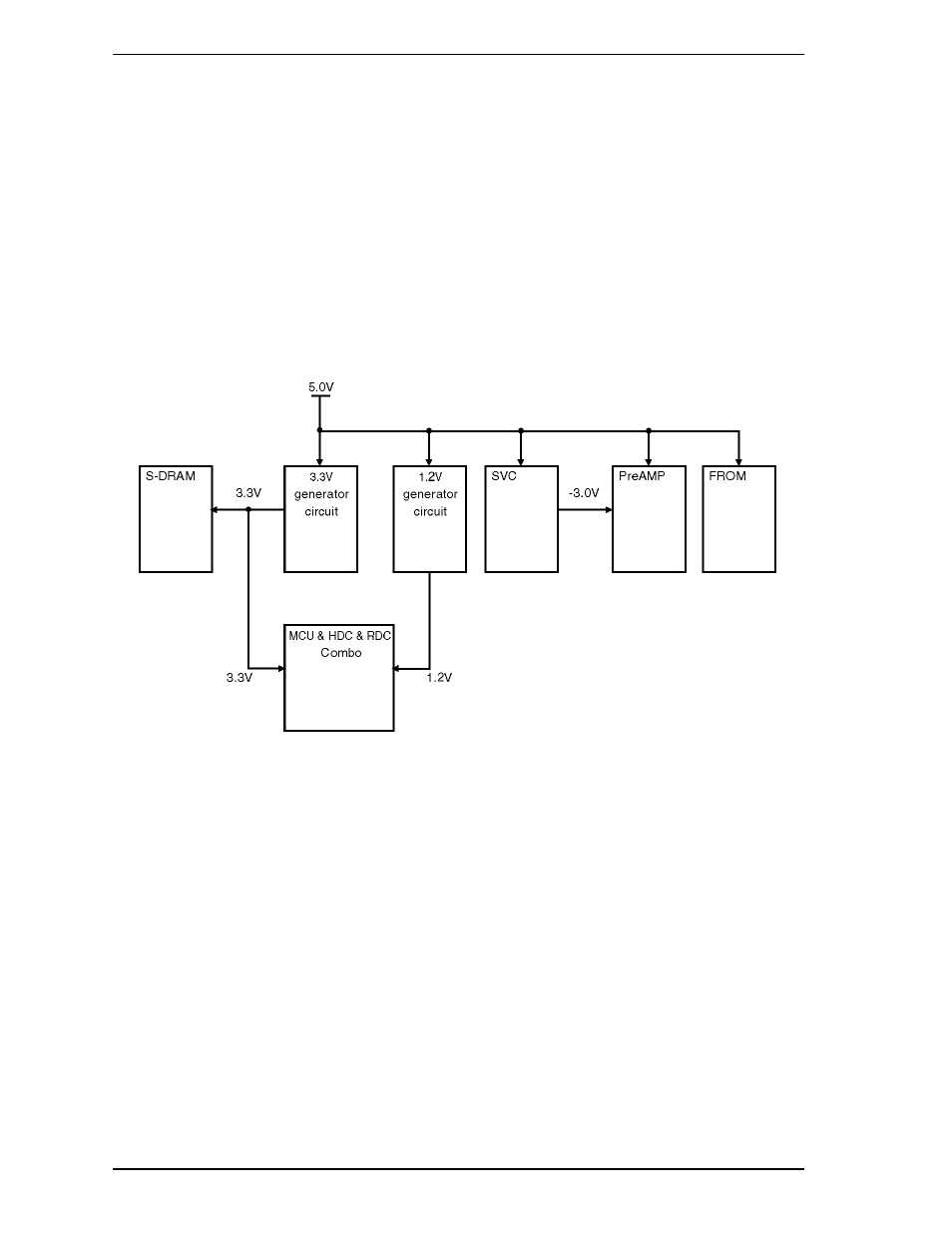

Figure 4.1 Power Supply Configuration
