35

■

Installing and Removing the Hard Disk Drives

Open the casing (see "Opening the casing").

Removing a hard disk drive

1

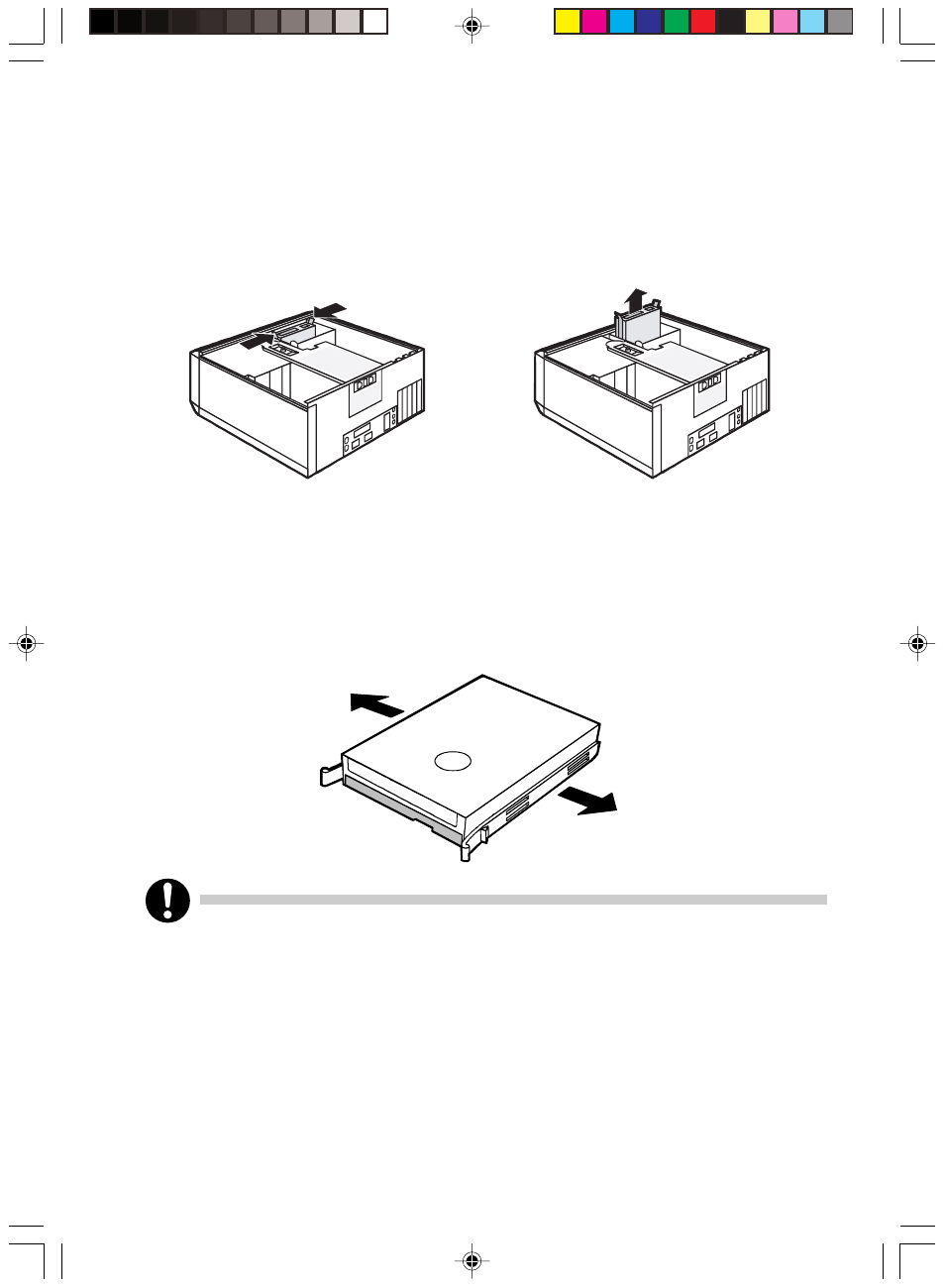

Press the EasyChange rails mounted on the hard disk drive together somewhat (1) and

pull the hard disk drive out of the case in the direction of the arrow (2).

2

Disconnect all cables connected to the drive (data cable, power supply cable).

1

1

2

It may be necessary to modify the entry for the drive in the BIOS Setup.

3

Connect the cables to the hard disk drive.

4

Close the casing (see "Closing the casing").
