6

Various dust created by power sanding, sawing,

grinding, drilling and other construction activities contains

chemicals known (to the State of California) to cause cancer,

birth defects or other reproductive harm. Some examples

of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry

products, and

• arsenic and chromium from chemically-treated lumber.
The risk from these exposures varies, depending on how

often you do this type of work.
To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment,

such as dust masks that are specially designed to filter out

microscopic particles.

Technical data

Power

12 A

Voltage

~ 120 V, 60 Hz

No load speed

10 000 - 22 500 rpm

Quick height adjustment

70 mm (2.76“)

Fine height adjustment

8 mm (0.31“)

Router diameter, max.

63 mm

Drive shaft connection of the spindle

M 22 x 1

Weight

4.5 kg (9.9 lbs)

Safety

acc. to IEC 745, UL 745, CSA C22.2 No. 745

Symbols

V

Volts

A

Amperes

Hz

Hertz

~

Alternating current

n

0

No load speed

Class II Construction

rpm

Revolutions or reciprocation per minute

Ø

Diameter

Use for intended purpose

The routers are designed for routing wood, plastics and similar

materials. Aluminium and plasterboard can also be processed

with corresponding cutters such as are listed in the Festool

catalogues.

The user is liable for damages and injuries due

to incorrect usage.

Electrical connection

The network voltage must conform to the voltage indicated

on the rating plate. A 16 A safety fuse (for 120 V) or a

corresponding protective circuit-breaker is required.
See Fig. 2 for connection and disconnection of the power cable.

Always switch the machine off before connecting

or disconnecting the power cable!

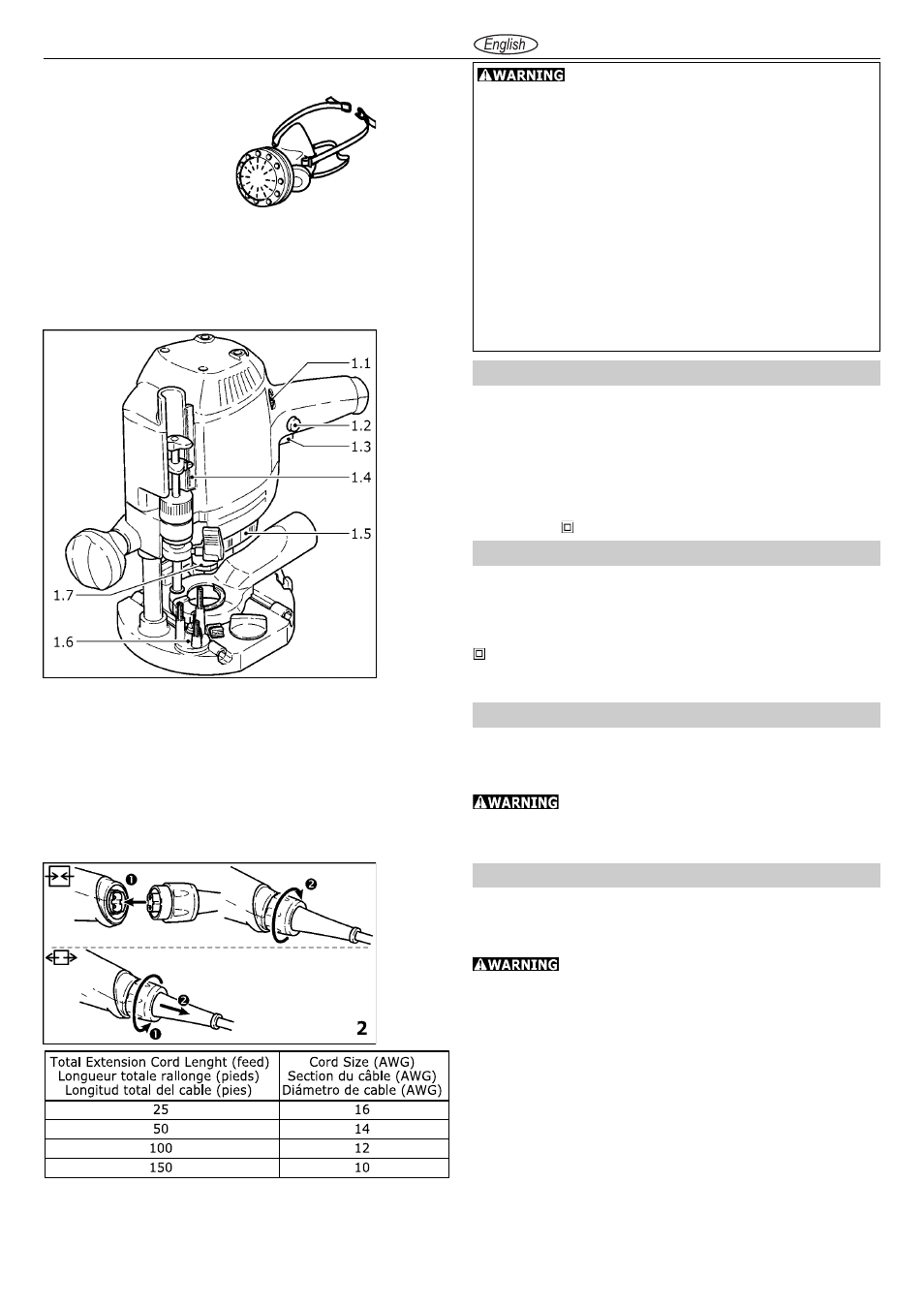

1.1 Speed controller / Régulateur de vitesse de rotation /

Regulador del número de revoluciones

1.2 Locking button / Bouton de blocage / Botón de bloqueo
1.3 On/Off switch / Interrupteur marche/arrêt / Interruptor

de conexión/desconexión

1.4 Scale / Graduation / Escala
1.5 Spindle stop / Dispositif d’arrêt de l’axe / Dispositivo de

bloqueo del husillo

1.6 Pivoted turret stop / Butée tournante / Tope de revólver
1.7 Collet nut / L’écrou de la pince de serrage / Tuerca de la pinza

Extension cable

If an extension cable is required, it must have a sufficient

cross-section so as to prevent an excessive drop in voltage or

overheating. An excessive drop in voltage reduces the output

and can lead to failure of the motor. The table beside shows

you the correct cable diameter as a function of the cable length

for the router OF 1400 EQ. Use only U.L. and CSA listed

extension cables. Never use two extension cables together.

Instead, use one long one.
Note: The lower the AWG number, the stronger the cable.
