Care and cleaning
FOUR FUNC
TION MODELS
MODELS
WITH CER
AMIC GLASS C
OOK
T
O
P
Replacing the middle and inner
panes of glass
1 Make sure the door is locked open (see
Figs. 81a - 81c).
2 Replace the middle pane:
Check that the four rubber pads are in
place (“M” in Fig. 83a).
Check that you are holding the pane the
correct way. You should be able to read
the wording on it as it faces you.
Gently insert the top edge of the pane
into the top clamps (arrow 1 in Fig.
83b), then lower the pane and insert the
bottom edge into the bottom clamps
(arrow 2 in Fig. 83b); and then slide the
pane into position (Fig. 83c).
1
2
1

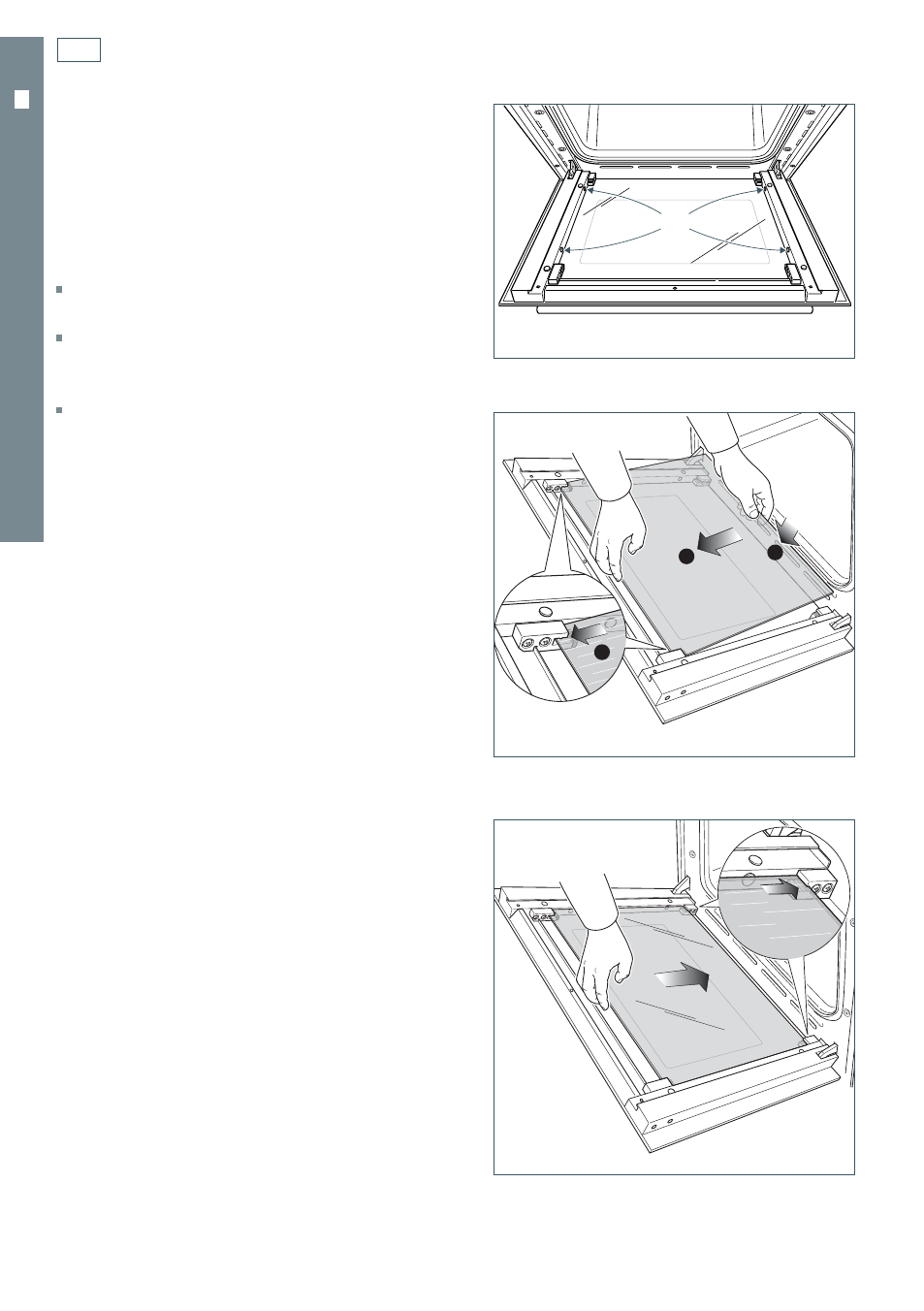

Fig.83a
Fig.83b
Fig.83c
M
