2. WIRING
This unit outputs position and speed to external equipment, mainly to NAVnet equipment. To
connect to NAVnet equipment, connect waterproof connector directly to NAVnet equipment.
For connection to other equipment, use a junction box (local supply), which provides seven
terminals. A ten meter cable is attached to this unit. If the distance between this unit and
monitor more than 10 m, use optional extension cable (10 m). Up to four extension cables
can be connected serially.

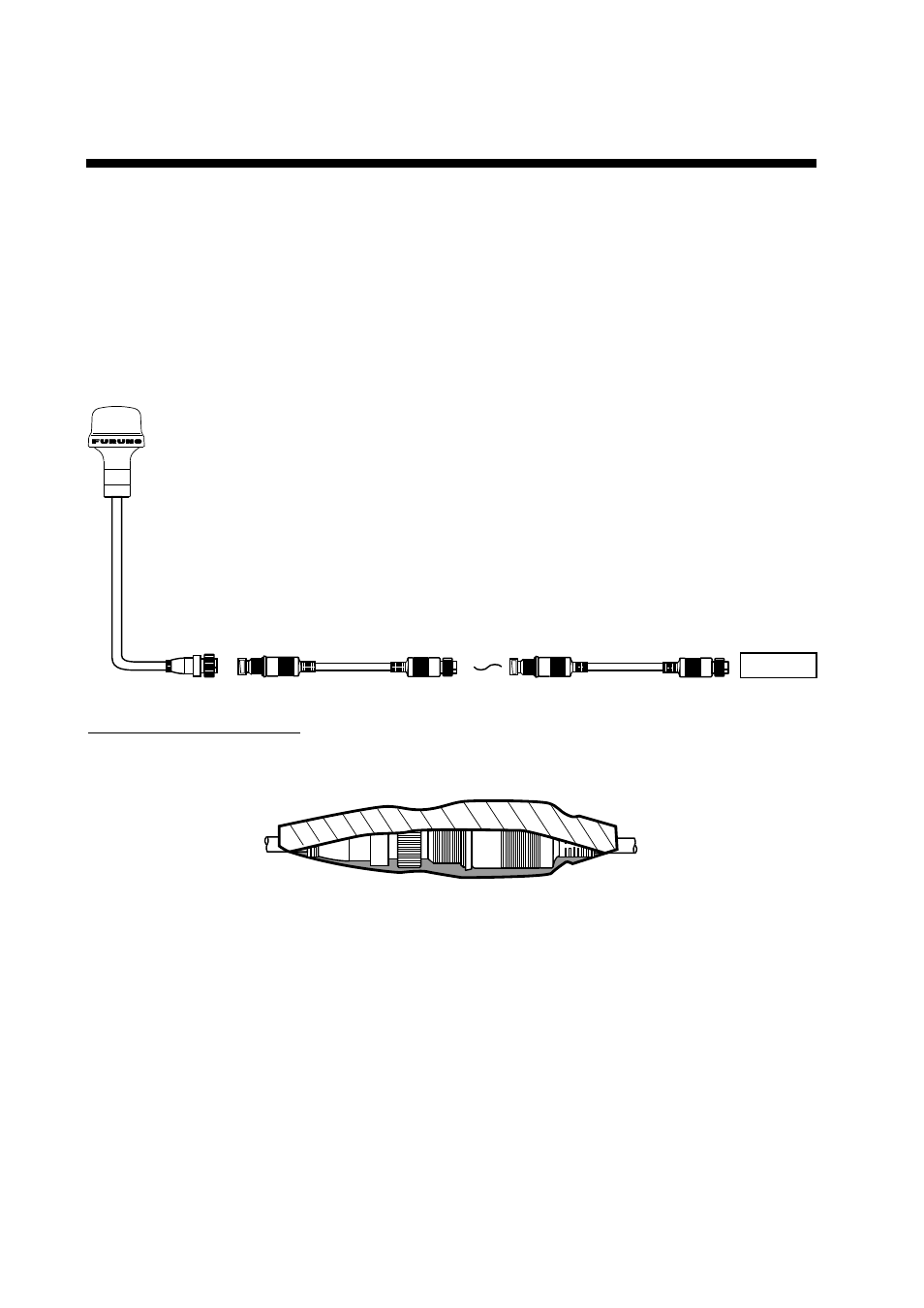

Connecting to FURUNO NAVnet equipment
Total length: Max. 50 m
10 m
10 m
Cable assy. (option)
MJ-A7SPF/SRMD-100
w/cable
NAVnet
Waterproofing connector
If you use the optional extension cable(s), wrap connector(s) with vulcanizing tape and then
vinyl tape for waterproofing. Bind the tape end with cable-tie.
