4.1 Mounting Requirements
C141-E237 4-3
4.1.3
Notes on mounting
Damage
Never remove any labels from the drive or deface them in any way.
(1) Mounting screw
Use No.6-32UNC-2B metric
(2)
Mounting frame structure
Special attention must be given to mount the HDDs as follows.
a) Use the frame with an embossed structure, or the like. Mount the HDDs with making a gap
of 2.5 mm or more between the HDDs and the frame of the system.
b) As shown in Figure 4.3, the inward projection of the screw from the HDD frame wall at the
corner must be 5.0 mm or less.
c) Tightening torque of screw must be secured with 0.59 N·m (6 kgf·cm)
±12%.
d) Impact caused by the electric screwdriver must be within the drive specifications.
e) Must be handled on an anti-static mat.

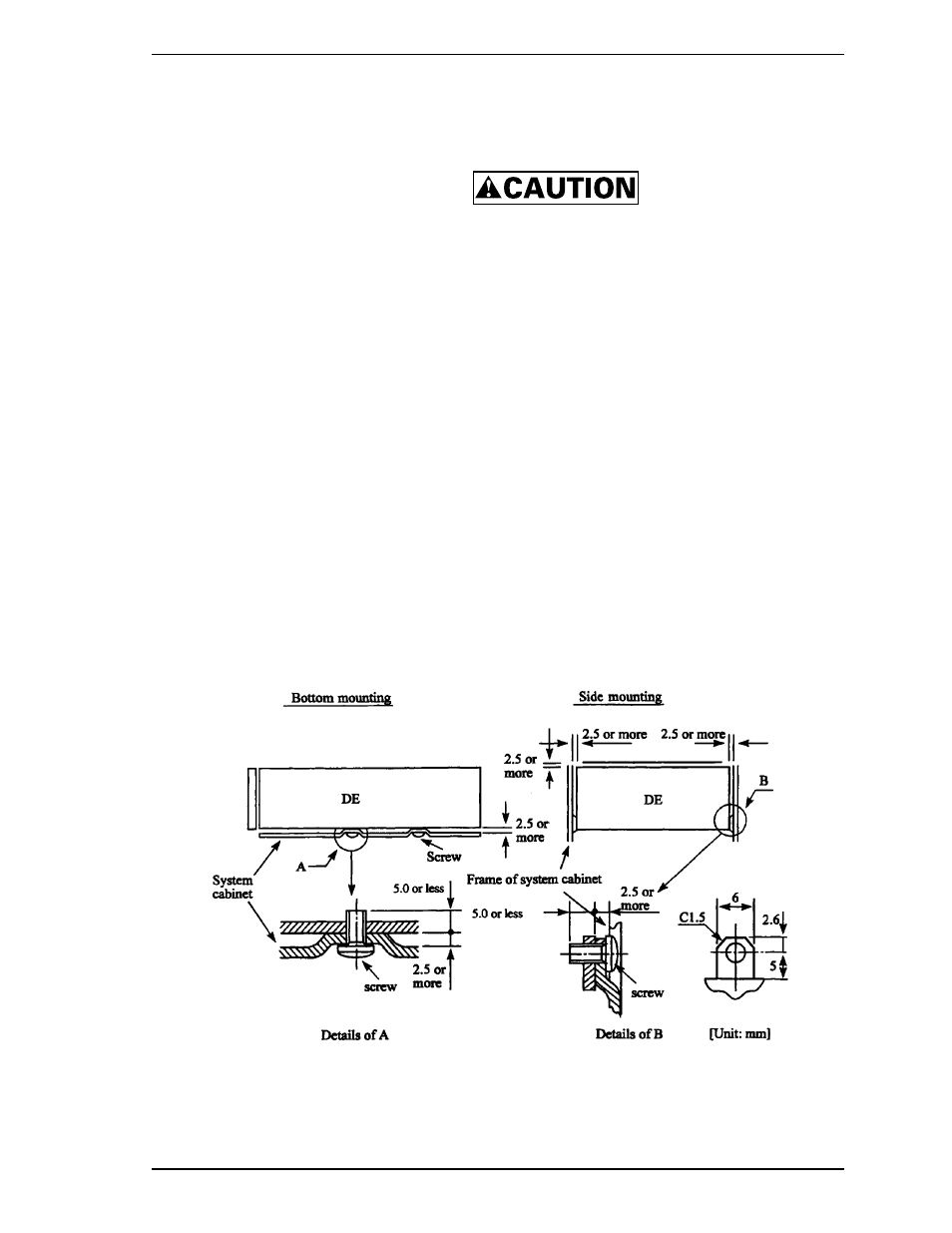

Figure 4.3 Mounting frame structure example
