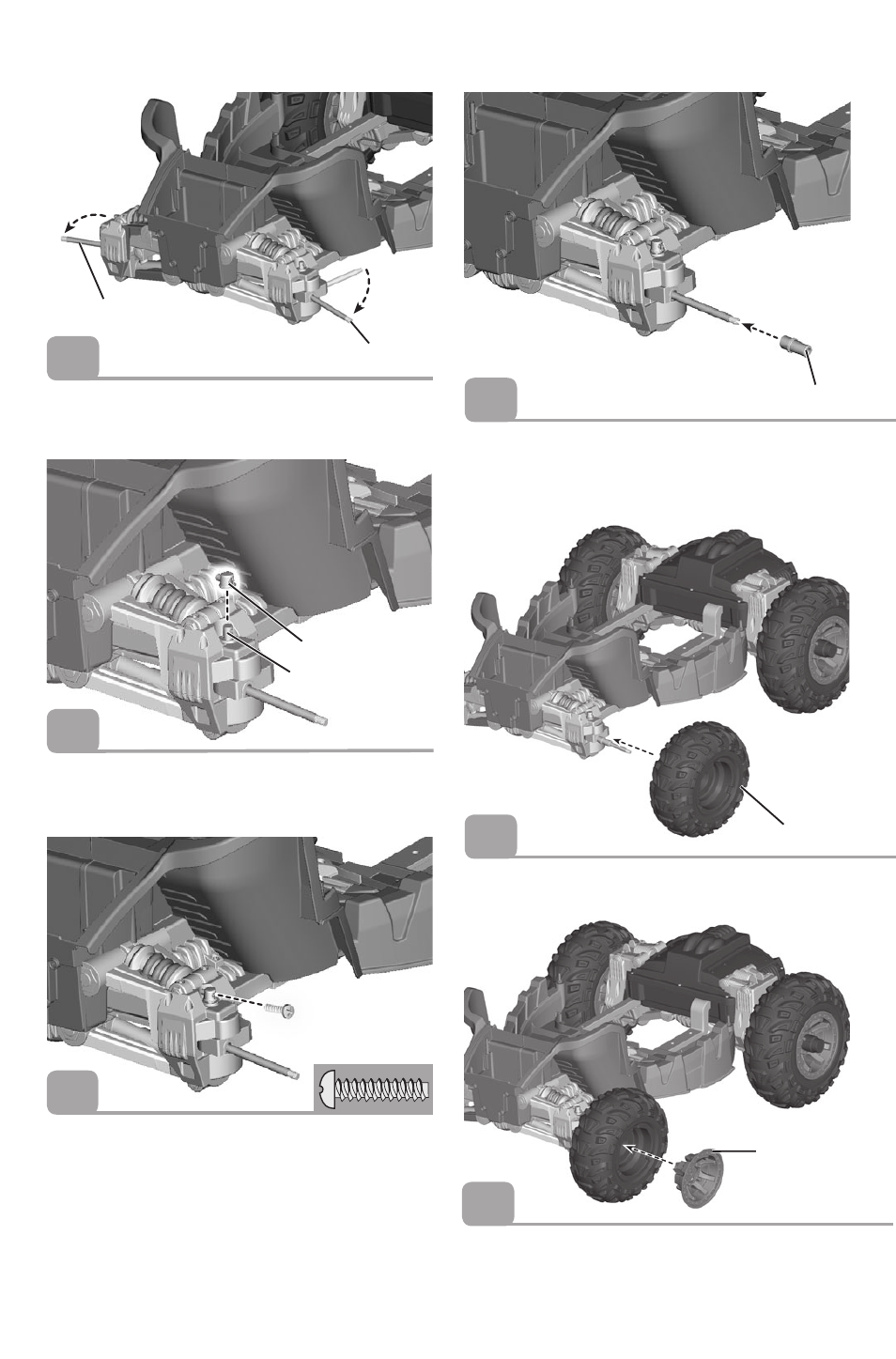

ASSEMBLY
6
• Pull to rotate the front axles completely towards the
front of the vehicle.
Front Axle
Front Axle
Front Axle
Fastener Cap
Front Axle
7
• Fit a front axle fastener cap onto the upper portion of
a front axle.
• Align the hole in the axle fastener cap with the hole in
the front axle.
Hint: You may need to push the front axle towards the
front of the vehicle while you insert the screw.
• Insert a #8 x ¾" (1,9 cm) screw into the
large opening
in the front axle fastener cap and tighten.
• Repeat steps 7 and 8 to assemble the other front axle
fastener cap.
8
Bushing
Front Wheel
9
10
• Remove the cap on the end of the front axle. Dispose of the
cap in the trash.
• Slide a bushing, ring end first, onto a front axle.
• Slide a front wheel, flat side first, onto the front axle.
• Slide a rim, indented side out, onto the front axle.
11
Rim
