ASSEMBLY
34

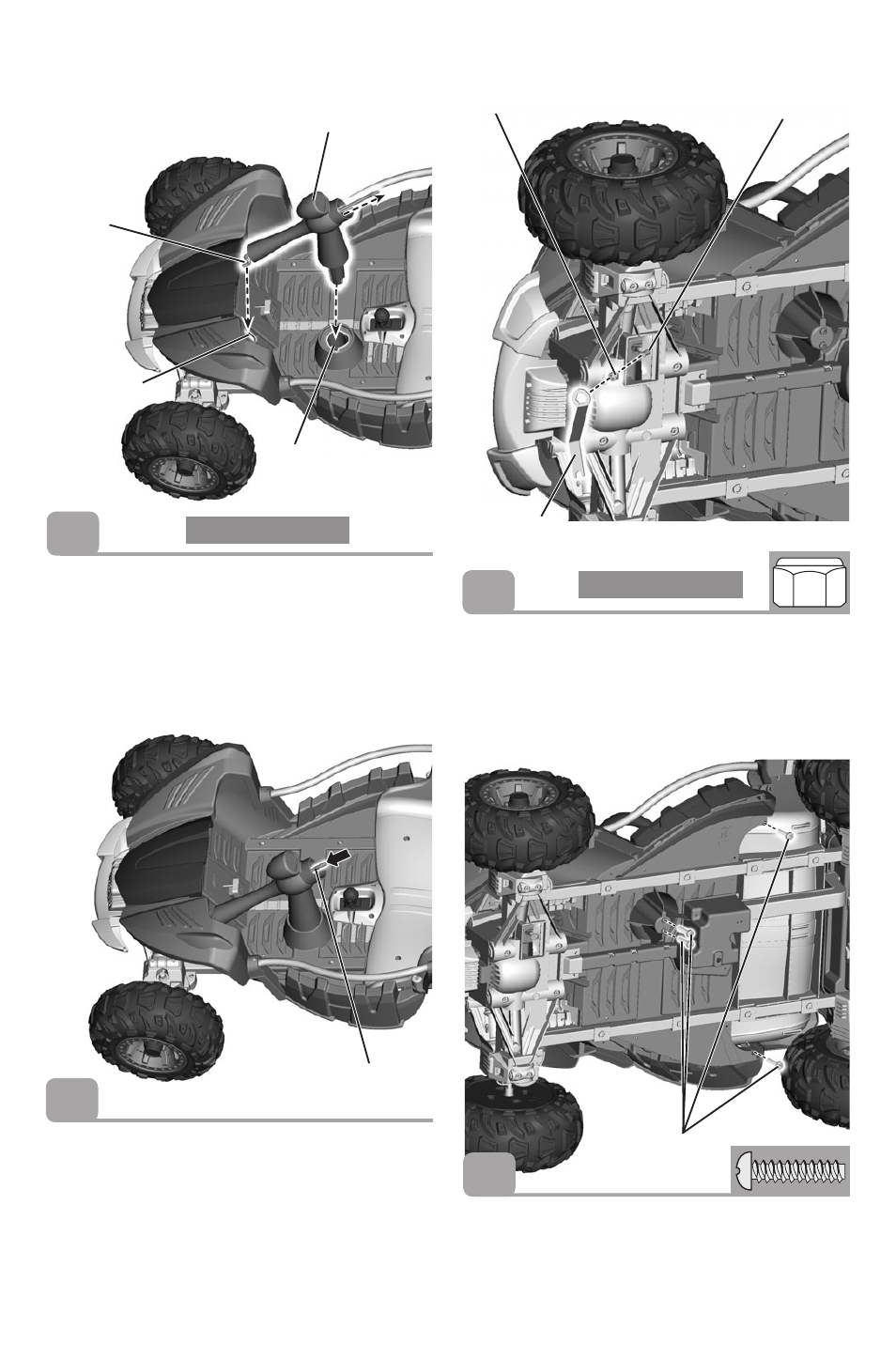

Steering Column
• Push the steering column down (so that it inserts into
the slot in the steering linkage underneath the vehicle).
• Carefully turn the vehicle on its side.
• Fit the steering column through the hole in the
steering linkage.
• Fit a 3 /
8
" (1 cm) lock nut onto the end of the steering
column and tighten with the assembly wrench.
35
Steering Column Lock Nut
BOTTOM VIEW
Assembly
Wrench
• Insert four #8 x ¾" (1,9 cm) screws into the holes in
the bottom of the vehicle (to hold the steering column
post and seat) and tighten.
Screws
36
Bend in
Steering
Column
Steering
Column Post
Hole
Slot
• Pull the straight end of the steering column up so that
only the bend is visible (out from the bottom of the
steering column post).
• Hold the steering column in place and lower the
assembly to fit both the steering column post into the
hole in the floor of the vehicle and the steering column
into the slot in the front end of the vehicle.
33 TOP SIDE VIEW
