12 W2602pr-0920

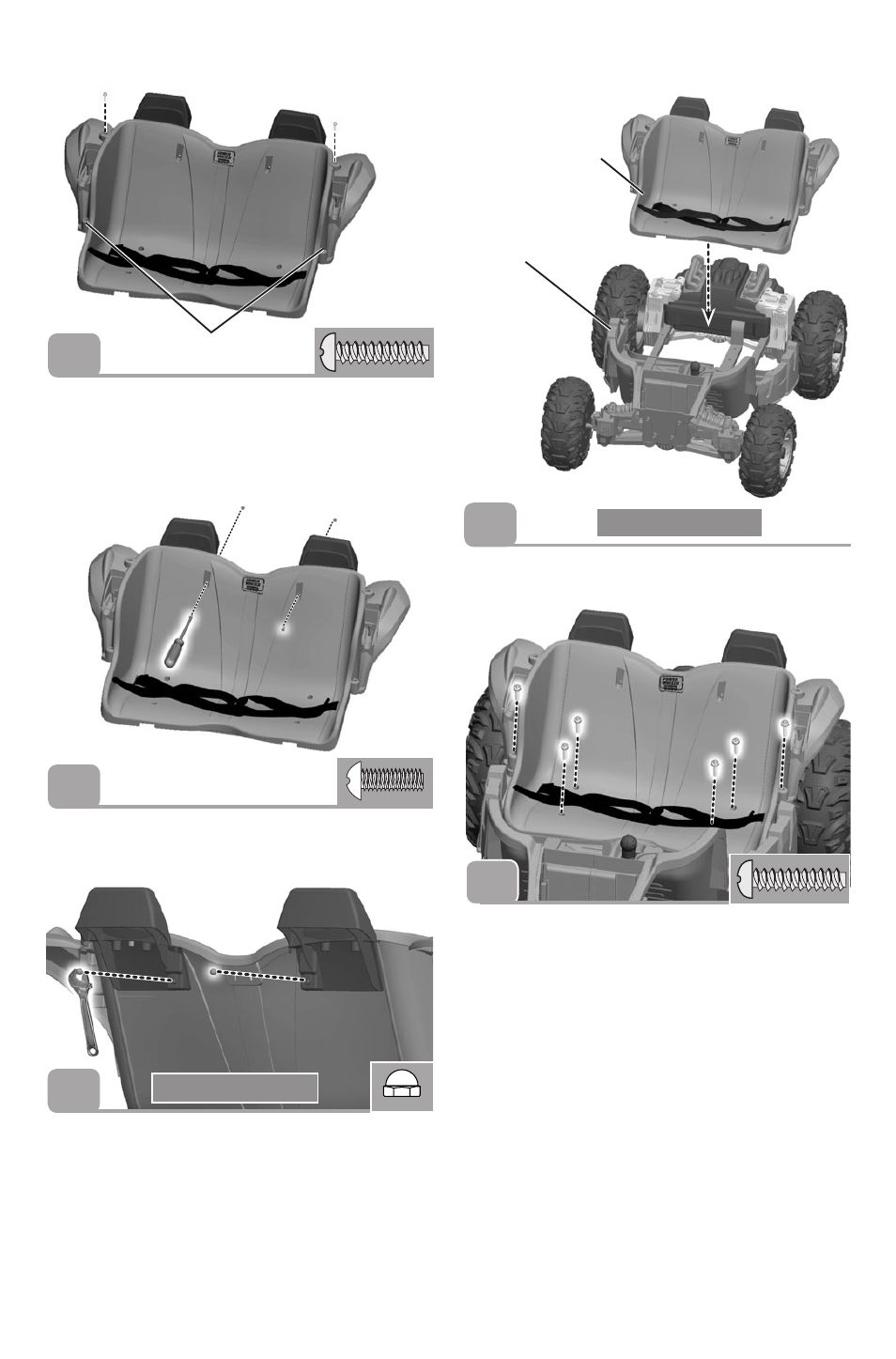

• Insert six #8 x ¾" (1,9 cm) screws into the seat
and tighten.
24
• From behind the seat back, fit a #8-32 acorn nut onto
the end of the screw.
• While holding the acorn nut in place with the assembly
wrench, tighten the screw with a Phillips screwdriver.
• Repeat assembly steps 21 and 22 to assemble the
remaining #8 x ½" screw and #8-32 acorn nut to the
seat back.
22
Vehicle Frame
Seat
• Fit the seat onto the vehicle frame.
23 FRONT VIEW
BACK VIEW
ASSEMBLY
• Insert a #8 x ½” (1,3 cm) screw into a hole in the front
of the seat back.
21
DO NOT insert screws here.
• Insert two #8 x ¾" (1,9 cm) screws into the upper hole
in each side of the seat and tighten.
Note: Do not insert screws into the lower holes on the
seat in this step. These screws will be assembled in this
location in step 24.
20
