8 W2602pr-0920
Assembly
Children can be harmed by small
parts, sharp edges and sharp points
in the vehicle's unassembled state,
or by electrical items. Care should be
taken in unpacking and assembly of
the vehicle. Children should not handle
parts, including the battery, or help in
assembly of the vehicle.
WARNING

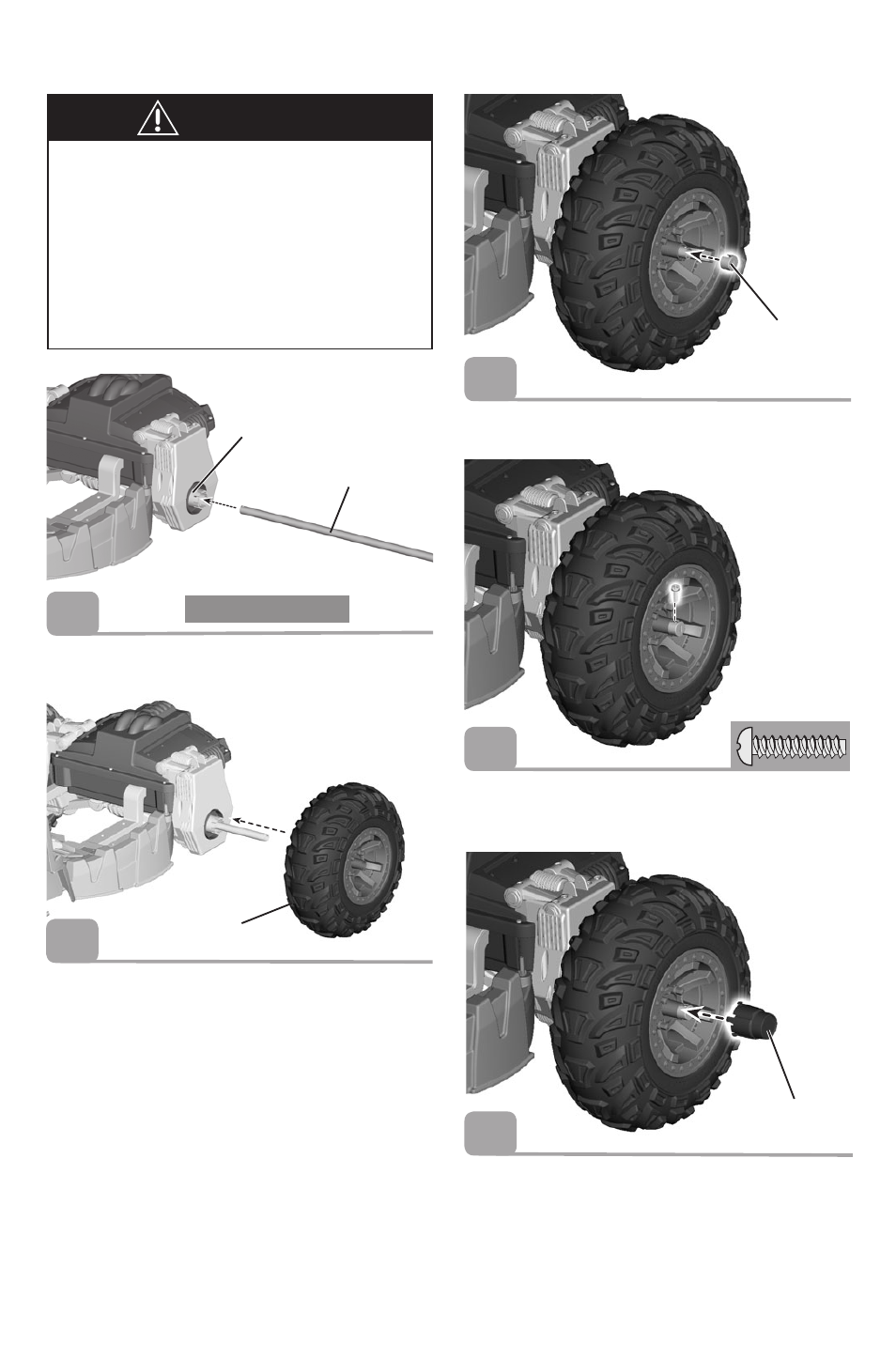

Rear Axle
• Slide the rear axle through the hole in the motor in the
back end of the vehicle.
1
Rear Wheel
• Slide a rear wheel onto the end of the rear axle.
2
SIDE VIEW
Motor
• Fit a rear axle cap onto the end of the rear axle.
3
Rear Axle Cap
• Insert a #8 x ¾" (1,9 cm) screw into the hole in the
rear axle and tighten.
4
• Fit the tabs on the rear hubcap into the slots in the rear
wheel. Push to "snap" into place.
• Repeat steps 2-5 to assemble the other rear wheel,
rear axle cap and rear hubcap to the rear axle.
5
Rear Hubcap
