10 W2602pr-0920

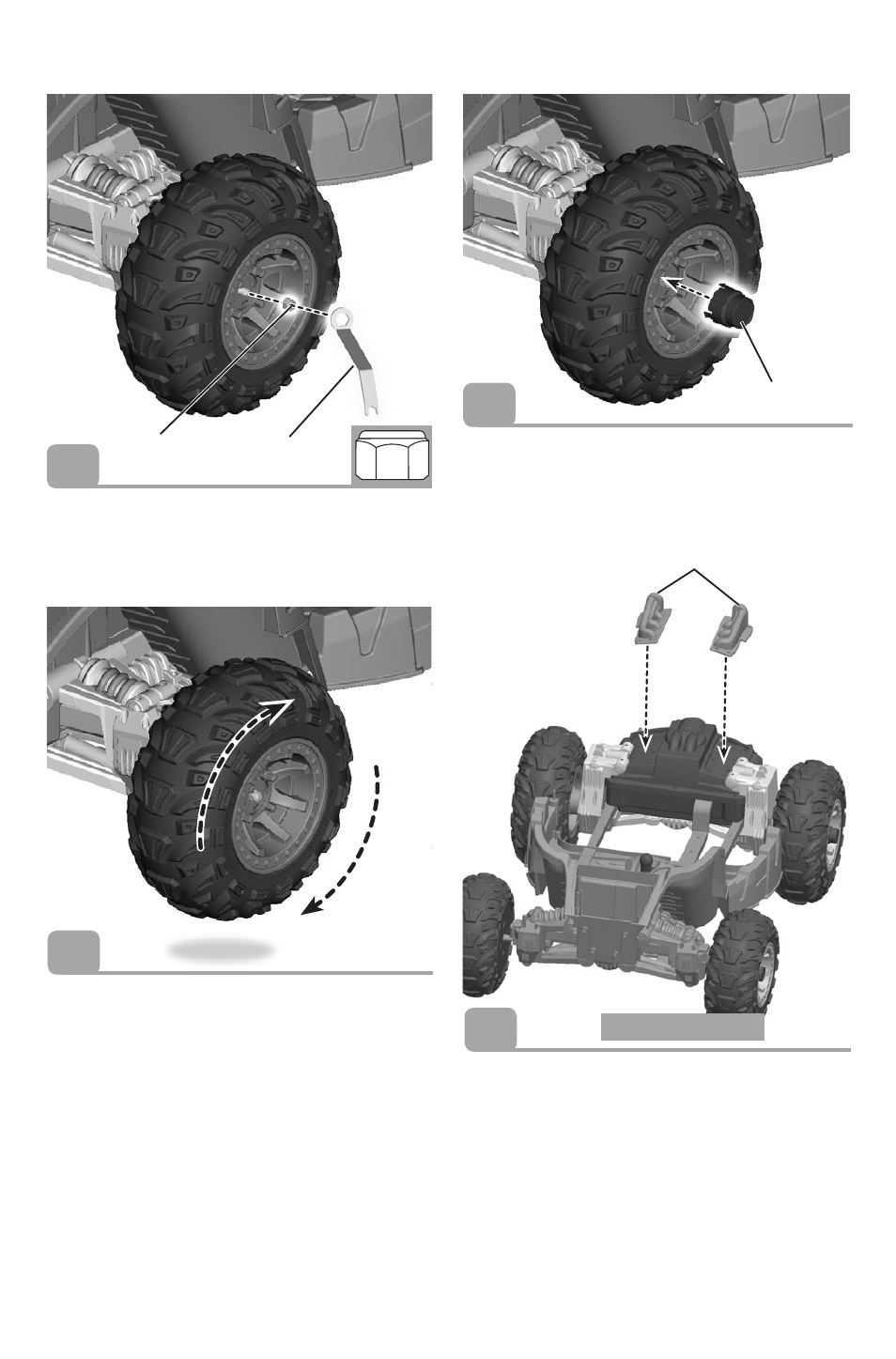

ASSEMBLY
Lock Nut
• Fit a 3 /
8
" (1 cm) lock nut onto the end of the front axle
and tighten with the assembly wrench.
IMPORTANT! Fully tighten the lock nut with the
included assembly wrench.
12
Assembly
Wrench
Valve Covers
Front Hubcap
14
• Fit the tabs on the front hubcap into the slots in the
front wheel. Push to "snap" into place.
• Repeat steps 9-14 to assemble the remaining bushing,
front wheel, rim and front hubcap to the other front axle.
• Test to be sure the wheel spins. Lift the front end of
the vehicle up slightly and turn the wheel. It should
spin freely.
• If the wheel does not spin freely, use the assembly
wrench to loosen the lock nut a ¼" turn. Spin the
wheel again and loosen more, if necessary.
13
• Fit each valve cover onto the back end of the vehicle
frame, as shown.
Hint: Each valve cover is designed to fit one way. If the
valve cover does not seem to fit, try the other valve cover.
FRONT VIEW 15
