37

Replacing procedure

(1) Remove the electronics unit according to “Replacement of electronics unit”.

(2) Remove the hex. socket bolts from the electronic housing.

Pull the electronics housing straight forward and away from the detecting unit.

(3) Replace the detecting unit with a new one of the same type.

(4) Fit the transmission unit to the detecting unit and tighten it.

(5) Connect each connector of the electronics unit and attach it to the transmission

unit.

(6) After reassembly, carry out zero and span adjustments.

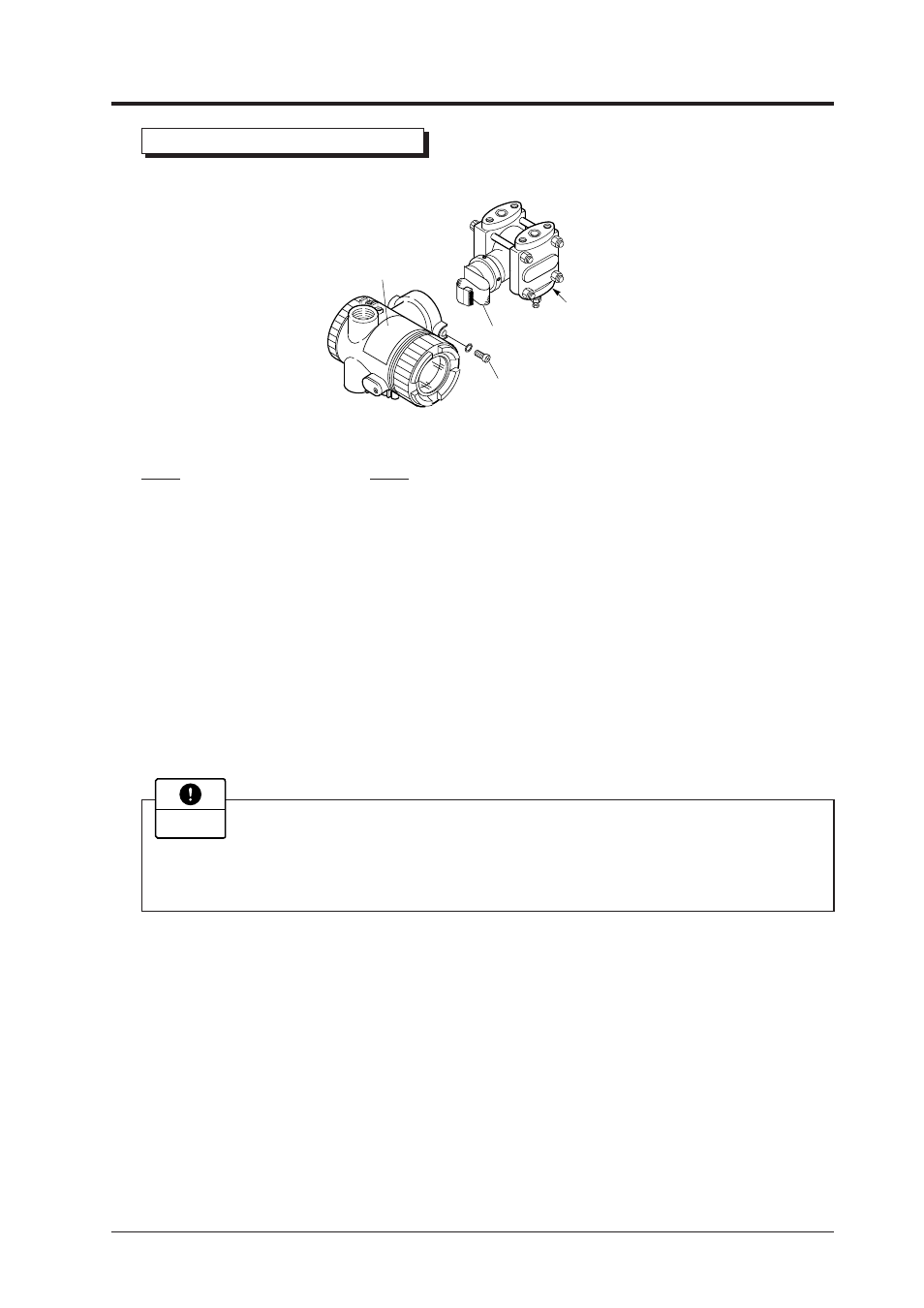

Hexagonal socket bolt

Flexible printed circuit board

Detecting unit

Transmission unit

Replacement of detecting unit

Important

• Ensure that replacement detector unit is the same specification as the original

by comparing dataplates.

• When removing the transmitter case, pay attention not to damage the flexible

printed circuit board.
