11
4.1.3 Operating procedure
In case of a flameproof transmitter, never connect the HHC to the terminal block of
transmitter in hazardous area installations.
TAG N ° .

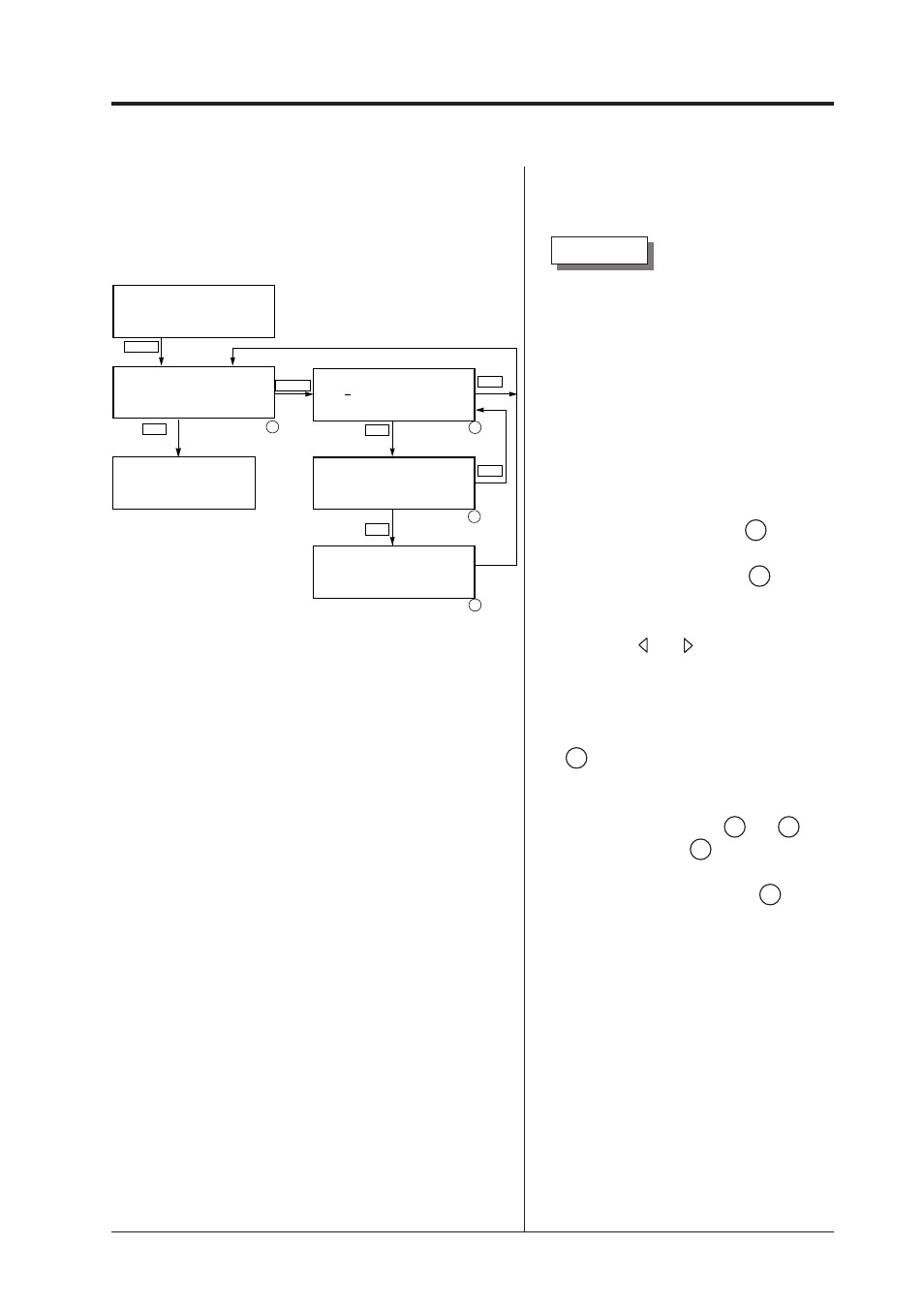

To set the TAG N °. of each field de-
vice, use the procedures shown in
the following diagram. TAG N
°.
can be inputted up to 26 characters
of alphanumeric codes.
• After PUSH MENU KEY is
displayed, press the
°.
• To make changes press the
key and the cursor will be
displayed under display 1 .
• Set the alphanumeric keys as
necessary under display 2 . To set
the alphabet, press the ALHA> key first.
Using <
> < > keys, cursor po-
sition can be moved.
• At the completion of setting, press
the key and a prompt is
displayed check entry under display
2 .
• If the entry is correct, press the
key to input it to the field
device under display 3 and 4 and
the initial image 1 is displayed.
• To display TYPE display, press the
key under display 1 .
1: TAG No
FICRA-1234 xxxxxxxxx
xxxxxxxxxxxxxxxxxxx
< INC > < CHANGE >
1-1: TAG CHANGE
FICRA-1234
xxxxxxxxx
xxxxxxxxxxxxxxxxxxx
< ENT > < CL >
1-1: TAG CHANGE
FICRA-4321
xxxxxxxxx
xxxxxxxxxxxxxxxxxxx
CHNG OK?< ENT/CL >
1-2: TAG WRITE
FICRA-4321
xxxxxxxxx
xxxxxxxxxxxxxxxxxxx
To menu
2 : TYPE
0: PUSH MENU KEY
CL
INC
CHNG
MENU
CL
ENT
ENT
after setting
1 2
3
4
