C141-E185 1-9
1.3 System Configuration

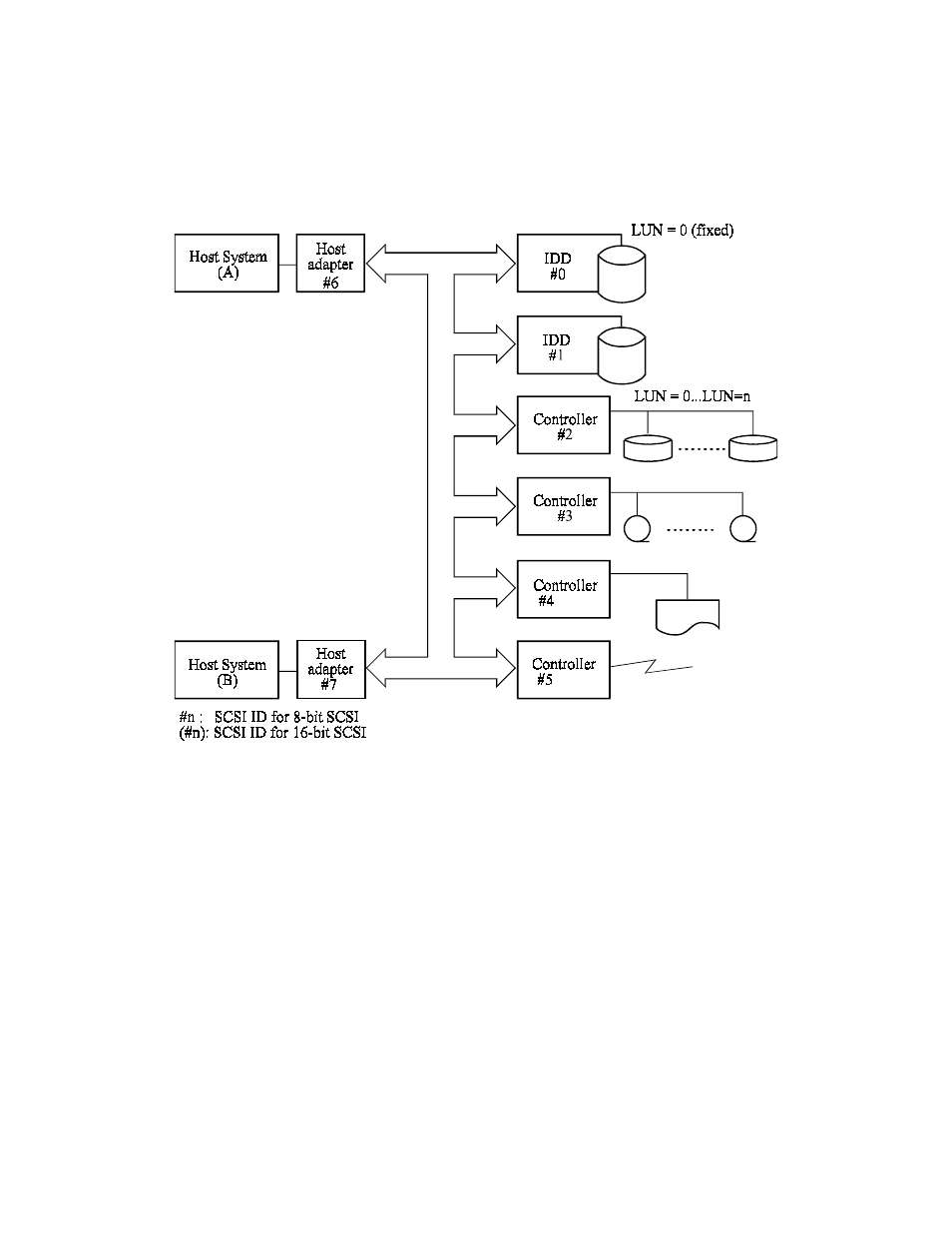

Figure 1.4 shows the system configuration. The IDDs are connected to the SCSI bus of host
systems and are always operated as target. The IDDs perform input/output operation as specified
by SCSI devices which operate as initiator.
SCSI bus
(#14)
(#15)
Figure 1.4 System configuration
