-------- 7 --------
FOLDING INSTRUCTIONS
The Ab Lounge ® XL unit has been designed to fold for convenient travel and storage.
The Locking Arm Mechanism is removable by hand, no special tools required. For maximum
effectiveness and safety, always review these instructions prior to folding the unit.
Folding the Ab Lounge ® XL Unit

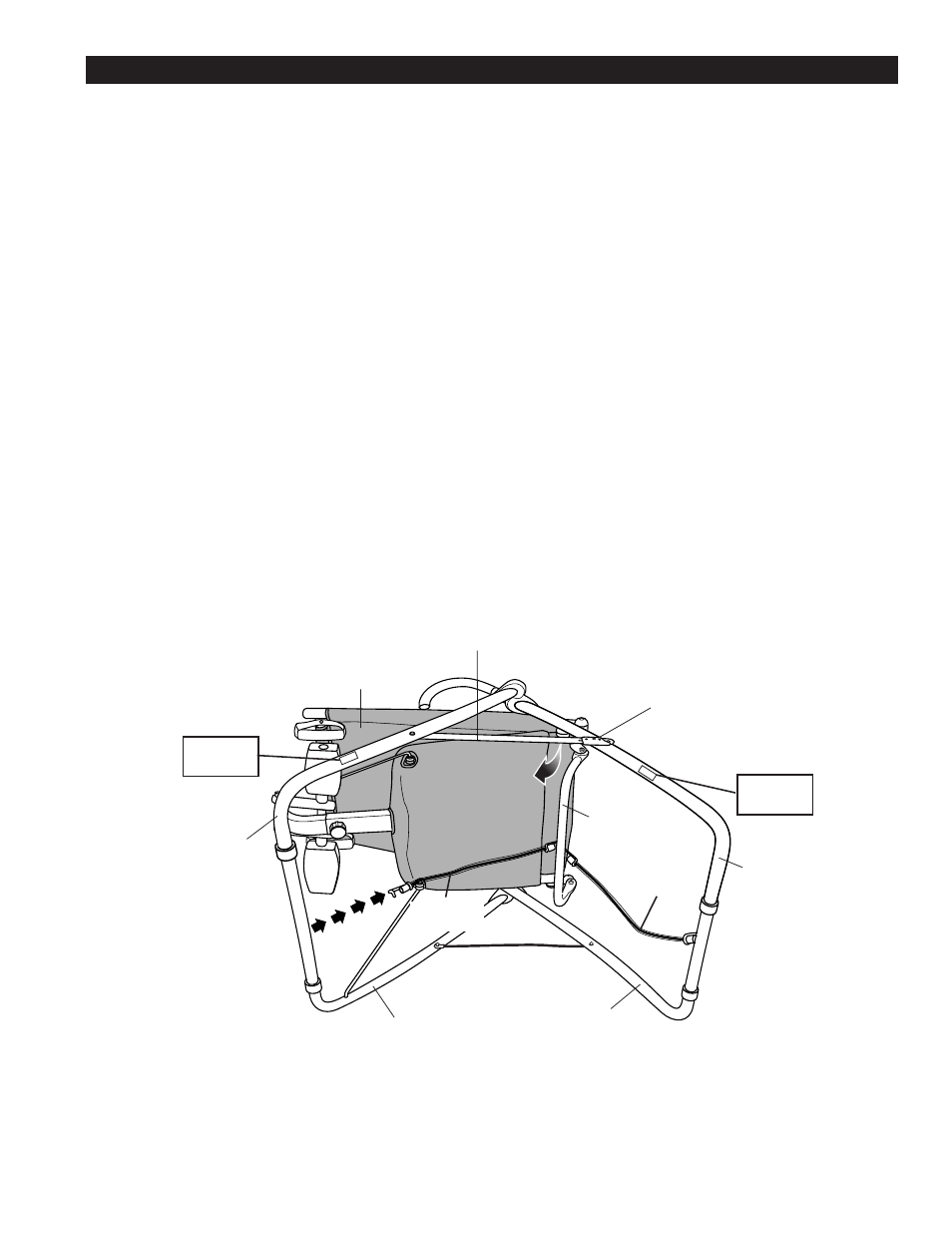

a) Lay the unit on its right side as shown. Unhook the Short Band from the
Front Frame and the Long Band from the Rear Frame. Leave both Bands
connected to the Seat Support Frame for storage.
b) Pull the Back toward the Seat until it aligns with the Front Frame.
c) Unhook the Locking Arm Mechanism by pushing down on the button and
sliding it back and unhooking the Left Rear Frames (reverse assembly
Step 2).
d) Rotate the Locking Arm towards the Front Frame.
e) Grasp the Front Frame with one hand and the Rear Frame with the other
hand and slowly pull them together.
IMPORTANT: Place hands on Caution Labels when folding,
and be careful not to pinch your fingers between the
Front and Rear Frames.
f) For your unit to store flat you must fold the Handlebars in. To do this,
loosen the Handlebar Knobs and turn Handlebars inward toward the unit
and tighten Knobs to keep in place.
IMPORTANT: Before using your unit, be sure Handlebars are back in
correct position and the Knobs are securely tightened.
CAUTION
LABEL
CAUTION
LABEL
X15901-1
Front Frame
X15901-2
Rear Frame
Back
X15901-2
Rear Frame
X15903-1
Seat Support
Frame
X15901-1
Front Frame
X15908-8
Short Band
Seat
X15908-7
Long Band
LOCATED ON BOTH
SIDES OF FRAME
LOCATED ON BOTH
SIDES OF FRAME
X15901-8
Locking Arm
Mechanism
X15901-8
Locking Arm
