EQUIPMENT WARNING & CAUTION LABELS
WARNING
FAILURE TO READ AND FOLLOW THE SAFETY INSTRUCTIONS STATED IN THE OWNER’S MANUAL
AND VIDEO MAY RESULT IN POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. MAXIMUM
USER WEIGHT 275 LBS. REPLACE THIS LABEL IF DAMAGED, ILLEGIBLE OR REMOVED. CLASS HC.
WARNING LABEL 1
DETACH THIS END OF BAND FROM FRAME BEFORE
FOLDING. FAILURE TO DO SO MAY RESULT IN INJURY.
WARNING LABEL 2 (2 locations)
CRUSH HAZARD. Keep hands clear
during folding. Failure to do so,
could result in crushed fingers.
WARNING LABEL 3 (4 locations)
WARNING
Place hand here when folding.
Keep hand outside of tubes to
prevent pinched fingers.
CAUTION LABEL 1 (4 locations)
CAUTION
Ab Lounge ® XL Specifications:
Product Weight: Approx. 35 lbs.
Length: 54”
Width: 31-3/4”
Height: 45-1/2”
Note: Dimensions are based
on unit set up for use.
Maximum user weight: 275 lbs.

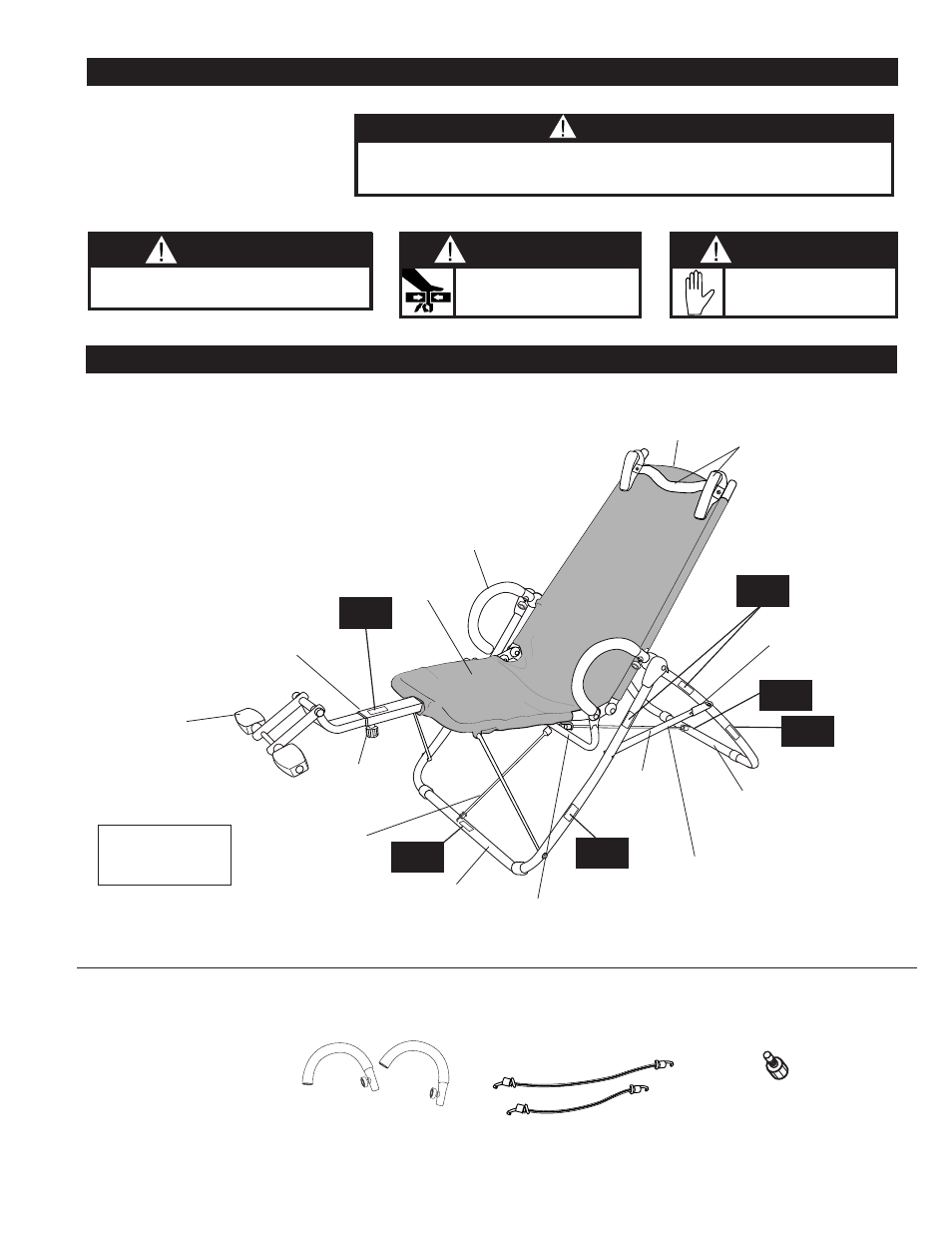

SPECIFICATIONS AND PARTS
Also Includes a
Workout DVD
The following parts are located in the Parts Box. Please make sure you have all of the parts before
beginning assembly of your equipment.
X15908-8
short band
X15906
foot rest
assembly
X15908-1
handlebar
X15907
seat
X15903-1
seat support frame
X15901-1
front frame
X15901-8
locking
arm
X15908-7
long band
X15901-2
rear frame
X15905-3
head rest frame
X15901-8
locking arm
mechanism
X15905-4
Focus Strap
™ with
Iso-Grip ™ handles
2 - handlebars with
locking knobs
1 - short band
X15908
PARTS BOX:
1 - long band
WARNING
LABEL 1
LOCATED ON
BOTH SIDES
OF FRAME
WARNING
LABEL 3
WARNING
LABEL 2
LOCATED ON
BOTH SIDES
OF FRAME
CAUTION
LABEL 1
LOCATED ON BOTH
SIDES OF FRAME
CAUTION
LABEL 1
WARNING
LABEL 2
X15908-6
adjustment
knob
X15902-1
foot rest receiver
1 - adjustment
knob
IMPORTANT: See below for
placement of the following
Warning/Caution Labels on
your unit.
WARNING
