XG2000 Components

The following explains the names and functions of the components at the rear of the XG2000.

• Rear Fan Unit

Exhaust fan.

- Rear Fan LED (Green/Orange) Green LED lights when the Rear Fan Units is in nor-

mal operation.
Orange LED when there is a problem with the Rear
Fan Unit.

• Power Supply Unit

Supplies power to the XG2000 (includes an exhaust fan).

- Power Supply LED (Green/Orange)

Green LED lights when the XG2000 is on.
Orange LED lights when there is a problem with the
Power Supply Unit.

Attention

In order to avoid a negative effect on the cooling of the XG2000, the Rear Fan Unit
screws should be kept tight at all times.

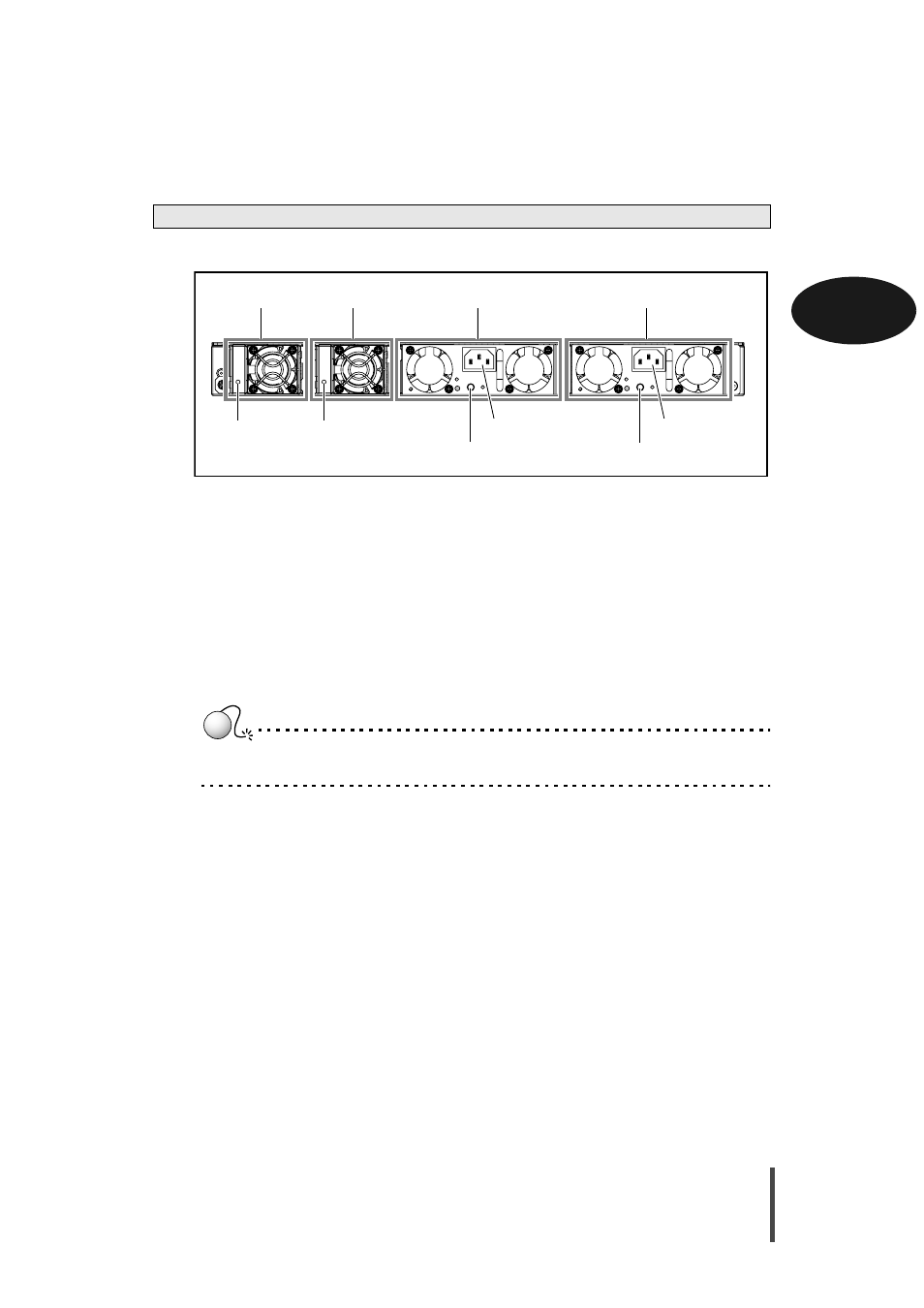

XG2000 rear

Power Inlet

Rear Fan LED Rear Fan LED

Power Supply LED

Power Supply Unit

Rear Fan Unit
