Fisher-Price H4433 - Manual (Page 15)

30

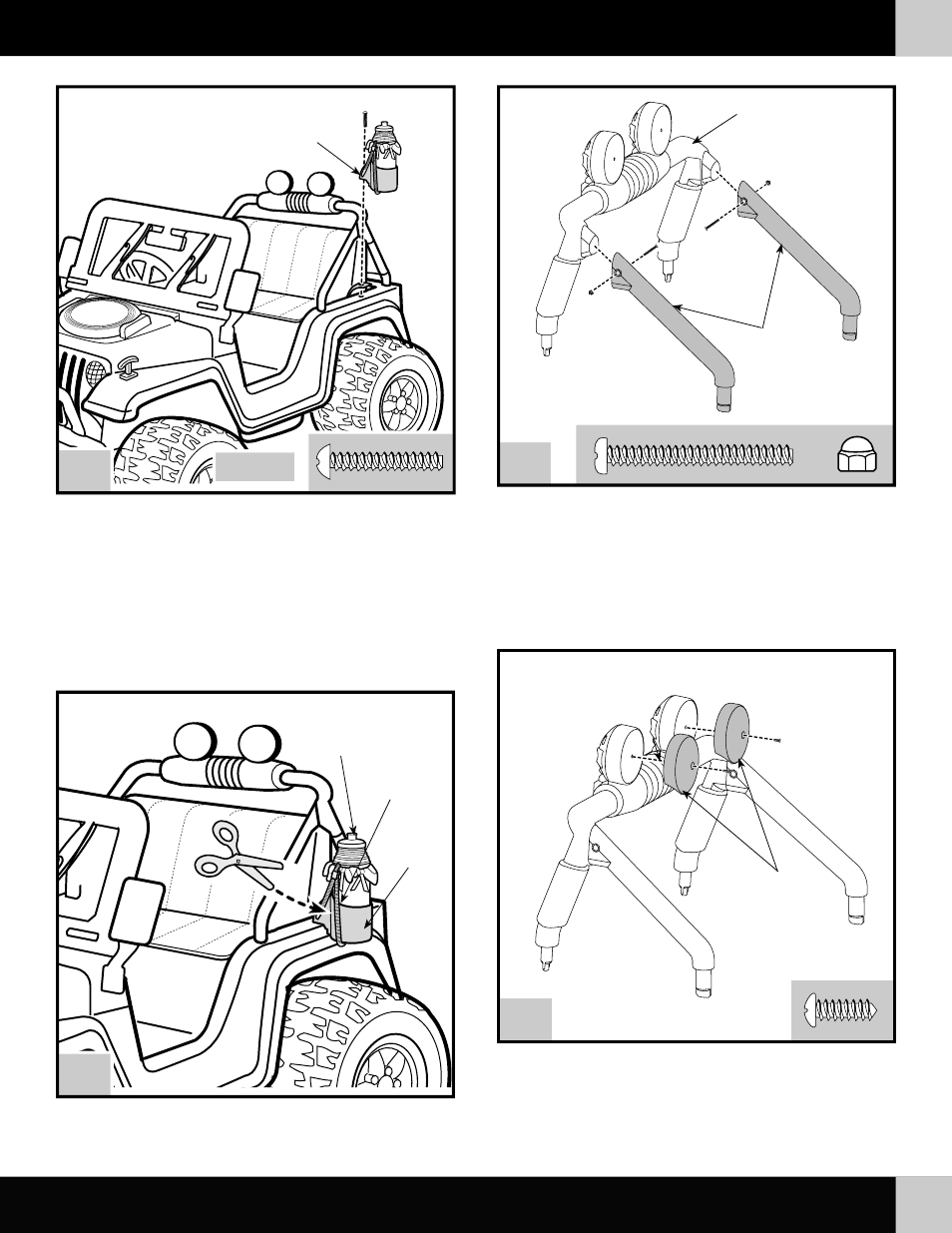

• Fit the light covers to the top of the sport bar, as shown.
• Insert a #10 x
1 /
2
" screw into each light cover. Tighten the screws.
Light
Covers
• Fit a support to one side of the sport bar.
• Insert a #8- 32 x 1.625" screw through the support, the sport bar
and out through the support.
• Fit a #8 acorn lock nut to the end of the screw.
• While holding the acorn lock nut with an adjustable wrench
(or pliers), tighten the screw.
• Repeat this procedure to fasten the other support to the sport bar.
29
Sport Bar
Supports
• Using safety scissors, cut the plastic ties holding the water bottles to
the drink holders. Dispose of the plastic ties properly.
Note to Retailer: Do not remove the plastic ties.
28
Plastic Tie
• Place the tab on the side of the seat cover over the hole on the top
edge of the vehicle.
• Fit a water bottle with drink holder on top of the tab and the top edge
of the vehicle.
• Insert a #8 x 1" screw through the drink holder and into the vehicle.
Tighten the screw.
• Repeat this procedure to assemble the other water bottle with drink
holder to the other side of the vehicle.
Note: The water bottles are top rack dishwasher safe.
27
Water Bottle with
Drink Holder
Drink
Holder
Water
Bottle
15
H4433pr-0920
Side View
ASSEMBLY F
