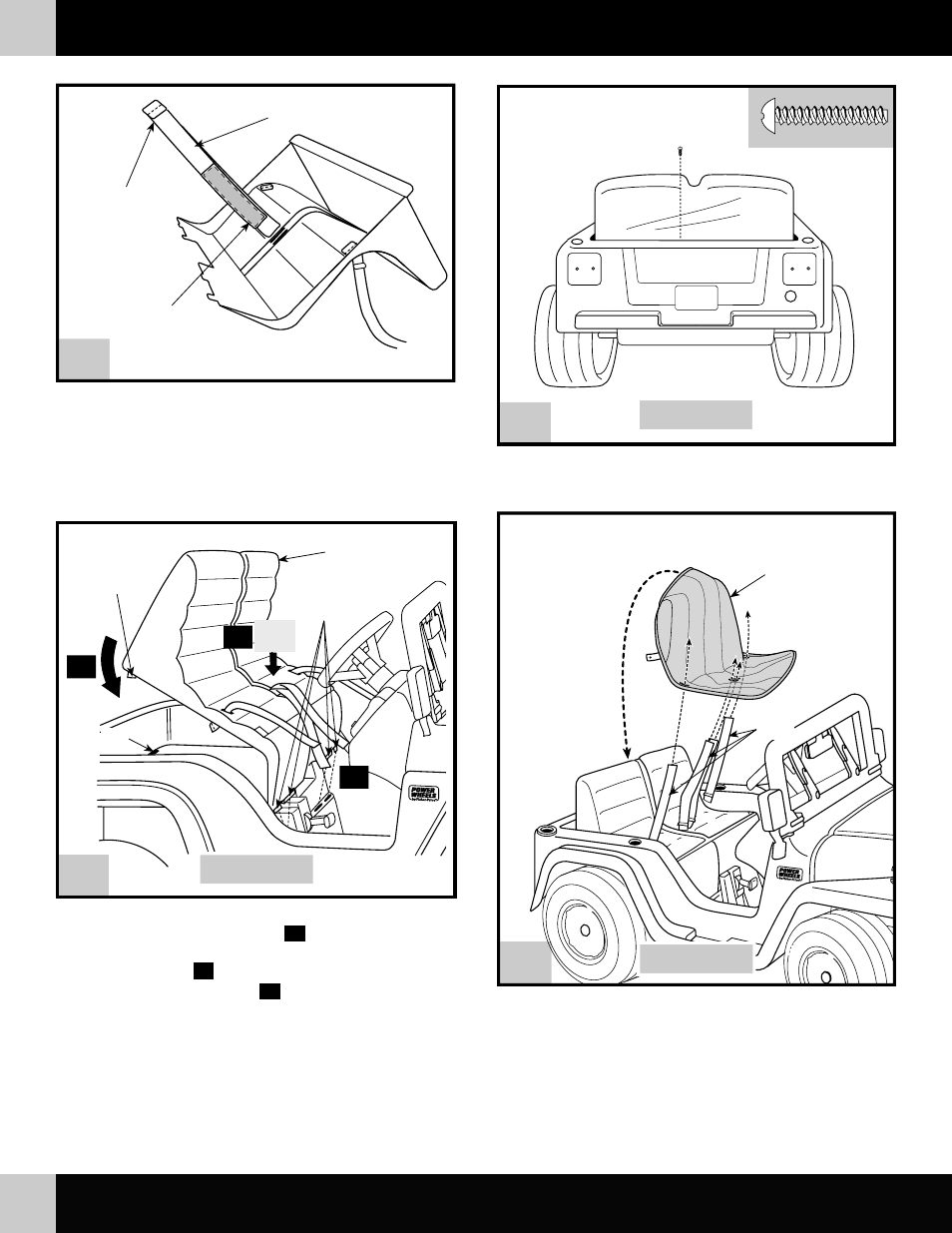

ASSEMBLY F
25
• Insert a #8 x 1" screw into the rear edge of the seat. Tighten
the screw.
• With the seat at an angle, insert the tabs on the front edge of the
seat into the slots in the foot-well wall A .
• Push down firmly on the edge of the seat above each tab to snap
the tabs into the slots B .
• Rotate the back of the seat down
C to snap the seat back tabs
into the slots in the vehicle. Push down firmly on the seat back.
24
Seat
Seat Back
Tabs
Slot
Tabs
A
B
C
Side View
PUSH
HERE
23
• Insert each fastener end of the long seat belt strap through a slot in
the center of the seat. Make sure the fasteners face the outer edge
of the seat.
• Pull each side of the long seat belt strap evenly through the slots.
Make sure to pull each T-loop through a slot.
• Turn the seat upright.
T-Loop
Fastener End
Long Seat Belt Strap
• Fit the seat belts through the slots in the seat cover.
• Fit the back edge of the seat cover over the back of the seat.
26
Seat Cover
Seat
Belts
Back View
Side View
