TO TURN OFF GAS
TO AppLIANCE
1. Turn control knob clockwise to the
OFF position.
2a. Set selector switch in the OFF position.
2b. If Using Optional Hand-Held Remote:
Set selector switch in the OFF position to
prevent draining battery.
3. Close equipment shutoff valve (see Figure
15, page 16).
MANUAL LIGHTING
pROCEDURE
1. Follow steps 1 through 6 under Lighting
Instructions, page 18.
2. Press control knob and light pilot with
match.
3. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob. Now follow steps 9
through 11 under Lighting Instructions,
page 19.
OpTIONAL HAND-HELD
REMOTE OpERATION
All remote control accessories must be pur-
chased separately (see Accessories, page
29). Follow instructions included with the
remote control.
NOTICE: You must light the pilot
before using the hand-held re-
mote control unit. See Lighting
Instructions on page 18.
After lighting, let pilot flame burn for about
one minute. Turn control knob to ON position.
Adjust flame adjustment knob anywhere be-
tween HI and LO. Slide the selector switch to
the REMOTE position (see Figure 25).
Note: The burner may light if hand-held re-
mote was on when selector switch was last
turned off. You can now turn the burner on and
off with the hand-held remote control unit.
IMPORTANT: Do not leave the selector switch
in the REMOTE or ON position when the pilot
is not lit. This will drain the battery.
OPERATION
Continued

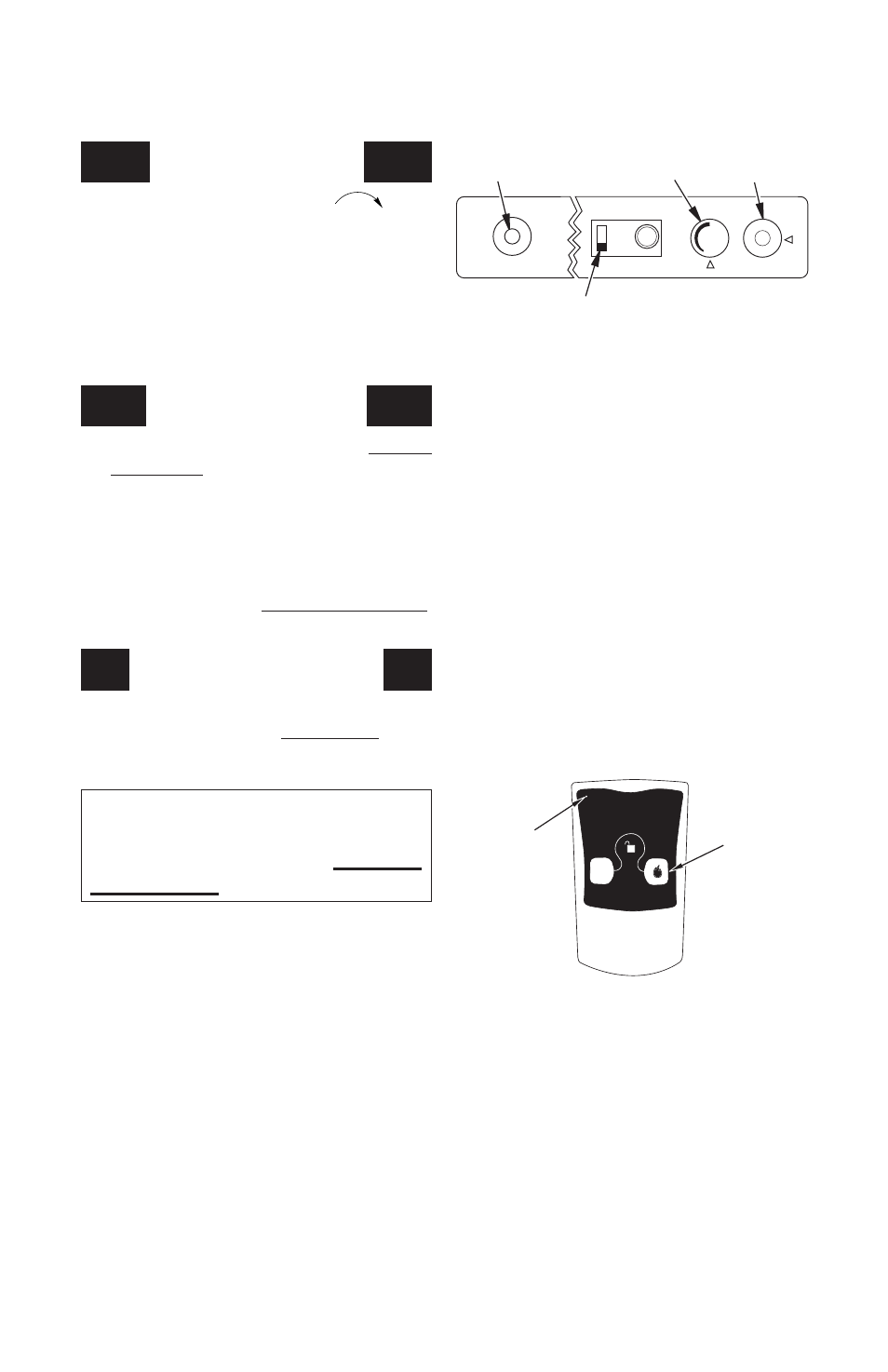

Figure 25 - Setting the Selector Switch,
Control Knob, and Flame Adjustment
Knob for Hand-Held Remote Operation
Selector Switch in Remote Position
(Optional Hand-Held Remote Control)
ON
OFF
REMOTE
O
FF
PILOT
LO
IH
O
N
Control Knob
in On Position Flame
Adjustment Knob
ON/OFF SERIES (MODEL HRC100)
Hold the control button on the hand-held
remote until burner turns on. Hold the con-
trol button again until burner turns off (see
Figure 26).
To Lock press both buttons on hand-held
remote control until light stops flashing. Hand-
held remote control is now locked. If the fire
is on it will be turned off automatically. In the
locked state, the light will not light up when
any button is pressed.
To Unlock press both buttons together
on hand-held remote control until the light
stops flashing. The hand-held remote is now
unlocked.
Figure 26 - On/Off Hand-Held Remote
Control Unit
Control
Button Indicator
Light
Piezo
Ignitor
