www.fmiproducts.com 121353-01H 17
INSTALLATION
Continued
as illustrated in figure 20.
4. Make sure open areas of logs line up
with burner ports (see figure 21). Logs
will fit securely on chassis. IMPORTANT:
Make sure log does not cover any burner
ports.
INSTALLING LOGS
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this heater may result in property
damage or personal injury.
CAUTION: After installa-
tion and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With the heater set to High, check
to see if flames contact any log. If
so, reposition logs according to
the log installation instructions
in this manual. Flames contact-
ing logs will create soot.
It is very important to install the logs exactly
as instructed. Do not modify logs. Only use
logs supplied with heater.
NOTE: Log sets may come with either fiber
pegs or metal pins. The following instructions
can be followed for either design.
1. Place front log (#1) and rear log (#2) on
grate to fit as illustrated in Figure 18.
2. Place center insert log (#3) as illustrated
in Figure 19. Log should rest on burner
and burner bracket. Do not block burner
ports
3. Place top log (#4) and top right log (#5)

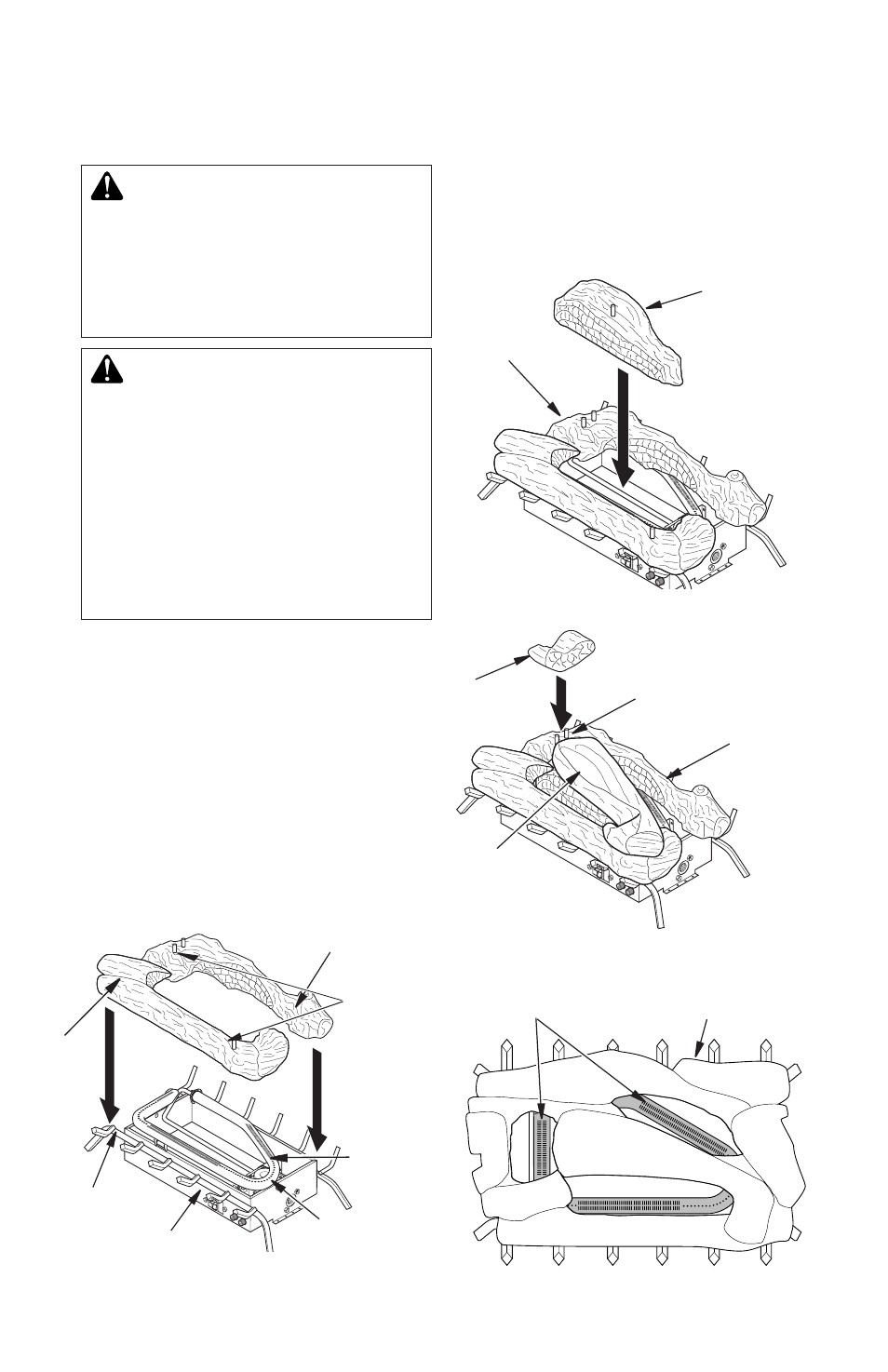

Figure 19 - Installing Center Insert Log (#3)
Logs Burner Ports
Figure 20 - Installing Top Left Log(#4)
and Top Right Log (#5)
Figure 18 - Installing Front (#1) and Rear
(#2) Logs
Top Left
Log (#4)
Figure 21 - Installing Log Set (Top View)
Center Insert
Log (#3)
Peg
Top Right
Log (#5)
Be sure that pegs
go into hole with
same shape
(round vs. square)
Rear Log (#2)
Burner
Chassis
Grate
Burner
Port
Front
Log (#1)
Be sure that
pegs go into
hole with
same shape
(round vs.
square)
