1.2 Loading Documents on the ADF for Scanning
fi-4120C Image Scanner Operator’s Guide 5
BASIC SCANNER OPERA
T
IONS
1

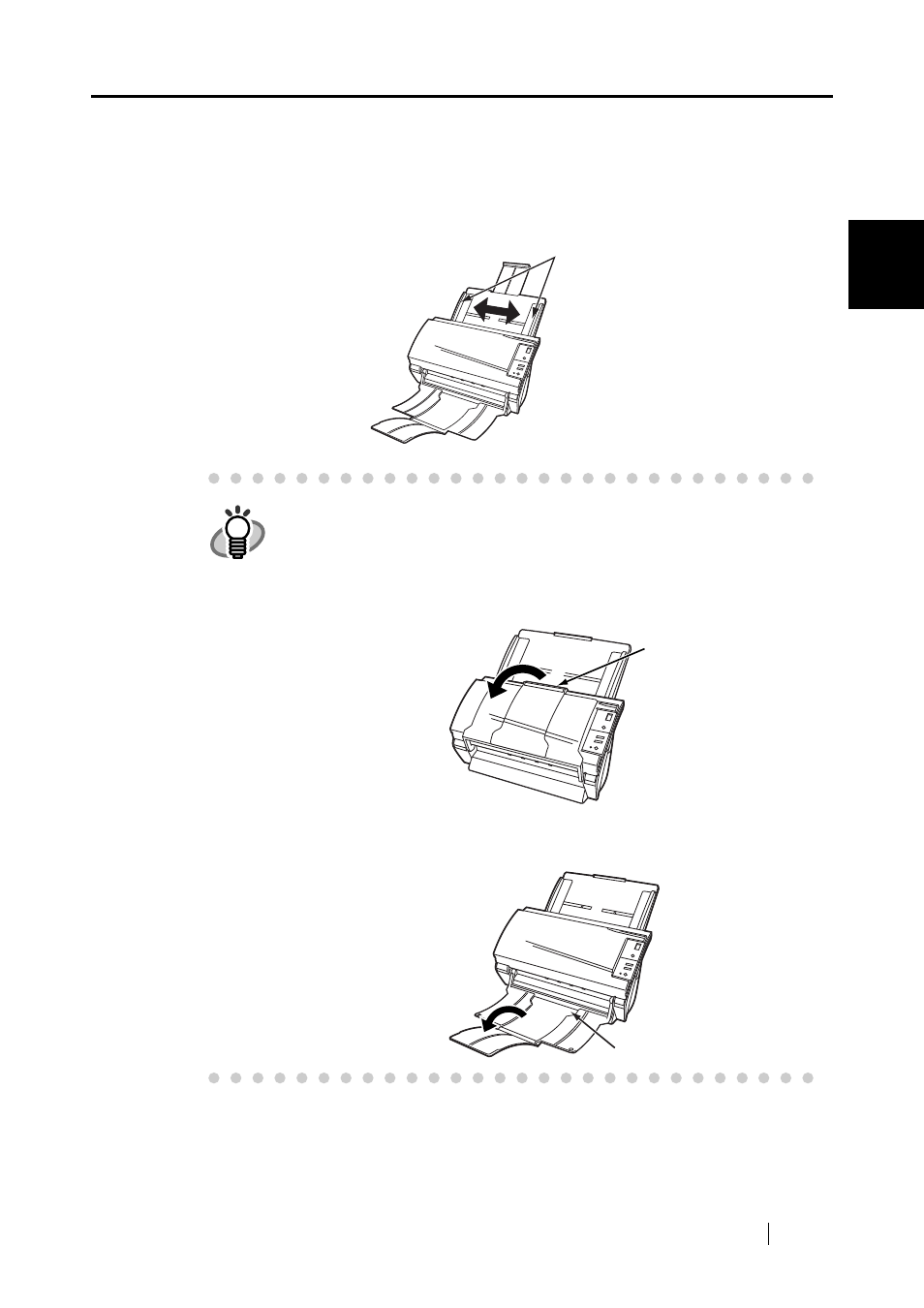

5. Adjust the side guides to the width of the documents.
Move the side guides so that they touch both sides of the documents.
If there is any space between the side guides and the edges of documents, the scanned image
may be skewed.
6. Start up the scanner application, and scan the document.
For details on how to scan documents using the ScandAll 21 application, refer to "1.3 Scan-
ning Documents" (page. 6).
HINT
The stacker prevents document sheets from dropping after they are
scanned.
Use the stacker as follows:
1. Lift up the stacker towards you by inserting your fingertips into
the handle on the scanner.
2. Lift the paper stop and swing forward by inserting your fingertips
into the indentations on the scanner as shown in below figure.
Side guide
handle
Indentation
