Furuno FR-2105-B User Manual
Page 179
-10.19-
6
4
A
B
C
J811
J812

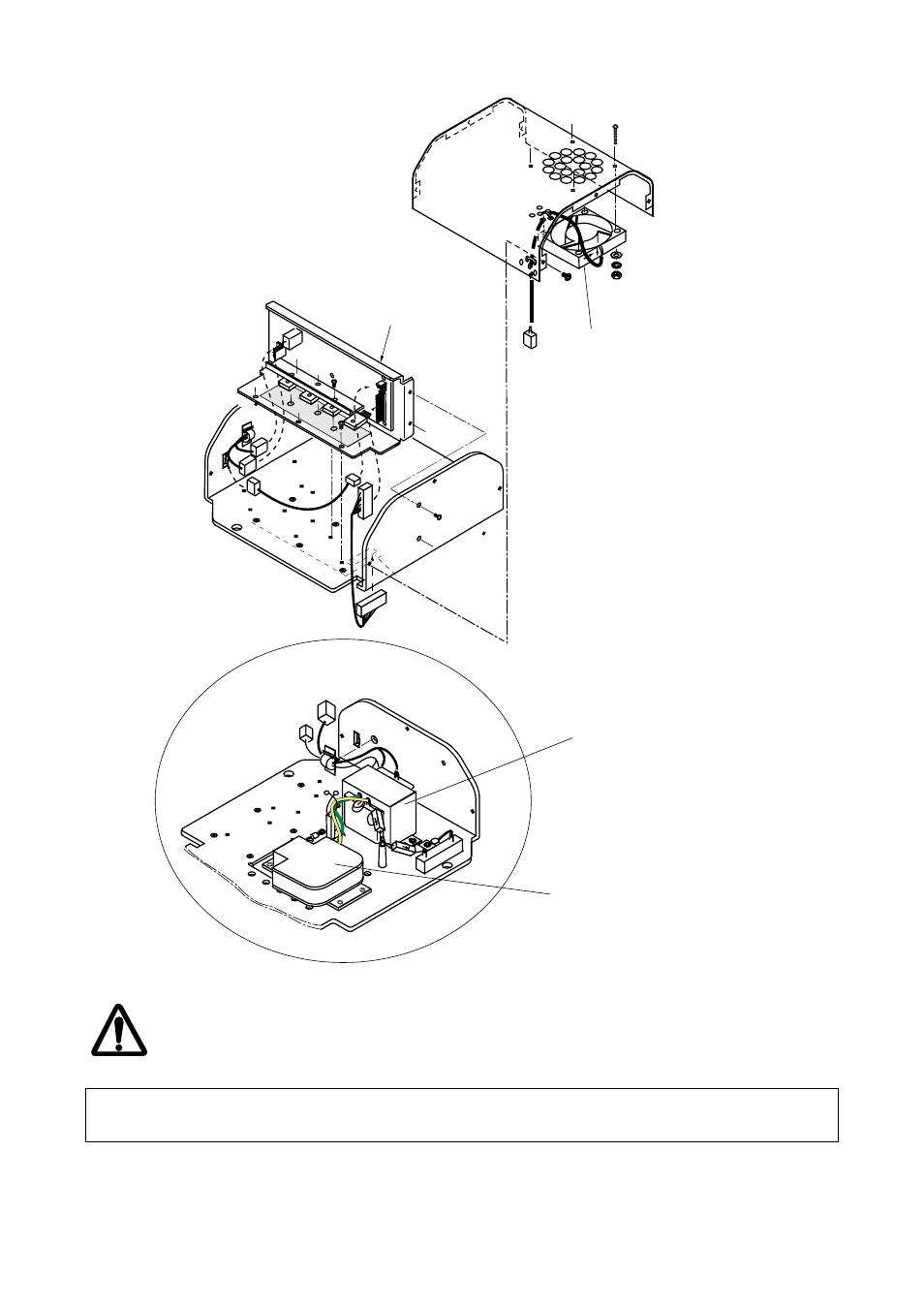

FAN MOTOR ASSY
03-1900
PULSE TRANSFORMER
RT-9025 for RTR-062
RT-9023 for RTR-063
MAGNETRON
MG5241 for RTR-062 (12 kW, X)
MG5436 for RTR-063 (25 kW, X)
View Point "A"
View Point "A"
RF
MODULE
A magnetron has strong magnetism. Do not bring a ferrous material in close contact with
it. Do not place the magnetron on a steel table.
For further information on parts location and how to replace components, refer to the Service
Manual which will be available at extra cost.
