WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.

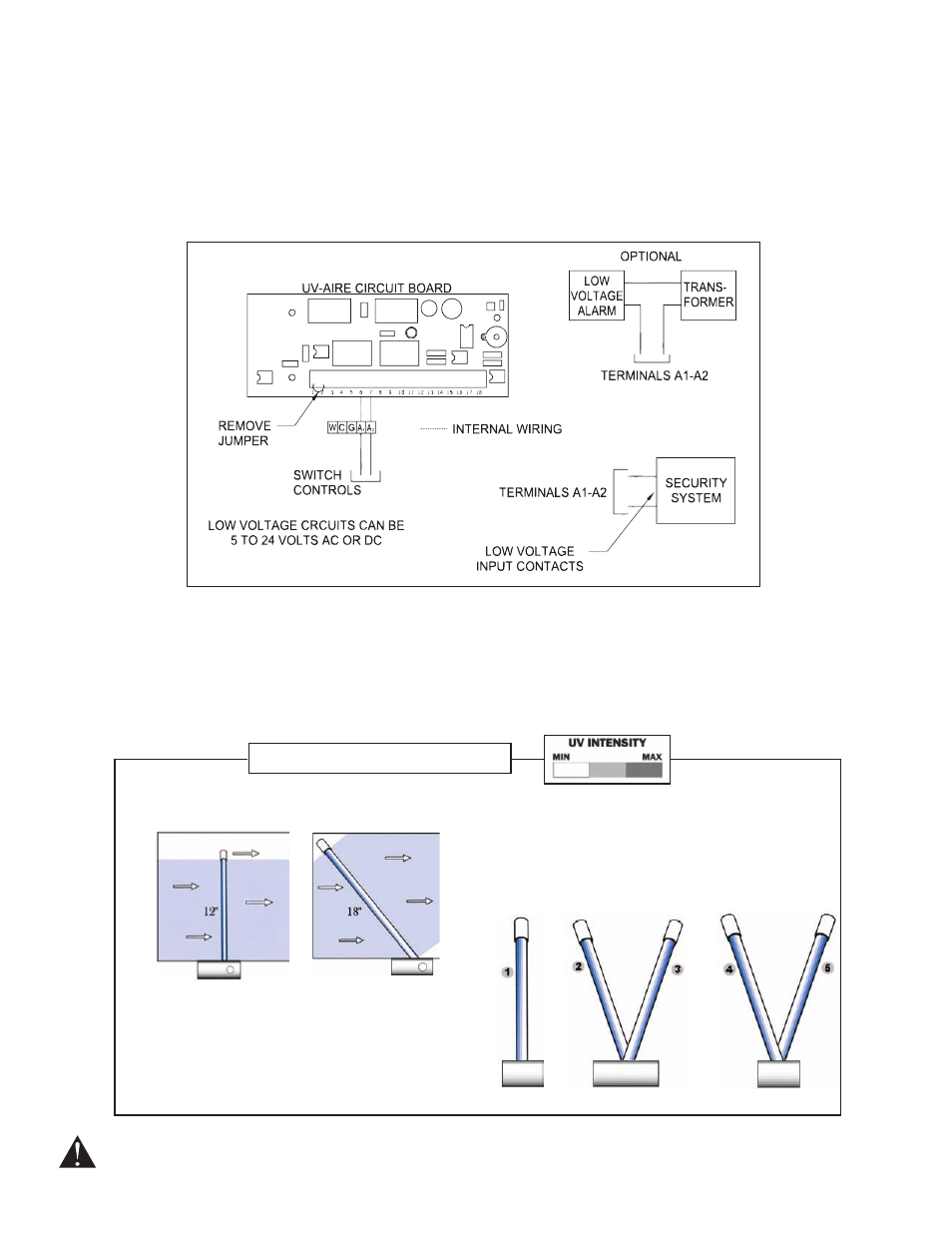

BULB MOUNTING BRACKET SELECTION
The UV-AIRE units come with an angled mounting bracket and flat mounting bracket to position the bulb either
straight or at an angle. Choose one or the other bracket method best suited for your needs. Refer to the
configurations chart below when making your selection.
Straight Angled Positions
Exclusive 5 Position Mounting
Best Good
UV-Aire Configurations
Standard 90º
Installation
(Flat Bracket)
(16” Duct)
Patent Pending
Angled Installation
Single Lamp
(Angled Bracket)
(16” Duct)
Diagram B
SYSTEM CHECK OUT PROCEDURE
Plug the UV Aire back into the power receptacle and leave the power switch in the OFF position. 1.
Unplug the Ballast connector from the lamp and switch the power switch to the ON position. The unit will 2.
start and operate for approximately 10 seconds. Then the LED will switch to a RED color and the alarm
contact will close.
Switch the power switch to the OFF position and reconnect the ballast connection to the lamp. Close the
3.
cover, secure with the cover screw, and switch the power switch to the ON position.
