WARNING:
Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11

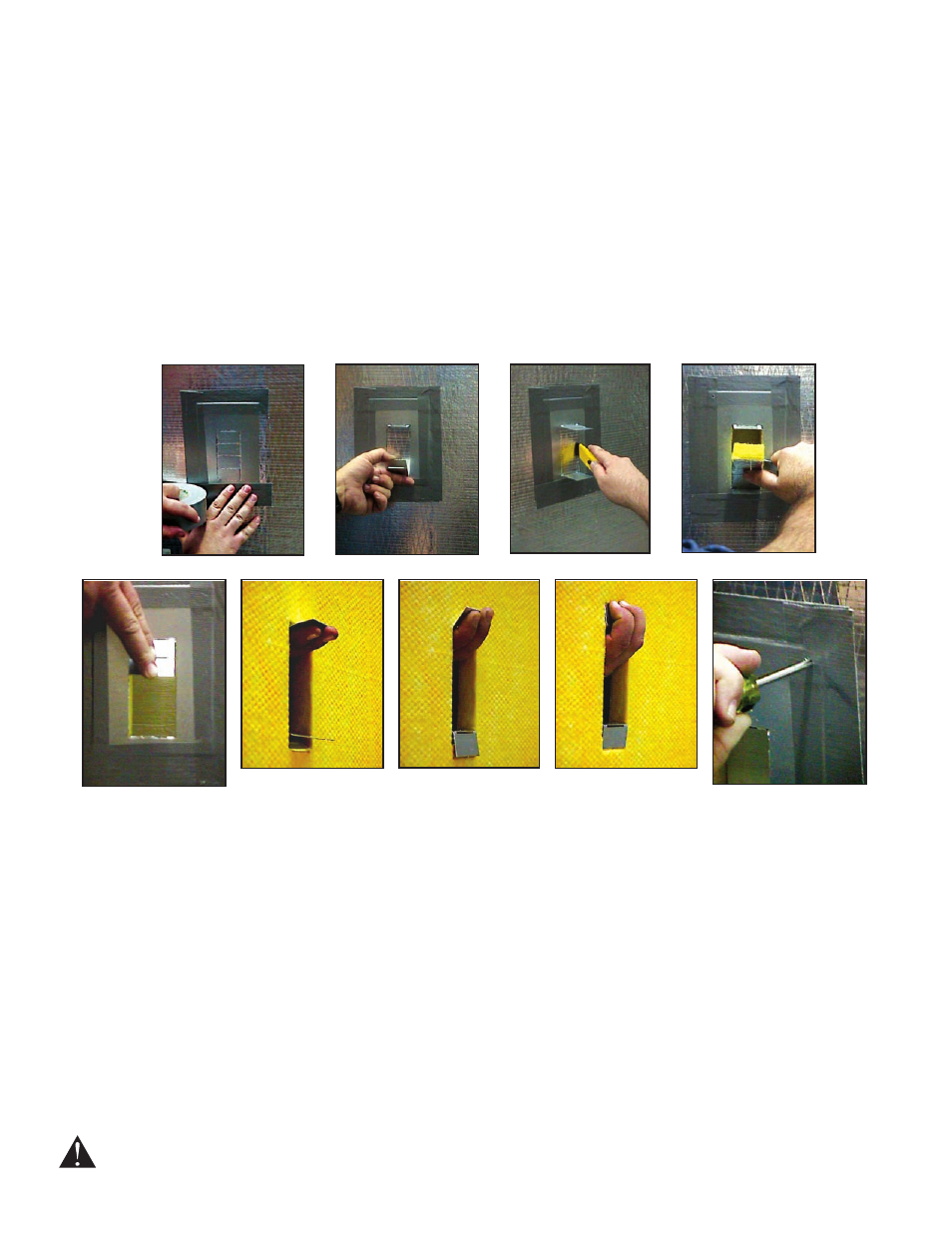

Mount the supplied metal mounting plate onto the duct with duct tape in either a vertical or
a.
horizontal position. (See Figures 2B & 3)
Bend tabs outward as shown in Figure 4.
b.
Using a knife or blade, cut out a rectangle opening in the duct using the mounting plate as a
c.
template. (See Figure 5)
Remove the cut piece of duct. (See Figure 6)
d.
Bend both tabs down and through duct at first bend point. (See Figures 7 & 8)
e.
Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct
f.
material. (See Figures 9 & 10)
Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape.
g.
(See Figure 11)
IF YOU HAVE DUCT BOARD:
