WARNING:
Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.

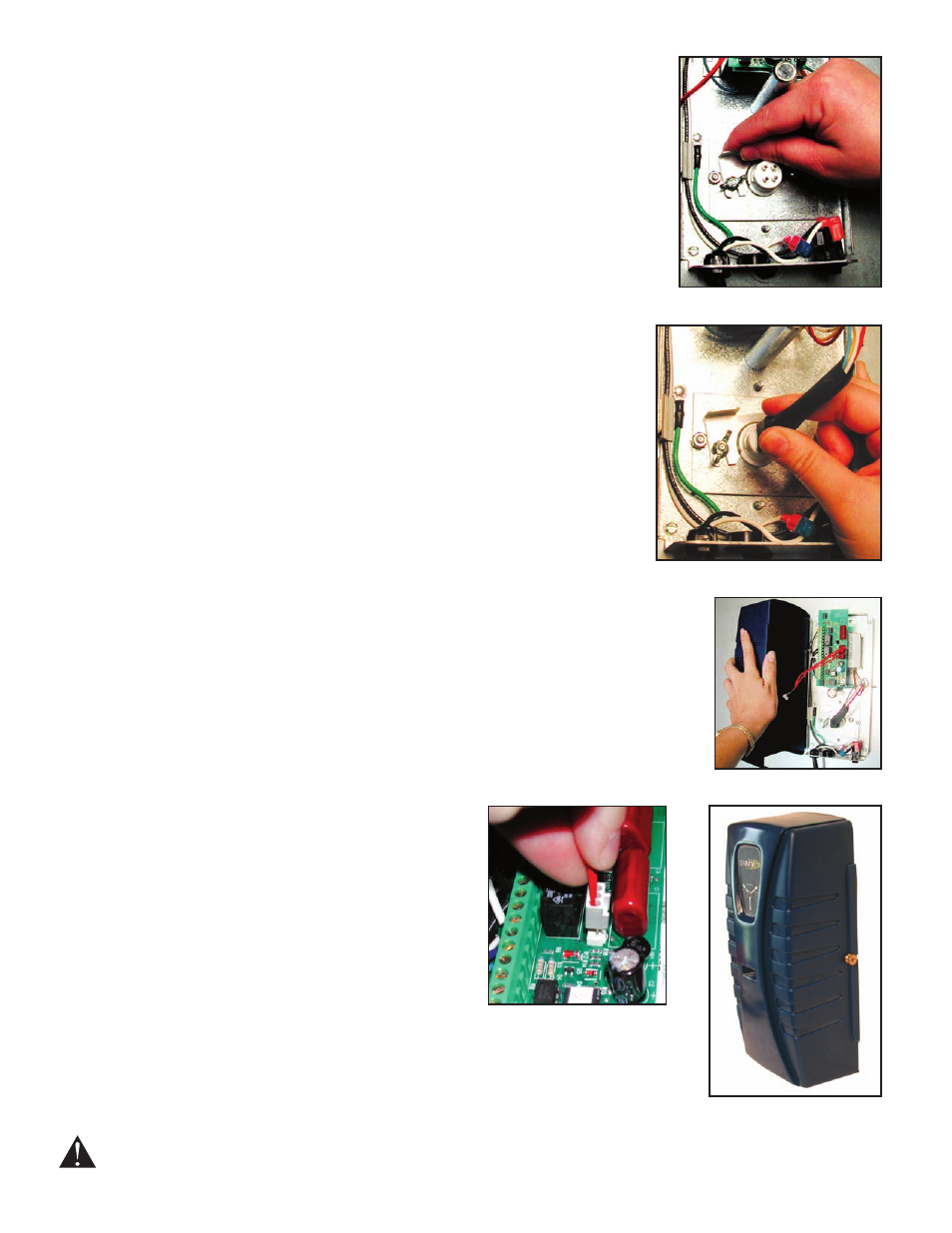

Swing the swivel bracket over the end of lamp. Hand-tighten the
9.
wing nut on the stud. Be careful not to over tighten the wing nut. The
porcelain at the lamp base may crack when over tightened.
(See Figure 17)
Plug ballast plug into end of lamp. (See Figure 18)
10.
Snap cover onto the unit base. (See Figure 19)
11.
Plug the LED wire from the cover onto the board. (See Figure 20)
12.
Close the cover and tighten cover screw. (See Figure 21)
13.
Plug the power cord into a standard electrical outlet.
14.
NOTE:
Seal the joints and seams of the plenum near the mounting location
to reduce any direct viewing of light. (See Figure 1)
Press the power switch to the ON position. (Light on switch should be
15.
on, indicating power.)
Look through view port in the box cover to be sure the lamp is working.
16.
You should see a blue glow. (The view port is covered with a plastic
lens that blocks the UVC rays.) If equipped, the LED light will show a
continuous GREEN color indicating proper unit operation.
If the lamp is not glowing, follow steps 8-14 again. If lamp still does
17.
not glow, contact technical support at 252-522-3031 for further
assistance.
Figure 21
Figure 20
Figure 19
Figure 18
Figure 17
