4.3 CAN
Connector
(X9, X10, X11)
Three 9-pin D-Sub male connectors are used for the CAN interfaces CAN0, CAN1 and
CAN2.

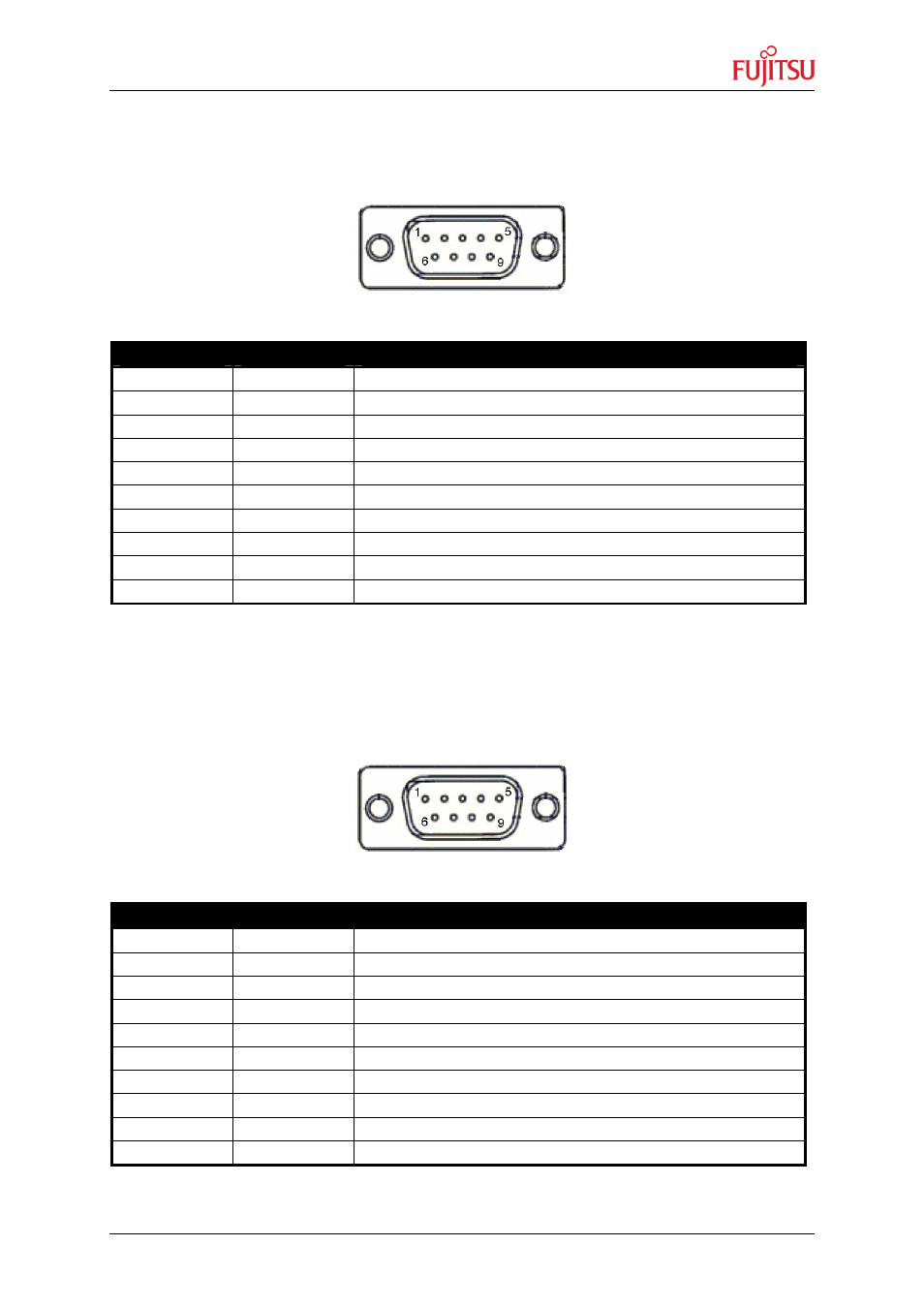

Figure 4-3: CAN Connector
Pin Number
Pin Signal
Description
1
NC Not
used
2
CANL
LOW-level CAN voltage input/output
3
GND Ground
4
NC Not
used
5
NC Not
used
6
NC Not
used
7
CANH HIGH-level
CAN
voltage
input/output
8
NC Not
used
9
NC Not
used
Shield GND
Ground
Table 4-2: CAN Connector Signals
4.4 FlexRay
Connector
(X2, X6)
Two 9-pin D-Sub male connectors are used for the two FlexRay channels A and B. As
default RS-485 is used at SK-91F467-FLEXRAY.
Figure 4-4: FlexRay Connector
Pin Number
Pin Signal
Description
1
NC Not
used
2
BM
Bus line Minus
3
GND Ground
4
NC Not
used
5
User
Connected to optional pin head (CH-A: J9; CH-B: J14)
6
NC Not
used
7
BP
Bus line Plus
8
NC Not
used
9
NC Not
used
Shield
Shield
Connected to shield of FT1080 modules
Table 4-3: FlexRay Connector Signals
