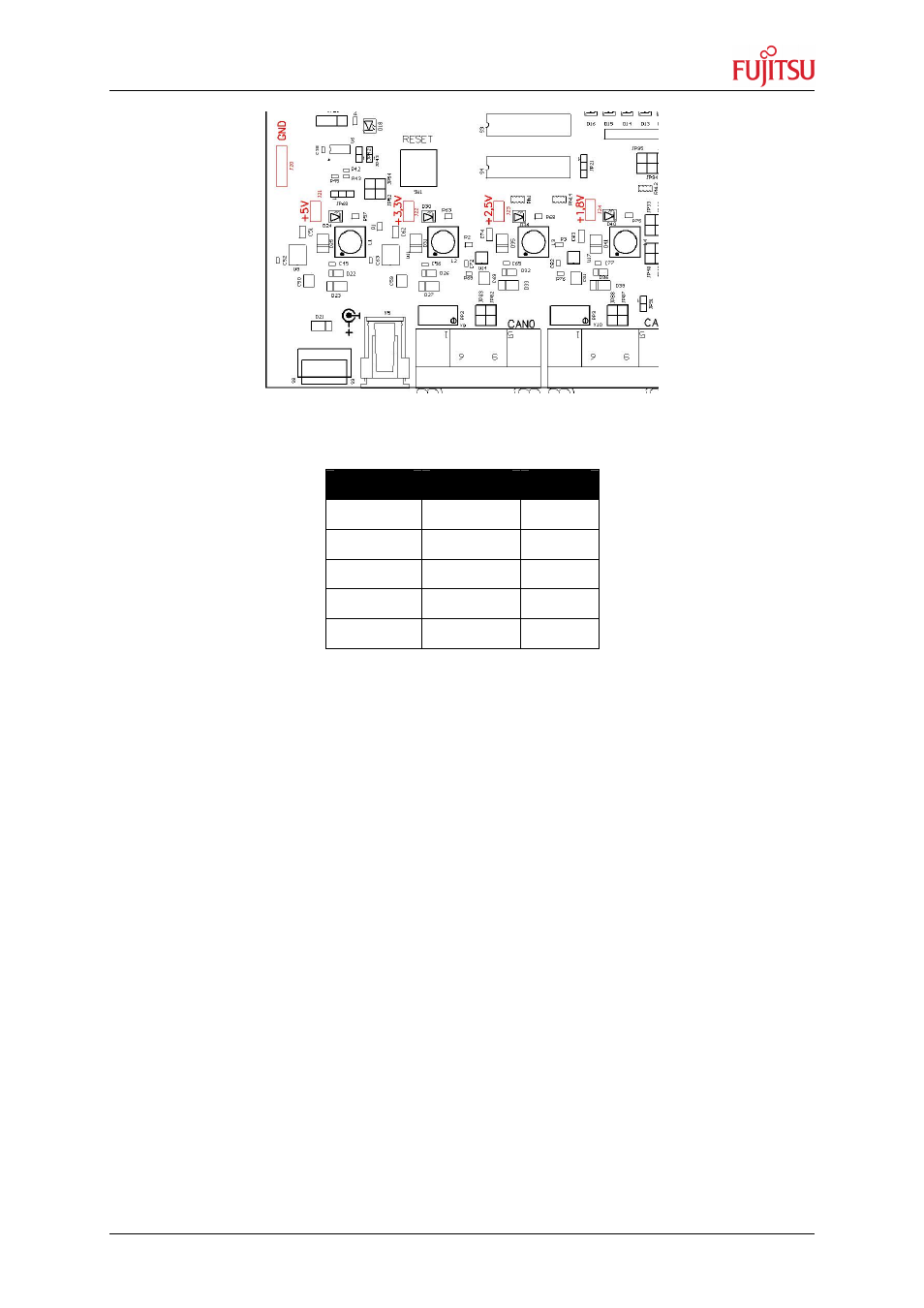

Figure 3-4: Voltage Test Points
Regulator Test point Voltage
U9 J21
+5V
U11 J22
+3.3V
U14 J23
+2.5V
U17 J24
+1.8V
-
J20 GND
Table 3-6: Voltage Test Points
