Fisher-Price TRAIL RAIDER R1502 - Manual (Page 13)

R1502b-0920

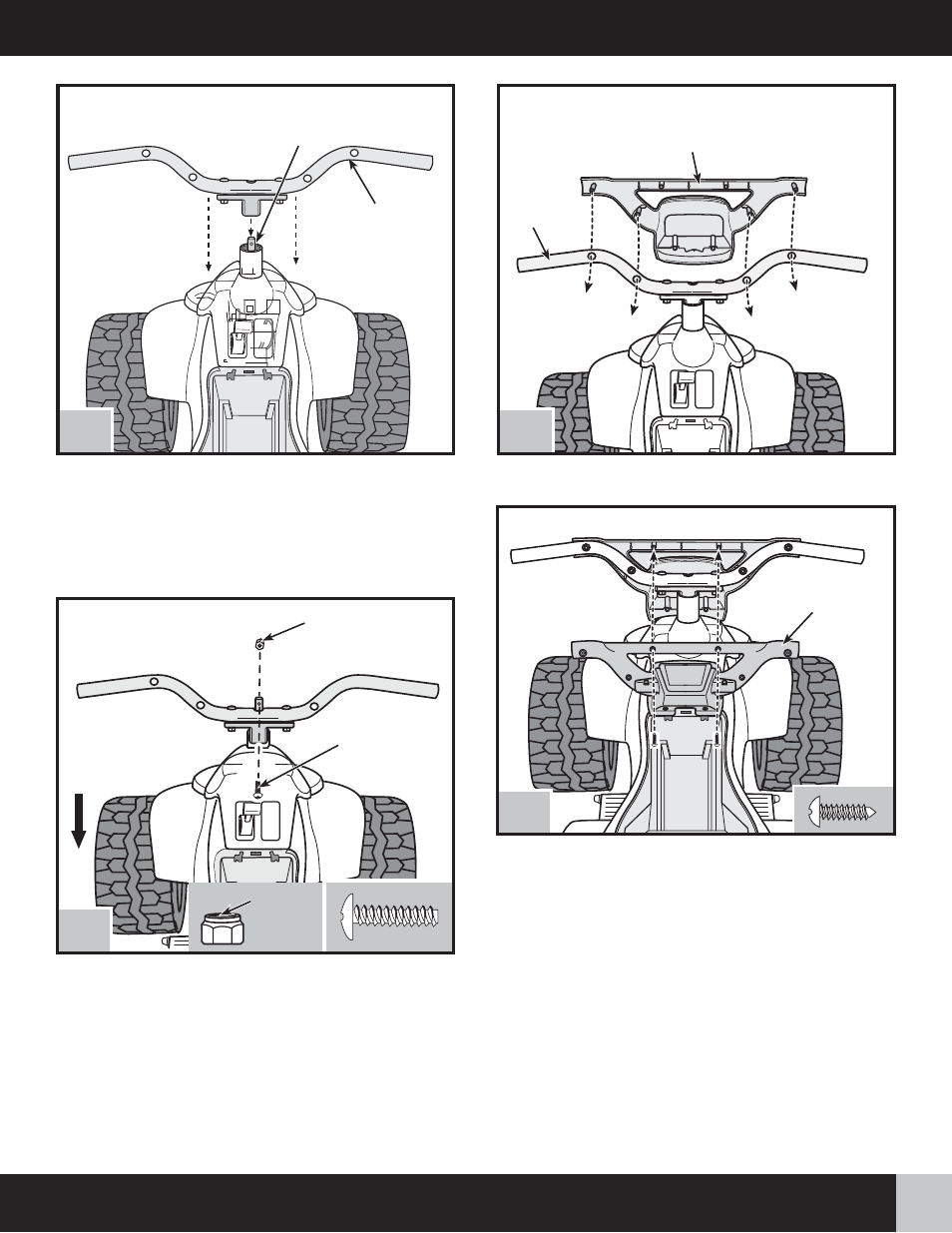

Hint: You may want the help of another adult to support the
steering column near the steering linkage while assembling the
handlebar to the vehicle.
• Fit the handlebar assembly onto the end of the steering
column. Make sure the handlebar grip area points towards the
rear of the vehicle.
• Now, fit the back handlebar cover to the front handlebar cover.
• Insert two #6 x
1 /
2
" screws into the two top, center holes in
the back handlebar assembly, as shown. Tighten the screws.
19
13
ASSEMBLY
R1502b-0920
Handlebar
Assembly
16
• Fit the front handlebar cover into the front of the handlebar.
18
17
• Insert the #10 x 3 /
4
” screw through the hole in the end of the
steering column, so that the screw head faces the rear of
the vehicle.
• Fit the #10 lock nut onto the end of the screw. Make sure the
rounded side of the lock nut faces forward.
• While holding the lock nut steady with an adjustable wrench
(or pliers), tighten the screw.
Steering
Column
Handlebar
Front
Handlebar
Cover
Back
Handlebar
Cover
Rear of
Vehicle
#10 Lock
Nut
Rounded
Side
#10 x 3 /
4
" Screw
