Assembly – Fisher-Price TRAIL RAIDER R1502 User Manual

Page 11

R1502b-0920

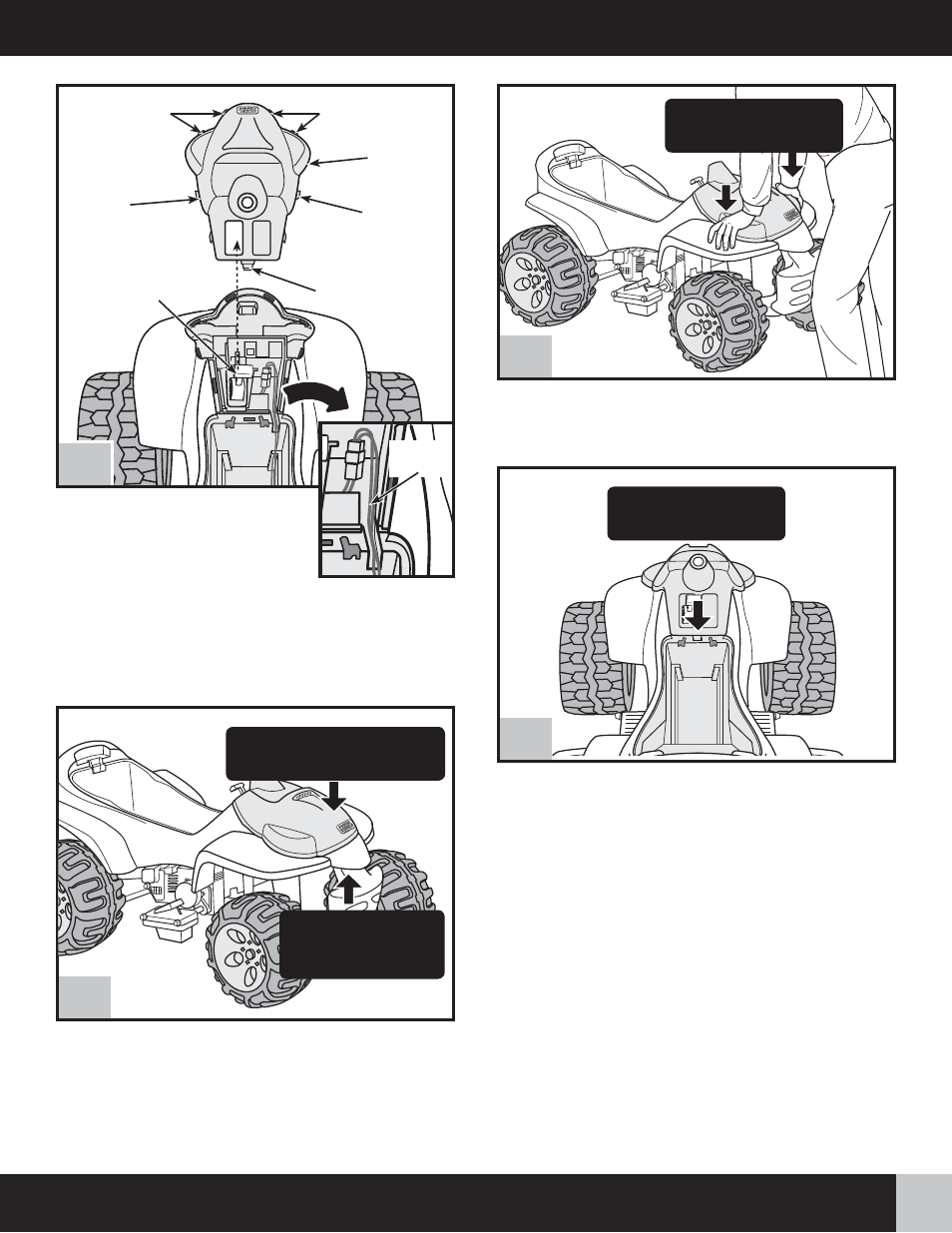

• Press firmly on the front of the cowling to snap the four, front

tabs into the slots in the vehicle. Make sure the side and rear
tabs stay aligned with the slots.

Note: Pull up on the front of the front end of the vehicle while
pressing down on the cowling to make sure the front tabs snap
into the slots.

ASSEMBLY

R1502b-0920

• Press the tab under the back of the

seat and lift to remove the seat.

• Make sure the motor harness wires are

positioned in the channel to prevent
them from being pinched between the
cowling and vehicle.

• Fit the rectangular opening in the cowling over the

shifter handle.

• Align the front, side and rear tabs on the cowling with the slots

in the vehicle. DO NOT snap the tabs into the slots.

PRESS COWLING HERE

To Snap Front Tabs

PULL VEHICLE BODY

UP HERE

To Snap Front Tabs

• Press firmly on each side of the cowling to snap the four side

tabs into the slots in the vehicle. Make sure the rear tab stays
aligned with the slot.

• Press firmly on the back of the cowling to snap the rear tab

into the slot in the vehicle.

PRESS HERE

To Snap Rear Tab

PRESS HERE

To Snap Side Tabs

Cowling

Shifter Handle

Side Tab

Rear Tab

Front Tabs

Motor
Harness
