Assembly 6 7 – Fisher-Price TRAIL RAIDER R1502 User Manual
Page 10
R1502b-0920

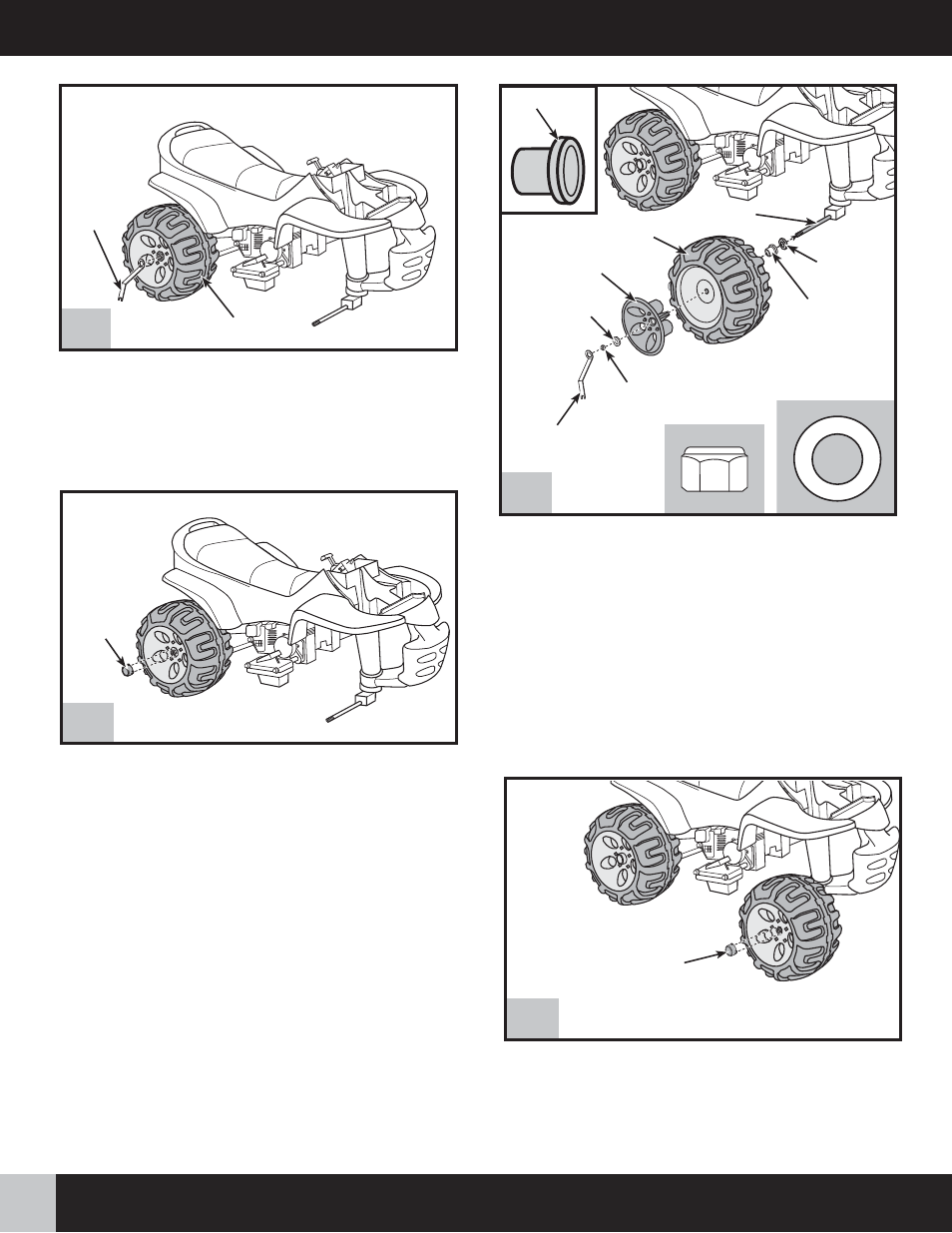

• Remove the protective caps from each front axle and throw
them away.
• Slide a
7
/
16
" washer onto one of the front axles.
• Slide a round bushing, ring end first, onto the front axle.
• Slide a wheel (ribbed side first) onto the front axle.
• Slide a hubcap (indented side out) onto the front axle.
• Slide a
7
/
16
" washer onto the front axle.
• Fit a
3
/
8
" -16 lock nut on the end of the front axle and tighten
with the assembly wrench.
• Repeat this procedure to assemble the remaining
7
/
16
" washers,
round bushing, wheel, hubcap and
3
/
8
" -16 lock nut to the other
front axle.
• Fit a hub cap cover onto each front wheel and push to
"snap" in place.
• Completely tighten the lock nut on the rear wheel assembly
with the assembly wrenches.
Hint: An extra wrench has been provided to hold the other lock
nut in place while tightening the lock nut on the other side.
You may need the help of another adult to hold the vehicle
•
while you tighten the lock nut.
• Fit a hub cap cover onto each rear wheel and push to "snap" in place.
4
5
10
ASSEMBLY
6
7
R1502b-0920
Hub Cap Cover
Hub Cap
Cover
Ring End
Assembly
Wrench
Wheel
Round
Bushing
7
/
16
"
Washer
Hubcap
Front Axle
7
/
16
"
Washer
Lock Nut
Rear Wheel
Assembly
Wrench
