R1502b-0920
15
14
13
12

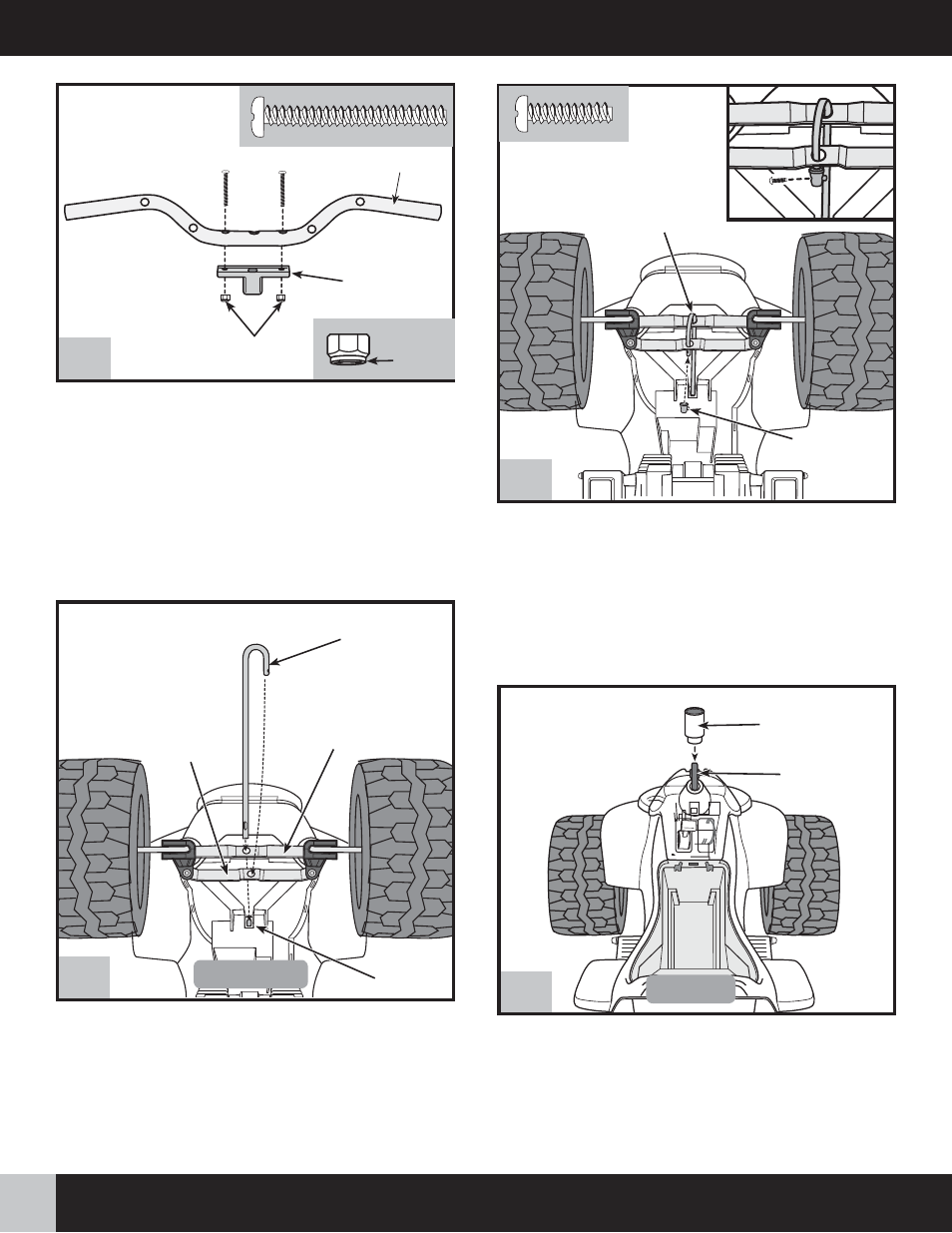

• Slide the steering bushing, narrow side down, onto the
steering column and into the vehicle neck.
• Fit the steering column cap on the curved end of the
steering column.
• While supporting the steering column, insert a #8 x 3 /
4
" screw
into the large hole in the steering column cap and tighten.
Hint: You may need the help of another adult to support the
other end of the steering column while you insert and tighten
the screw in the steering column cap.
• Lower the front end of the vehicle.
• Position the handlebar upright.
• Fit the handlebar neck to the bottom of the handlebar.
• Insert two #10 x 1
5 /
8
" screws down through the handlebar and
handlebar neck.
• Fit a #10 lock nut onto the ends of both screws. Make sure the
rounded side of the lock nut is down.
• While holding a lock nut steady with an adjustable wrench
(or pliers), tighten the screw. Repeat this procedure to tighten
the other screw.
• Set the handlebar assembly aside for assembly step 17.
12
ASSEMBLY
R1502b-0920
Rounded
Side
• Lift the front end of the vehicle.
• Slide the straight end of the steering column through the
hole in the upper steering linkage and out through the hole
in the vehicle.
• Insert the curved end of the steering column into the hole in
the lower steering linkage.
Steering
Column
Lower Steering
Linkage
Upper Steering
Linkage
Hole
Top View
Handlebar
Neck
Handlebar
Bottom View
#10 Lock Nuts
Steering
Column
Steering
Column
Steering Bushing
Steering
Column Cap
