GPS RECEIVER CHARACTERISTICS

1. Receiver type

Twelve discrete channels, C/A code,
all-in-view, Integral WAAS receiver processor

2. Receive frequency

L1 (1575.42 MHz)

3. Accuracy

GPS: 10 m (95%)
DGPS: 5 m (95%)
WAAS: 3 m (95%)

4. Time to first fix

12 seconds typical (Warm start)

5. Tracking velocity

999 knots

6. Geodetic system

WGS-84, NAD-27, and others

7. DGPS capability

GP-1850WD/1850WDF: DGPS beacon receiver built in
GP-1850W/1850WF:

External DGPS beacon receiver transmitting
data in RTCM SC104 v.2.1 format through
RS-232 interface or optional internal DGPS
beacon receiver

PLOTTER CHARACTERISTICS

1. Display

7 inch color LCD, 320 x 234 pixels

2. Map scale

0.125 to 2,048 nm

3. Latitude limits

Between 85°N and 85°S

4. Plot interval

1 s to 99 min 59 s or 0.01 to 9.99 nm

5. Display modes

Course plot, Nav Data, Steering Display,
Highway

6. Presentation modes

TM/RM North-up, Course-up

7. Memory capacity

Up to 5,000 points for ship's track points and
marks.
800 waypoints and 200 planned routes
(Max. 35 waypoints/route)

8. Voyage planning

Waypoint navigation or route navigation

9. Alarms

Arrival/anchor watch, XTE, proximity alert,
ship speed, depth*, water temperature*, fish*

*GP-1850WF/1850WDF —Temperature sensor required for water temp alarm.

10. Interface (NMEA 0183 ver. 1.5/2.0)

Outputs:
AAM, APB, BOD, BWC, GGA, GLL, RMA, RMB, RMC, VTG, WPL,
XTE, ZDA, DBT*, DPT*, MTW*, MSK
Inputs:
DBT*, DPT*, MTW*, TLL, YMWPL

(YEOMAN wpt data)

*GP-1850WF/1850WDF

11. Electronic chart

FURUNO MiniChart and
NAVIONICS

Nav-Chart



C-MAPNT Chart

ECHO SOUNDER

1. Display modes

Normal (single- or dual-frequency), Bottom-lock,
Bottom Zoom, Marker Zoom, A-scope

2. Frequency

50 and 200 kHz

3. Output power

600 W/1 kW (specify when ordering)

4. Basic ranges

8 basic ranges customized to max 1200 m
(4000 ft, 650 fa)

5. Range phasing

Up to 2400 m (8000 ft, 1300 fa)

ENVIRONMENTAL CONDITIONS

(IEC 60945 testing)

1. Temperature

Display unit:

-15°C to +55°C

Antenna unit:

-25°C to +70°C

2. Water resistance

Display unit:

IPX5 (IEC 60529), CFR46 (USCG)

Antenna unit:

IPX6 (IEC 60529), CFR46 (USCG)

POWER SUPPLY

12 - 24 VDC, GP-1850W/WD: 18.5 W, GP-1850WF/WDF: 16 W (600W),
20 W (1kW)

EQUIPMENT LIST

Standard
1. Display unit

1 unit

2. Antenna unit with10 m cable

1 unit

3. NMEA cable 5 m

1 pc

4. Installation materials and standard spare parts

1 set

Optional
1. FURUNO MiniChart card
2. Remote controller
3. NMEA cable 10 m
4. Antenna mounting base

13-QA330 (Pipe mount), 13-QA310 (Offset bracket), 13-RC5160 (Handrail mount)

5. Rectifier PR-62 for 115/230 VAC mains
6. Temperature sensor T-02MTB/T-02MSB/T-03MSB

(GP-1850WF/GP-

1850WDF)

7. Speed/temperature sensor ST-02MSB/ST-02PSB

(GP-1850WF/GP-

1850WDF)

8. Internal DGPS beacon receiver kit for GP-1850W/GP-1850WF
Transducers

(Specify when ordering GP-1850WF/1850WDF)

600 W

520-5PSD

(Plastic thru-hull),

520-5MSD

(Bronze thru-hull),

520-5PWD

(Plastic transom),

525ST-MSD

(Bronze thru-hull w/speed/temp sensor)

525ST-PWD

(Plastic transom w/speed/temp sensor)

1 kW

50/200-1T

(Optional matching box required)

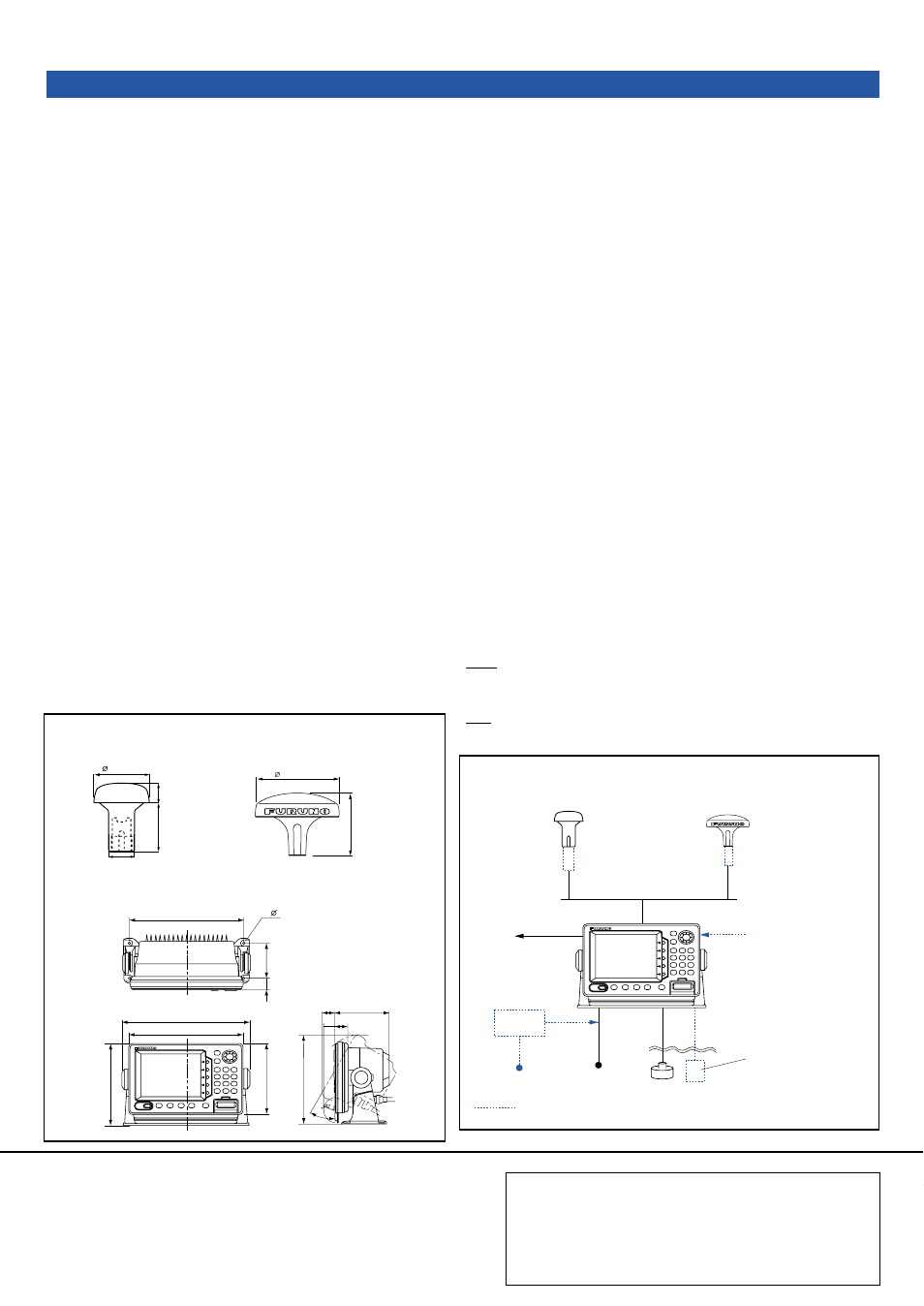

SPECIFICATIONS OF GP-1850W/1850WD/1850WF/1850WDF

02095T Printed in Japan

FURUNO U.S.A., INC.

Camas, Washington, U.S.A.
Phone: +1 360-834-9300 Telefax: +1 360-834-9400

FURUNO (UK) LIMITED

Denmead, Hampshire, U.K.
Phone: +44 2392-230303 Telefax: +44 2392-230101

FURUNO FRANCE S.A.

Bordeaux-Mérignac, France
Phone: +33 05 56 13 48 00 Telefax: +33 05 56 13 48 01

FURUNO ESPAÑA S.A.

Madrid, Spain
Phone: +34 91-725-90-88 Telefax: +34 91-725-98-97

FURUNO DANMARK AS

Hvidovre, Denmark
Phone: +45 36 77 45 00 Telefax: +45 36 77 45 01

FURUNO NORGE A/S

Ålesund, Norway
Phone: +47 70 102950 Telefax: +47 70 127021

FURUNO SVERIGE AB

Västra Frölunda, Sweden
Phone: +46 31-7098940 Telefax: +46 31-497093

FURUNO SUOMI OY

Helsinki, Finland
Phone: +358 9 3417570 Telefax: +358 9 341 5716

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

10 m

Optional

antenna base

12 to 24 VDC

Antenna unit

GPA-017

Display unit

Optional

GGA,
GLL, etc.

Rectifier

PR-62

115/230 VAC

NMEA in/out

DGPS
Beacon receiver

(GP-1850W/GP-1850WF)

Transducer

(For GP-1850WF/GP-1850WDF)

(Specify when ordering)

Temperature Sensor
T-02MTB/T-03MSB

Speed/temperature sensor
ST-02MSB/ST-02PSB
(GP-1850WF/GP-1850WDF)

(For GP-1850W/GP-1850WF)

(For GP-1850WD/GP-1850WDF)

10 m

Antenna unit

GPA-019

Optional

antenna base

DISPLAY UNIT

GPS ANTENNA

INTERCONNECTION DIAGRAM

259 10.2"

260 10.2"

190 7.5"

165 6.5"

18 0.7"

4- 6

MAX203 8.0"

1.2"

131 5.2"

30 1.2"

286 11.3"

3.4"

32 1.3"

24 0.9"

61 2.4"

69 2.7"

DGPS ANTENNA

0.15 kg 0.3 lb

GPA-017

GP-1850W/1850WD:
3.1 kg, 7.3 lb

GP-1850WF/1850WDF:
3.3 kg, 6.8 lb

116 4.6"

156 6.1"

GPA-019

1.0 kg 2.2 lb
