Page 14
4
Hex. Bolts
Fixing Metal

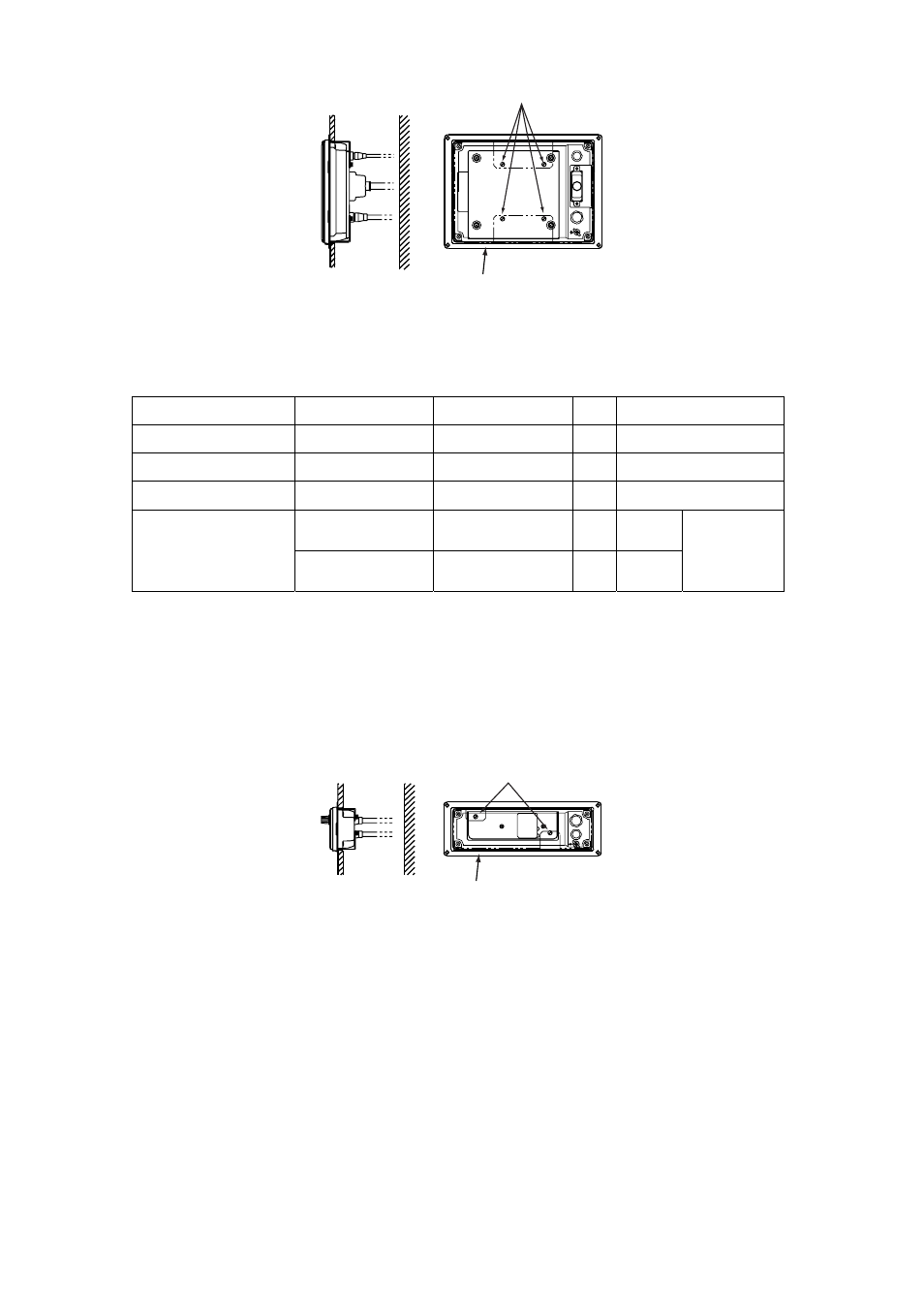

Flush mounting for control unit Type:
OP02-83-1.5, Code no.: 001-413-600 (1.5 m cable)
OP03-83-5, Code no.: 001-413-610 (5m cable)
Name Type
Code
No.
Qty
Remarks
Fixing metal
06-021-2101-2
100-279-732-10
1
Self-tapping screw 5x20
000-162-609-10
4
Hex. bolt
M4x12
000-162-939-10
2
MJ-A10SPF0002-0
15
000-142-878 1
1.5
m
Cable assembly
MJ-A10SPF0002-0
50
000-131-411 1
5
m
Select one.
1. Make holes at the place to mount (W287 x H87).
2. Fasten the fixing metal to the control unit with two hex. bolts (supplied as option).
3. Fasten the fixing metal assembled at step 2 to holes made at step 1 with four tapping
screws (supplied as option).
Hex. Bolts
Fixing metal
1.1.3 Blackbox
type
The blackbox type is required to connect a standard VGA monitor via the interface unit IF-8000.
Supply monitor and interconnection cable (Max. length 15 m with Dsub-15P connectors of male,
three rows of 15 pins) locally. The monitor used should satisfy the specifications shown below.
•
VGA type
•
ANALOG RGB 0.7 Vpp, positive polarity
•
TLL level H, V, Negative polarity
