19

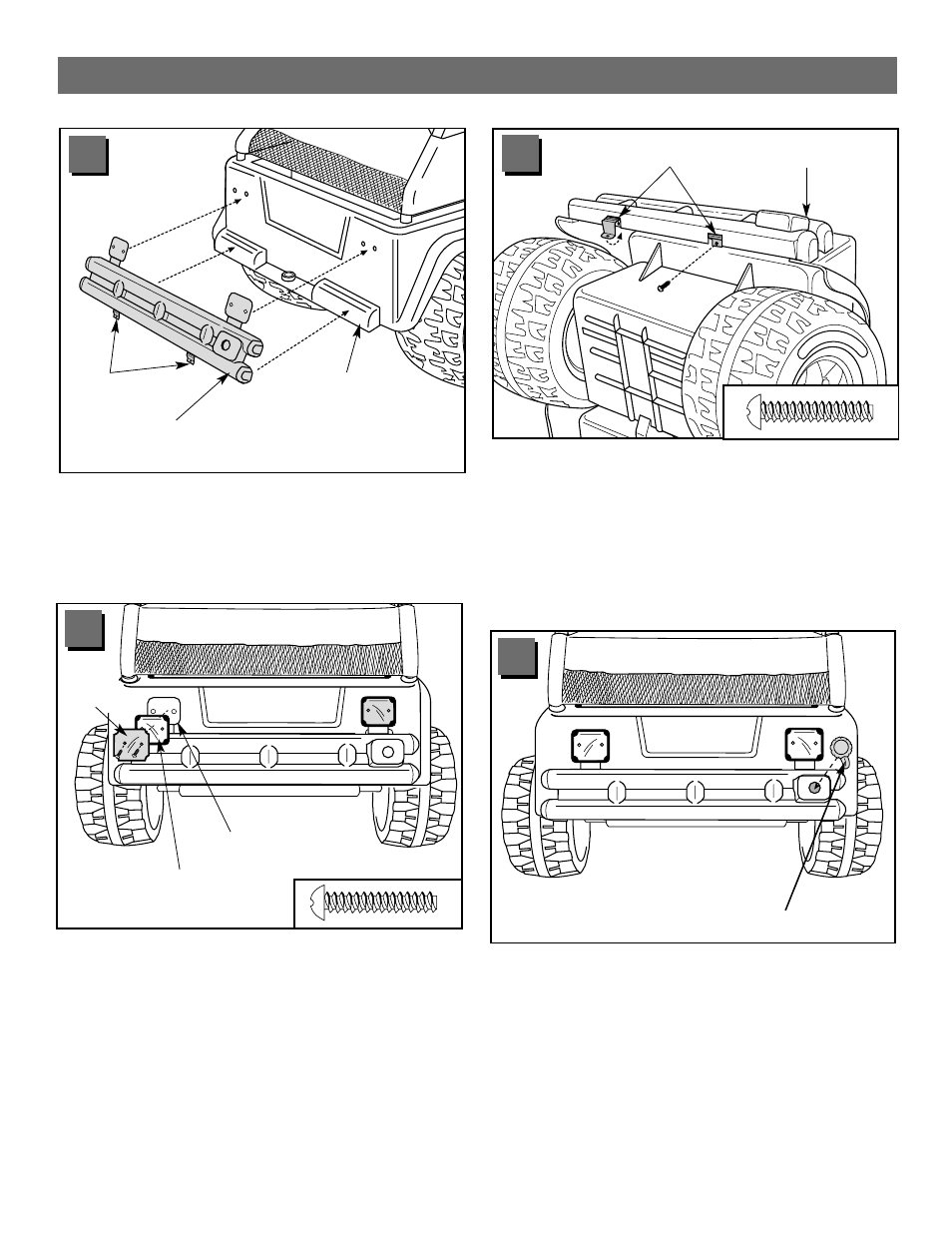

Assembly
37
Rear Bumper
Support Tabs
• Turn the vehicle upright. Face the rear of the vehicle.
• Fit the lower rail on the rear bumper over the rear
bumper supports.
• Gently bend the tabs at the bottom of the rear bumper
under the vehicle.
Rear Bumper
Lower Rail
Taillight
Lens
Taillight
Housing
Rear Bumper Light Plate
• Using safety scissors, remove the taillight lenses and the
taillight housings from the plastic connectors. Dispose of
the plastic connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against a rear
bumper light plate with the screw holes aligned.
• Insert two #8 x 1" screws through the taillight lens, rear
bumper light plate housing and into the vehicle body.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
• Repeat this procedure to attach the other taillight.
38
• Lift the rear of the vehicle.
• Align the holes in the rear bumper tabs with the screw
pegs on the underside of the vehicle.
• Insert two #8 x 1" screws through the bumper tabs and
into the vehicle.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
• Lower the rear of the vehicle.
Bumper Tabs
Rear
Bumper
39
• Position the gas cap so that its tether points down.
• Snap the gas cap into the hole under the right taillight.
Gas Cap Tether
40
