14

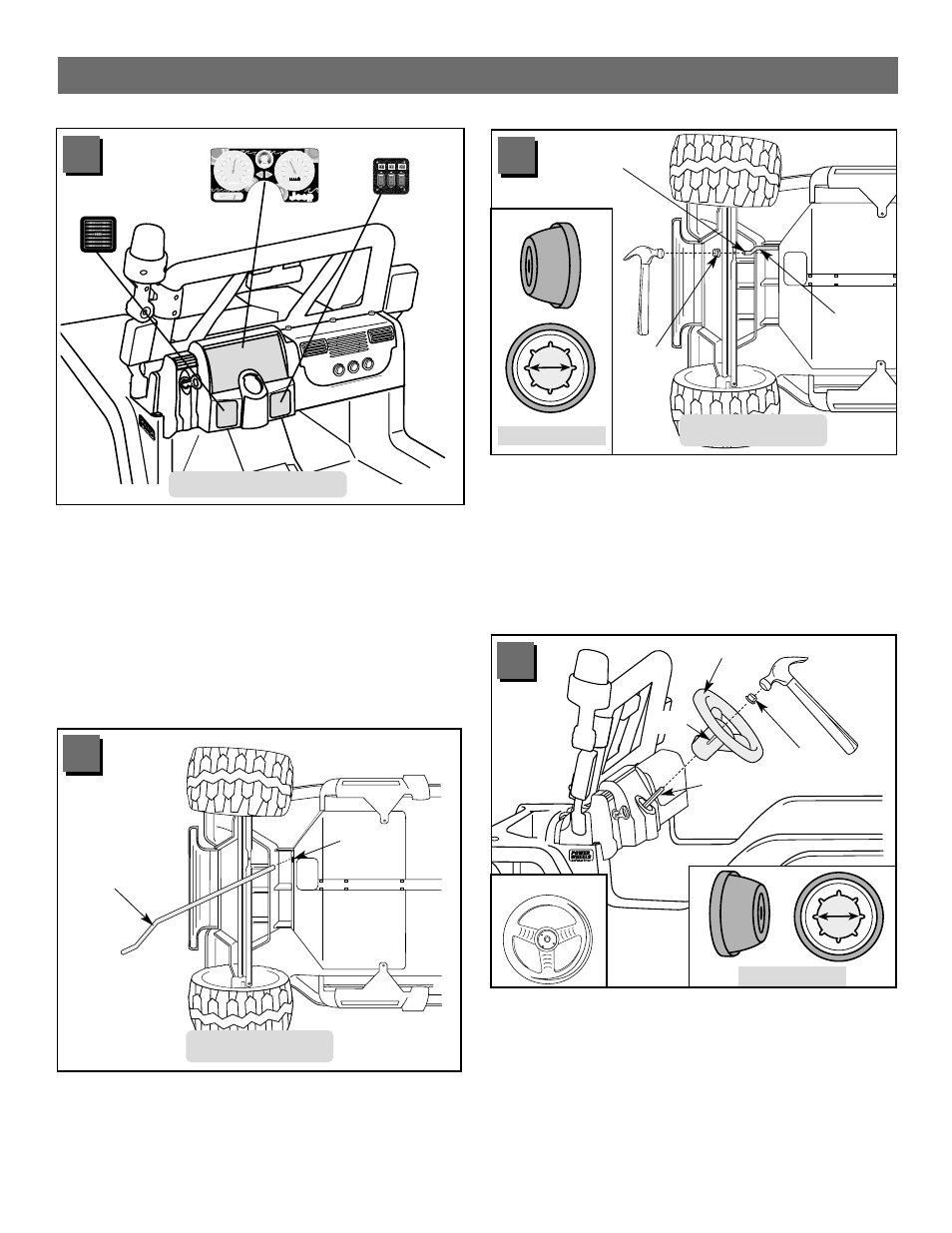

Proper label application will help to keep the labels
looking their best! When applying labels, keep the
following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle
with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has
been applied to the vehicle.
Steering
Column
Hole
Bottom View
• Wipe the steering column with a paper towel to remove
any excess lubricant.
• Turn the vehicle on its side.
• Insert the straight end of the steering column up
through the hole in the vehicle body wall and out
through the hole in the dash.
Assembly
16
17
• Insert the end of the steering column through the hole
in the steering rod.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column, tap the cap nut
with a hammer to secure it on the steering column.
Hint: You may want the help of another person to
support the steering column while you tap the cap nut
with the hammer.
Steering
Rod
Cap Nut
End of
Steering
Column
Bottom View
18
.354"
.354 Cap Nut
E F 1/2
HI LO KC
16
17
Labels - Dash View
• Turn the vehicle upright.
• Position the steering wheel so that the spokes form a
“Y” as shown. The tab on the steering wheel stem should
face up.
• Fit the steering wheel onto the steering column.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the
steering column.
Hint: You may want the help of another person to support the
steering column while you tap the cap nut with the hammer.
Steering Wheel
Cap
Nut
Steering
Column
“UP”
Tab
19
.354"
.354 Cap Nut
19
