15

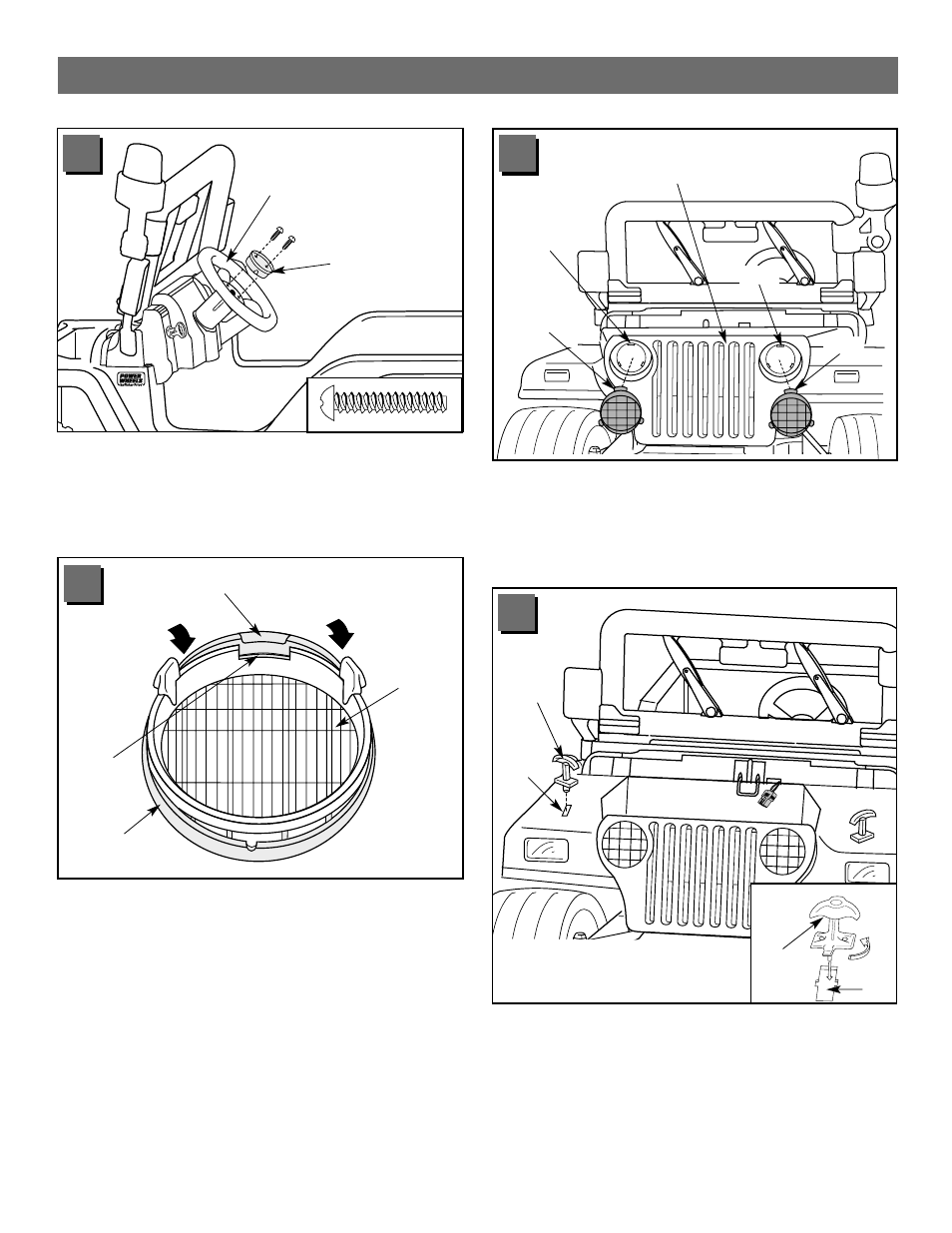

• Fit the wide notch in the side of a headlight lens under
the wide tab on a lens guard.
• Press firmly on the inside of the headlight lens to snap it
into the lens guard.
• Repeat this procedure to assemble the other headlight
lens to the remaining lens guard.
Lens
Wide
Notch
Wide Tab
Lens Guard
Assembly
• Fit the lens tabs on the back of a lens assembly into the
headlight slots in the grille.
• Press firmly to snap the lens assembly into the grille.
• Repeat this procedure to snap the other lens assembly
into the grille.
Grille
Tab
Tab
Slot
Slot
• Insert a hood latch into one of the slots in the vehicle
body, near the hood area.
• Twist the base of the hood latch 1 /
4
turn to secure it in
the vehicle body.
• Repeat this procedure on the other side of the hood
area to attach the other hood latch to the vehicle body.
Hood
Latch
Hole
Hood
Latch
Slot
21
22
23
Steering Wheel
• Fit the steering wheel cap into the center of the
steering wheel.
• Insert two #8 x 1" screws, as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Steering
Wheel Cap
20
