12

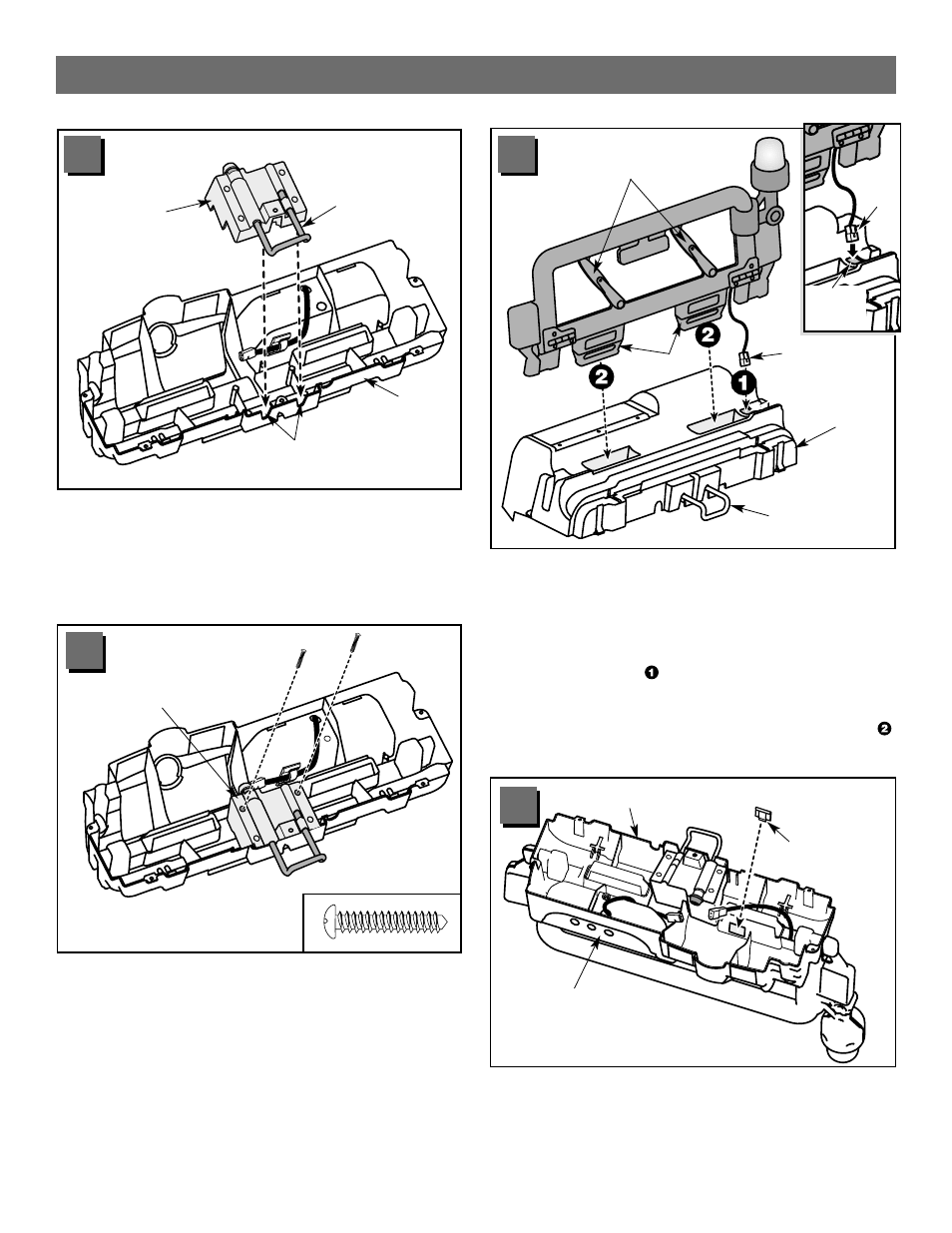

Assembly
Battery
Clamp
Unit
Dash
Light Wire
IMPORTANT! The battery clamp unit must be
assembled to the dash before assembling the dash
to the vehicle body.
• Fit the battery clamp unit into the dash so that the clamp
fits into the grooves in the dash. Make sure the battery
clamp unit is flush against the surface of the dash.
Battery
Clamp Unit
• Insert two #10 x 1" screws through the holes in the
battery clamp unit and into the pegs in the dash.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Clamp
Grooves
8
9
Windshield Wipers
Large Tabs
Battery
Clamp
Dash
10
Dash
Sound and Light
Unit Buttons
• Turn the assembly over so that the sound and light unit
buttons are toward you.
• Remove the backing from the remaining wire clip. Throw
the backing away.
• Press the wire clip into place, as shown, on the dash.
IMPORTANT! The wire clip should open down.
Wire Clip
Opens Down
11
IMPORTANT! Please follow this assembly step carefully!
If you do not fit the light wire down through the small,
square opening in the dash, the light will not work.
• Position the windshield so that the wipers are above
the battery clamp on the dash.
• Feed the light wire down through the small square
opening in the dash .
• Check to be sure the light wire is inserted through the small
square opening. Then, insert and “snap” the two large
tabs on the windshield into the large slots in the dash
.
• Pull up on the windshield to be sure it is secure.
Light
Wire
Small
Square
Opening
